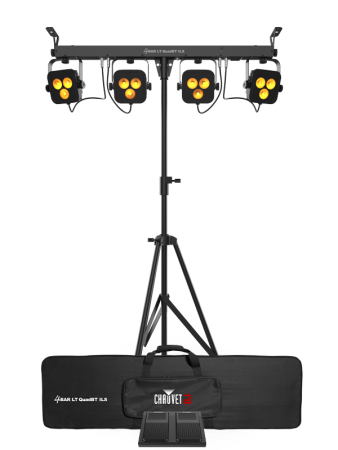

4BAR Quad ILS is a complete wash lighting solution fitted with high-intensity quad-color (RGBA) LEDs that can be controlled wirelessly out of the box via the included footswitch or optional IRC-6 controller. But for real convenient control, compatibility with the Integrated Lighting System (ILS) that makes creating coordinated light shows across an unlimited number of different fixture types easy and fast means control is easier than ever. Generate natural, warm color temperatures with punchy amber and achieve total area coverage by individually positioning the 4 adjustable pods. 4BAR Quad ILS is compatible with D-Fi USB for wireless Master/Slave or DMX programming. A convenient tripod and carry bag are included for effortless setup and quick tear down. 4BAR Quad ILS safely attaches to truss with built-in bolts, easily increasing mounting options.
FEATURES:
Complete wash lighting solution with built-in Bluetooth® wireless technology
Control directly from a smart phone or tablet without any additional hardware
ILS compatibility for use in the ILS ecosystem
D-Fi USB compatibility for wireless master/slave or DMX control
Generate a broad spectrum of colors and achieve natural-looking color temperatures with punchy amber LEDs
Easily set up and tear down in seconds with the included tripod, carry bags and footswitch
Create large, coordinated light shows with other 4BAR fixtures in master/slave mode
Achieve total room or stage coverage with 4 individually adjustable heads
Out of the box wireless control with included footswitch or optional IRC-6 controller
Sound-activated programs dance to the beat of the music
SPECIFICATIONS:
DMX Channels:4, 6 or 19DMX Connectors:3-pin XLRMax Unobstructed Distance:150 ft (25.7 m)Light Source:12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancyBeam Angle:12°Field Angle:21°Operating Frequency:2.4 GHzIlluminance:2,162 lux @ 2 m (per pod)Power and Current:
46 W, 0.6 A @ 120 V, 60 Hz
44 W, 0.3 A @ 230 V, 50 HzWeight:7.2 lb (3.3 kg)Size:36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)Approvals:CE, FCC, RoHS, UKCAStand Height: 50-83 in (127-211 cm)Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Fits Tripod Sizes: 1 in (25.4 mm)Optional Controllers: IRC-6, BTAirBluetooth Version: 4.2
Specifications
DMX Channels:4, 6 or 19
DMX Connectors:3-pin XLR
Max Unobstructed Distance:150 ft (25.7 m)
Light Source:12 LEDs (quad-color RGBA) 4 W, (2 A), 50,000 hours life expectancy
Beam Angle:12°Field Angle:21°
Operating Frequency:2.4 GHz
Illuminance:2,162 lux @ 2 m (per pod)
Power and Current:
46 W, 0.6 A @ 120 V, 60 Hz
44 W, 0.3 A @ 230 V, 50 Hz
Weight:7.2 lb (3.3 kg)
Size:36.1 x 3.7 x 10.8 in (918.1 x 95 x 274.3 mm)
Approvals:CE, FCC, RoHS, UKCA
Stand Height: 50-83 in (127-211 cm)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Fits Tripod Sizes: 1 in (25.4 mm)
Optional Controllers: IRC-6, BTAir
Bluetooth Version: 4.2
WHAT'S INCLUDED
4Bar LT QuadBT ILS
Power cord
Carrying bag
Tripod
FootswitchL- bracket
Quick Reference Guide
Chauvet 4BAR LT Quad BT ILS
(Chauvet DJ 4 BAR LT Quad BT ILS)
