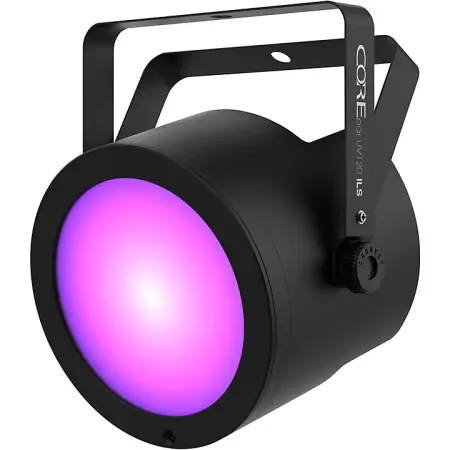

Mobile entertainers and lighting technicians in need of a UV wash light will be impressed with the CHAUVET DJ COREpar UV120 ILS, a low-profile LED PAR that's powered by a 120W ultraviolet COB LED that generates remarkably bright UV light, well suited for clubs, bars, concerts, special events, parties, and more. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly. The COREpar UV120 ILS features Sound Active and Auto programs. The fixture is flicker free, making a great choice for on-camera work, and it is equipped with a universal, auto-sensing power supply, which is compatible with the IRC-6 wireless remote (available separately) and D-Fi USB (available separately) for wireless primary/secondary and DMX applications.
Compact ultrawide UV wash with COB (Chip-on-Board) technology
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
D-Fi USB compatibility for wireless primary/secondary or DMX control

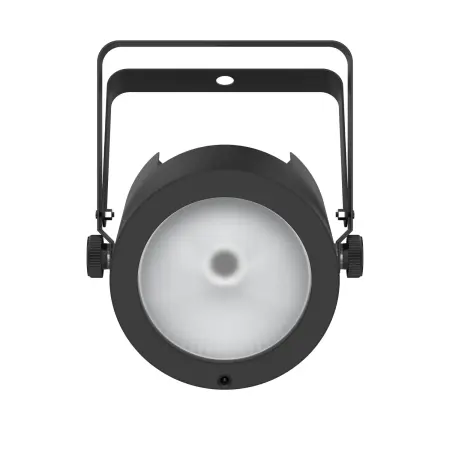

Included magnetic fresnel lens allows the beam to go from ultrawide to narrow in seconds
Withstand the harshness of traveling from gig to gig with a robust housing

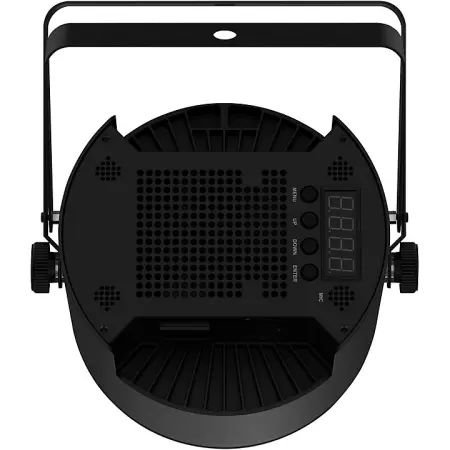

Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit
Achieve flicker-free video operation with high-frequency LED dimming
Save time running cables and extension cords by power linking multiple units
Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote
Create customized colors using the built-in LED display
Achieve smooth LED fading with built-in dimming curves
Easily transports in the optional CHS-40 VIP Gear Bag
FEATURES:
Integrated Lighting System (ILS)
Generate a Bright UV Light
DMX and Power-Linking Capable
D-Fi USB Compatibility for Wireless DMX
SPECIFICATIONS:
Light
Light Type PAR
Light Source 1 x Ultraviolet LED (COB) - 120 W / 3.34 A
Light Source Life Expectancy 50,000 Hours
Colors Ultraviolet
Beam Angle 44°
21° (with Installed Lens)
Field Angle 94°
34° (with Installed Lens)
Shutter / Strobe Electronic
Dimming Electronic, 0 to 100%
Performance
Operating Modes DMX, Primary/Secondary, Sound-Active
Macros / Programs None
Effects Strobe
Strobe Rate 0 to 20 Hz
Gobos None
Control
Control Protocols DMX512
DMX Channel Modes 2 Mode(s):
1 / 5-Channel
Remote Control D-Fi USB, IR Remote (with Optional Equipment)
App Compatible No
Connectivity
Inputs/Outputs 1 x XLR 3-Pin DMX Input
1 x XLR 3-Pin DMX Output
1 x USB Type-A Remote Input
Power
AC Input Power 100 to 240 VAC, 50/60 Hz
AC Power Connector Input: 1 x IEC
Output: 1 x Edison
Power / Current Consumption 120 VAC: 119 W / 1.5 A
230 VAC: 118 W / 0.9 A
Power Linking 5 Units at 120 VAC
9 Units at 230 VAC
Environmental
IP Rating None
Physical
Mounting Dual/Scissor Yoke
Included Accessories 1 x Power Cable
Duty Cycle None
Exterior Color Black
Certifications CE, RoHS,
*as per Manufacturer
Dimensions 9 x 8.9 x 7.3" / 22.8 x 22.5 x 18.5 cm
Weight 4.6 lb / 2.1 kg
