Chauvet DJ GigBAR Move ILS

5-in-1 Lighting System with Moving Heads

$1,099.99 In Stock!
$0 Tax $0 Shipping $205 Back or Join VIP for upfront discounts.

(more)

All-in-One ILS-Enabled DJ Lighting System

The Chauvet DJ GigBAR Move ILS is a complete 5-in-1 lighting rig designed to deliver fully coordinated, high-impact light shows right out of the box. Featuring moving heads, derbies, washes, a laser, and strobes all pre-mounted to a single bar, this all-in-one system offers fast setup, versatile control, and seamless integration with the ILS (Integrated Lighting System) ecosystem.

Chauvet DJ GigBAR Move ILS Competitive Differences

  • Includes two moving heads, derbies, washes, a laser, and strobes on one bar
  • Wireless control via RF remote and footswitch with ILS ecosystem support

Chauvet DJ GigBAR Move ILS Description

The GigBAR Move ILS is a powerful, plug-and-play lighting system perfect for DJs, mobile performers, and event setups that need maximum visual impact with minimal effort. It includes five lighting effects—LED moving heads, RGB+UV wash pars, derby effects, strobe lights, and a red/green laser—giving you everything you need in a single, compact fixture. Thanks to its compatibility with Chauvet DJ’s ILS technology, this system can wirelessly control and sync with any ILS-enabled fixture in your rig, eliminating the need for complicated DMX programming. The built-in RF receiver lets you control the system using the included remote or wireless footswitch from up to 100 feet away—without line-of-sight. The full-color LCD display also allows direct access to built-in programs and system settings. Each effect can be controlled individually, enabling complex shows with smooth transitions, gobo changes, prism effects, and more. Totem Mode ensures the moving heads always stay focused on the crowd. With fast setup via the included tripod and carry bag, the GigBAR Move ILS is ideal for weddings, parties, and mobile DJ gigs.

Model Features

  • 5-in-1 lighting bar: moving heads, derbies, washes, strobes, and laser
  • ILS-compatible for synchronized wireless control of ILS fixtures
  • Built-in RF receiver with included RF remote and footswitch
  • Separate color and gobo wheels in moving heads for creative programming
  • Full-color LCD screen for direct control and scene recall
  • Totem mode keeps moving heads focused on the dance floor
  • UV LEDs add blacklight effects for fluorescent materials
  • All components pre-mounted on a single bar for easy transport

Model Specifications

  • DMX Channels: 3, 27, or 46
  • Pan/Tilt (Moving Heads): 540°/180°
  • Beam Angles:
    • Moving Heads: 11°
    • Pars: 19° (Field: 30°)
    • Strobes: 8° (Field: 18°)
  • Derby Coverage Angle: 131°
  • Laser Coverage Angle: 93°
  • Light Sources:
    • Moving Head: 1x 10W LED (cool white)
    • Pars: 3x 3.5W RGB+UV LEDs
    • Derby: 6x 1W RGB LEDs
    • Strobe: 4x 5W white+UV LEDs
    • Laser: 650nm (red, 100 mW), 532nm (green, 30 mW)
  • Illuminance:
    • Moving Heads: 1,056 lux @ 2 m
    • Pars: 1,205 lux @ 2 m (per head)
    • Strobe: 86 lux @ 2 m (per LED)
  • Power and Current: 81W, 1.1A @ 120V | 79W, 0.6A @ 230V
  • Power Linking: 7 units @ 120V; 12 units @ 230V
  • Input Voltage: 100–240V AC, 50/60 Hz
  • DMX Connectors: 3-pin XLR
  • Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
  • Tripod Leg Width: 3.9 ft (1.2 m)
  • Dimensions: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
  • Weight: 23.4 lb (10.7 kg)
  • Approvals: CE, RoHS, UKCA, FDA, FCC

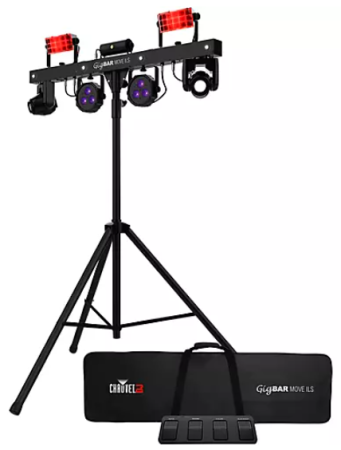

What's In The Box

  • GigBAR Move ILS fixture
  • Tripod
  • Carrying bag
  • Wireless footswitch
  • RF remote
  • Power cord
  • Quick reference guide
  • Key and interlock (EU)

Chauvet Gig BAR Move ILS (Chauvet DJ GigBAR Move with ILS Integrated Light Show)

Beam Angle Moving Heads: 11°, Pars: 19°, Strobes: 8°, Derby: 131°, Laser: 93° degrees
IP Rating Not specified
LED Type 10W cool white LED (moving head), 3.5W RGB+UV LEDs (pars), 1W RGB LEDs (derby), 5W white+UV LEDs (strobe)
Power Consumption 81W @ 120V, 79W @ 230V W
Voltage Range 100–240V AC, 50/60 Hz V
Wattage Moving Head: 10W, Pars: 3.5W each, Derby: 1W each, Strobe: 5W each W

Brand Chauvet DJ
Name Chauvet DJ GigBAR Move ILS
Primary Category DJ Lighting System

CE Certified Yes
FCC Certified Yes
RoHS Compliant Yes
Warranty Length Not specified years

Control Interfaces ILS wireless control, RF remote, wireless footswitch, full-color LCD display
Preset Storage Built-in programs and scene recall via LCD display
Wireless Capabilities ILS ecosystem wireless control, RF remote, wireless footswitch up to 100 feet

Dimensions 43 x 5.7 x 17.7 in in
Included Accessories Tripod, carrying bag, wireless footswitch, RF remote, power cord, quick reference guide, key and interlock (EU)
Mounting Options Tripod included, pre-mounted on single bar
Weight 23.4 lb lb

DMX Channel Modes 3, 27, or 46 channels

Buy the Chauvet DJ GigBAR Move ILS for a versatile, compact, and easy-to-use lighting system that combines five lighting effects in one fixture. Its wireless ILS compatibility and included accessories make it perfect for fast setup and synchronized light shows without complicated programming.

The system uses ILS wireless technology to control and synchronize multiple fixtures. It can be operated via RF remote or wireless footswitch from up to 100 feet away without line-of-sight. The full-color LCD display allows direct access to built-in programs and settings, enabling individual control of each lighting effect.

The GigBAR Move ILS uniquely integrates five different lighting effects on a single bar with wireless ILS control, including moving heads with separate color and gobo wheels, UV LEDs for blacklight effects, and Totem Mode to keep moving heads focused on the crowd, all in a compact, transportable design.
