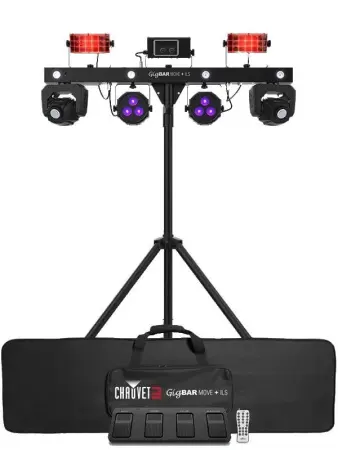

The future of easy lighting synchronization is here with GigBAR Move + ILS. This powerful member of the GigBAR family controls the Integrated Lighting System (ILS), the dynamic lighting technology that provides an advanced, coordinated light show across multiple fixture types. GigBAR Move + ILS can control any ILS-enabled fixture, wired or wirelessly. GigBAR Move + ILS is a 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar. Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects. GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation. Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.
Features:
5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
Control any ILS-enabled fixture wired or wirelessly (sold separately)
Use the included RF remote to trigger the built-in shows without needing line of sight
Powerful moving heads with separate color and gobo wheels allow for creative programming
Totem Mode keeps the moving heads focused on the dance floor
Easy navigation and access to all moving head functions directly from the full-color LCD display
System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
Individual control of each effect ensures your show looks the way you need it to
Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications:
DMX Channels: 3, 28, or 50
DMX Connectors: 3-pin XLR
Pan and Tilt: 540°/180°
Colors:(moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos:(moving head): 9 + open, continuous scroll at variable speeds
Light Source:(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode
Strobe Rate: 0 to 30 Hz
Beam Angle:(moving head): 17°(pars): 22°(strobe): 30°
Field Angle:(pars): 33°(strobe): 62°
Coverage Angle:(derby): 131°(laser): 93°
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance:(pars): 1,205 lux @ 2 m (per par)(moving head): 5,140 lux @ 2 m (per head)(strobe): 130 lux @ 2 m
Power Linking: 7 units @ 120 V; 12 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz
248 W, 1.8 A @ 230 V, 50 Hz
Weight: (bar only) 31 lbs (14 kg)
Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, UKCA, RoHS, FCC, FDA
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Footswitch Operating Frequency: 433 MHz
Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch Battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
Cable Length: 10 ft (3 m)
Tripod Thickness: 1.37 in (35 mm)
Optional Controllers: RF
Square Cable 10ft DMX Cable for Lighting
Tour Grade, Ultra High Performance DMX 3-Pin Male to DMX 3-Pin Female
3-Pin DMX Lighting Cable
All Metal XLR Connectors
Twisted Pair Data Cable with Polyethylene Insulation
100% Coverage Duofoil
85% Coverage Tinned Copper Braid Shield with Cotton
Durable PCV Jacket
Bend/Twist Resistant Cable
Gold Plated Contacts
Lifetime Guarantee
Nominal Characteristic Impedance: 110 Ohms
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/ft
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield DC Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
These Tour Grade Cables are resistant to bending & twisting. They are ideal for professional grade signal transfer with standard DMX fixtures.
