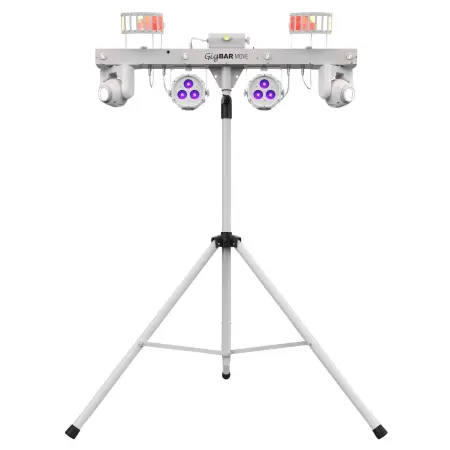

Chauvet DJ GigBAR Move | 5-in-1 Lighting System
The Chauvet DJ GigBAR Move is a versatile 5-in-1 lighting system that includes moving heads, derbies, washes, a laser, and a strobe effect, all pre-mounted on a single bar. This all-in-one system is designed for quick setup and easy control, making it ideal for mobile entertainers and event professionals.
Key Features
- 5-in-1 lighting system: moving heads, derbies, washes, laser, and strobe
- Separate color and gobo wheels for creative programming
- Totem Mode keeps moving heads focused on the dance floor
- Built-in UV LEDs for blacklight effects
- Easy control via stand-alone, DMX, IRC-6 remote, or wireless footswitch
- Compatible with GigBAR 2 in master/slave mode
Competitive Differences
- Comprehensive 5-in-1 lighting solution
- Totem Mode for focused moving heads
- Flexible control options including wireless
Full Description
The Chauvet DJ GigBAR Move redefines convenience and performance in lighting systems. This 5-in-1 system features moving heads, derbies, washes, a laser, and a strobe effect, all integrated on a single bar for quick and efficient setup. The separate color and gobo wheels allow for detailed and creative programming, while the Totem Mode ensures the moving heads stay focused on the dance floor. Built-in UV LEDs enhance your light shows with stunning blacklight effects. The GigBAR Move offers flexible control options including stand-alone, DMX, IRC-6 remote, or wireless footswitch, and is compatible with the GigBAR 2 in master/slave mode for extended coverage and dynamic shows.
Features
- 5-in-1 lighting system: moving heads, derbies, washes, laser, and strobe
- Separate color and gobo wheels in moving heads for creative programming
- Totem Mode keeps moving heads focused on the dance floor
- Built-in UV LEDs for blacklight effects
- Easy control via stand-alone, DMX, IRC-6 remote, or wireless footswitch
- Compatible with GigBAR 2 in master/slave mode
Specifications
- DMX Channels: 3, 17, or 35
- DMX Connectors: 3-pin XLR
- Pan and Tilt: 540°/180°
- Colors: 7 + white (moving head)
- Light Source:
- Pars: 6 LEDs (quad-color RGB+UV) 3.5 W, 50,000 hours life expectancy
- Strobe: 4 LEDs (dual-color white+UV) 5 W, 50,000 hours life expectancy
- Derby: 6 LEDs (2 red, 2 green, 2 blue) 5 W, 50,000 hours life expectancy
- Moving head: 1 LED (cool white) 10 W, 50,000 hours life expectancy
- Laser: 650 nm/100 mW (red), 532 nm/30 mW (green)
- Strobe Rate: 0 to 20 Hz
- Beam Angle:
- Moving head: 11°
- Pars: 19°
- Strobe: 8°
- Field Angle:
- Coverage Angle:
- Fits Tripod Size: 1.5 in (37.4 mm)
- Illuminance:
- Pars: 1,205 lux @ 2 m (per par)
- Moving head: 1,056 lux @ 2 m (per head)
- Strobe: 86 lux @ 2 m (per zone)
- Power Linking: 7 units @ 120 V; 12 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 81 W, 1.1 A @ 120 V, 60 Hz; 79 W, 0.6 A @ 230 V, 50 Hz
- Weight: 23.4 lb (10.7 kg)
- Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
- Approvals: CE, FDA, FCC
- Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
- Footswitch Operating Frequency: 433 MHz
- Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
- Footswitch Battery: 9 V alkaline
- Included Controllers: IRC-6, wireless footswitch
What's in the Box
- GigBAR Move
- Power cord
- IRC-6 remote
- Carrying bag
- Tripod
- Tripod carry bag
- Footswitch
- User Manual
Accessories
- Replacement footswitch
- Additional carry bags
