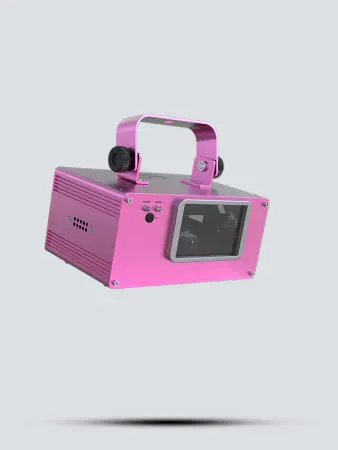

Chauvet DJ Scorpion DualRGB ILS

Laser Aerial Effect Light

The CHAUVET DJ Scorpion Dual RGB ILS is a compact aerial laser effect fixture that adds vibrant RGB laser beams to events, parties, and professional lighting setups. It uses dual RGB FAT BEAM™ technology to project intense colored lasers that are especially striking with fog or haze, creating an engaging atmosphere for audiences.

Scorpion Dual RGB ILS Competitive Differences

• Integrated Lighting System (ILS) compatibility for synchronized light shows
• Multiple control options including automatic, sound‑active, master/slave, and DMX

Scorpion Dual RGB ILS Description

The CHAUVET DJ Scorpion Dual RGB ILS stands out with its dual mirror output and RGB laser diodes that mix red, green, and blue beams into bold aerial effects. With 32 built‑in patterns including the popular “Laser Sky,” it provides eye‑catching visuals without complex setup. The unit is ready to use out of the box and fully FDA compliant.

Control flexibility is a highlight: you can operate the laser in automatic, sound‑activated, manual, or master/slave modes, or integrate it into a broader lighting rig using DMX. D‑Fi™ USB compatibility (controller sold separately) and the optional IRC‑6 remote offer wireless control possibilities for more advanced setups.

Model Features

• Dual RGB FAT BEAM™ aerial laser effect
• 32 built‑in pattern effects including “Laser Sky”
• Automatic, sound‑active, master/slave, and DMX modes
• ILS and optional wireless control compatibility
• Dual mirror output for richer visuals

Model Specifications

• DMX Channels: 10
• DMX Connectors: 3‑pin XLR
• Laser Diodes: Red 638 nm / 30 mW, Green 520 nm / 20 mW, Blue 450 nm / 50 mW
• Coverage Angle: 36°
• Zoom: 1° to 29°
• Power Input: 100–240 VAC, 50/60 Hz
• Power Consumption: 19–20 W
• Weight: 3.8 lb (1.7 kg)
• Dimensions: 8.5 × 7 × 6.3 in (216 × 179.5 × 161 mm)
• Certifications: FDA, CE compliant

What’s In The Box

• Scorpion Dual RGB ILS laser unit
• Power cord
• Quick reference guide
