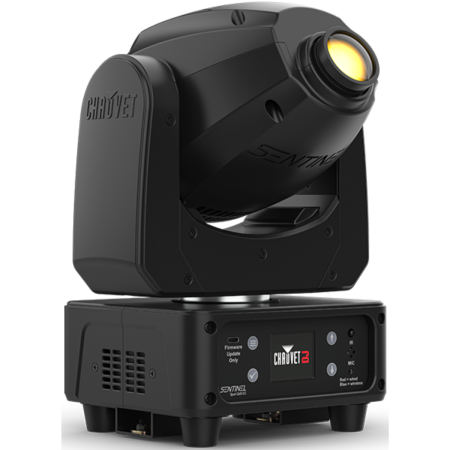

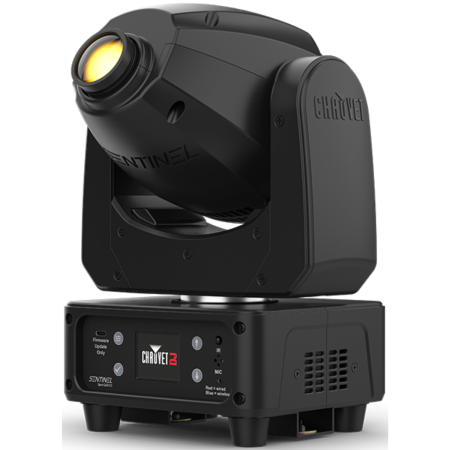

Chauvet DJ Sentinel Spot Q60 ILS

Moving Head Spot Light

Chauvet DJ Sentinel Spot Q60 ILS is a compact moving head spot fixture designed to project crisp gobos, vivid RGBW colors, and dynamic motion effects for DJs, mobile entertainers, and event lighting setups. With built-in D-Fi wireless communication, ILS compatibility, and Totem Mode, it offers flexible control and polished performance in a size that fits easily into mobile rigs.

Chauvet DJ Sentinel Spot Q60 ILS Competitive Differences

• 60W quad-color RGBW LED produces saturated colors and bright spot effects
• Built-in D-Fi transceiver supports wireless DMX or ILS communication without extra hardware
• 5 rotating, interchangeable glass gobos plus open provide versatile projection options
• Totem Mode keeps movement focused on the dance floor for cleaner event presentation

Chauvet DJ Sentinel Spot Q60 ILS Description

The Chauvet DJ Sentinel Spot Q60 ILS brings essential moving head spot features into a compact fixture built for high-energy event lighting. Its 60W RGBW LED engine delivers bold color mixing and a focused 12° beam angle, making it well suited for projecting defined patterns, textured looks, and punchy spot effects across dance floors, walls, and performance spaces.

A key advantage of this fixture is its rotating, interchangeable gobo system. With 5 gobos plus open, along with indexing, continuous scroll, and slot-n-lock functionality, users can create a wide range of visual looks that add motion and texture to parties, weddings, club setups, and small stage productions. Smooth pan and tilt movement further enhance the fixture’s ability to animate a room with precise, energetic effects.

For streamlined setup and operation, the fixture features a full-color LCD display for direct access to settings and onboard functions. Built-in D-Fi makes wireless DMX or ILS communication easy, reducing cable runs and simplifying deployment, while ILS compatibility helps synchronize the Sentinel Spot Q60 ILS with other fixture types in the ILS ecosystem for coordinated light shows.

Chauvet DJ Sentinel Spot Q60 ILS is also practical for formal events and mobile applications thanks to Totem Mode, which helps keep effects aimed at the dance floor instead of sweeping unwanted areas. Combined with power linking support and a compact housing that fits well in transport bags and mobile rigs, it is a strong option for users who want crisp projection effects, flexible control, and reliable portability.

Sentinel Spot Q60 ILS Features

• Compact moving head spot with 60W quad-color RGBW LED
• Built-in D-Fi transceiver for wireless DMX or ILS communication
• ILS compatibility for coordinated light shows with compatible fixtures
• Totem Mode keeps movement focused on the dance floor
• 5 rotating, interchangeable glass gobos plus open
• Gobo indexing, slot-n-lock, and continuous scroll at variable speeds
• Full-color LCD display for easy setup and navigation
• Smooth pan and tilt movement for dynamic spot effects
• Power linking support for reduced cable runs
• Fits best in the CHS-40 VIP Gear Bag
• Compatible with optional IRC-6 and ILS Command controllers

Sentinel Spot Q60 ILS Specifications

• Light Source: 1 x 60W quad-color RGBW LED
• LED Life Expectancy: 50,000 hours
• DMX Channels: 9 or 15

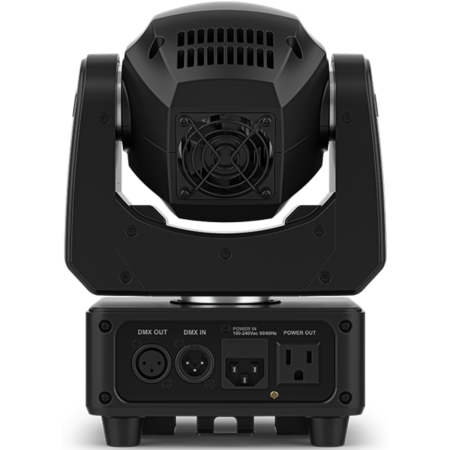

• DMX Connectors: 3-pin XLR
• Pan: 540°
• Tilt: 229°
• Selectable Pan Ranges: 180°, 360°, 540°
• Selectable Tilt Ranges: 90°, 180°, 229°
• Gobos: 5 + open, rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Material: 6 glass
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Beam Angle: 12°
• Illuminance: 8,687 lux @ 2 m
• Strobe Rate: 0 to 20 Hz
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 76W @ 120V, 60 Hz
• Current Draw: 1.0A @ 120V, 60 Hz
• Power Consumption: 76W @ 230V, 50 Hz
• Current Draw: 0.7A @ 230V, 50 Hz
• Power Linking: 7 units @ 120V; 11 units @ 230V
• Weight: 9 lb (4.1 kg)
• Dimensions: 8 x 5.9 x 13 in (204 x 150 x 332 mm)
• Approvals: CE, RoHS, FCC
• Optional Controllers: IRC-6, ILS Command

What's In The Box

• Sentinel Spot Q60 ILS
• Power cord
• Hanging bracket
• Quick Reference Guide

ChauvetDJ Sentinel Spot Q60 ILS (Chauvet DJ SENTINELSPOTQ60ILS)
