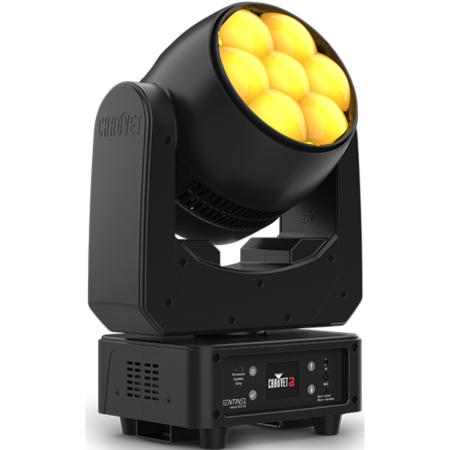

Moving Head Wash Light
Chauvet DJ Sentinel Wash Q7Z ILS is a compact moving head wash fixture designed for saturated RGBW color mixing, smooth motion, and flexible coverage from tight beams to wide washes. With motorized zoom, built-in wireless DMX and ILS communication, and Totem Mode for keeping effects focused where needed, it is well suited for DJs, event setups, and mobile lighting rigs that need strong performance in a compact format.
Chauvet DJ Sentinel Wash Q7Z ILS Competitive Differences
- Motorized zoom adjusts from a narrow 5° beam to a wide 27° wash for short- and long-throw use
- Built-in D-Fi transceiver supports wireless DMX or ILS communication without extra hardware
- ILS compatibility allows coordinated effects with other fixtures in the ILS ecosystem
- Totem Mode keeps movement directed onto the dance floor for cleaner event presentation
Chauvet DJ Sentinel Wash Q7Z ILS Description
The Chauvet DJ Sentinel Wash Q7Z ILS combines compact size with advanced moving wash features for users who need flexible coverage and simple coordination with other fixtures. Its 7 quad-color RGBW LEDs deliver vibrant washes and smooth color mixing, while the motorized zoom lets the fixture quickly shift from narrow, concentrated beams to broader area coverage depending on the venue and throw distance.
This fixture is especially useful for mobile entertainers, DJs, and event production teams that want clean setups and versatile control options. The built-in D-Fi transceiver enables wireless DMX or ILS communication, reducing cable runs and simplifying rig deployment. ILS compatibility also makes it easier to build synchronized light shows with other compatible fixtures across an event setup.
For practical show use, the full-color LCD display gives direct access to functions and settings, making setup and adjustments straightforward. Totem Mode is a valuable feature for weddings, parties, and formal events, keeping the moving head’s output focused on the dance floor instead of sweeping into unwanted areas like ceilings or guest seating.
Chauvet DJ Sentinel Wash Q7Z ILS also supports power linking to cut down on extra extension cords, and its compact footprint helps it fit easily into mobile rigs and truss applications. With smooth pan and tilt movement, wireless control flexibility, and zoom-based beam shaping, it is a strong option for creating dynamic wash effects in both short-throw and long-throw environments.
Sentinel Wash Q7Z ILS Features
- Compact moving head wash with 7 quad-color RGBW LEDs
- 20W LEDs with 140W total LED power
- Motorized zoom for narrow beams and wide washes
- Built-in D-Fi transceiver for wireless DMX or ILS communication
- ILS compatibility for synchronized lighting control
- Totem Mode keeps effects focused on the dance floor
- Full-color LCD display for easy menu navigation
- Power linking support for cleaner cable management
- Smooth pan and tilt movement for dynamic wash effects
- Compatible with optional IRC-6 and ILS Command controllers
- Fits best in the CHS-40 VIP Gear Bag
Sentinel Wash Q7Z ILS Specifications
- Light Source: 7 x 20W quad-color RGBW LEDs
- Total LED Power: 140W
- LED Life Expectancy: 50,000 hours
- DMX Channels: 9 or 14
- DMX Connectors: 3-pin XLR
- Pan: 540°
- Tilt: 225°
- Selectable Pan Ranges: 180°, 360°, 540°
- Selectable Tilt Ranges: 90°, 180°, 225°
- Zoom Angle: 5° to 27°
- Illuminance Narrow: 30,537 lux @ 2 m (5°)
- Illuminance Wide: 3,390 lux @ 2 m (27°)
- Strobe Rate: 0 to 20 Hz
- Input Voltage: 100 to 240 VAC, 50/60 Hz
- Power Consumption: 148W @ 120V, 60 Hz
- Current Draw: 1.2A @ 120V, 60 Hz
- Power Consumption: 146W @ 230V, 50 Hz
- Current Draw: 0.7A @ 230V, 50 Hz
- Power Linking: 6 units @ 120V; 12 units @ 230V
- Cable Length: 5 ft (1.5 m)
- Weight: 13.8 lb (6.3 kg)
- Dimensions: 14.2 x 10 x 7.41 in (362 x 255 x 188 mm)
- Approvals: CE, RoHS, FCC
- Optional Controllers: IRC-6, ILS Command
What's In The Box
- Sentinel Wash Q7Z ILS
- Power cord
- Hanging bracket
- Quick Reference Guide
ChauvetDJ Sentinel Wash Q7Z ILS
(Chauvet DJ SENTINELWASHQ7ZILS)
