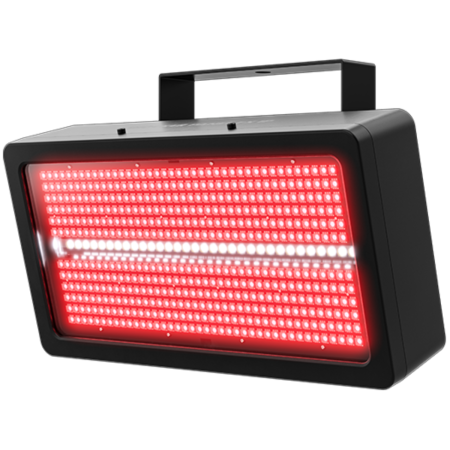

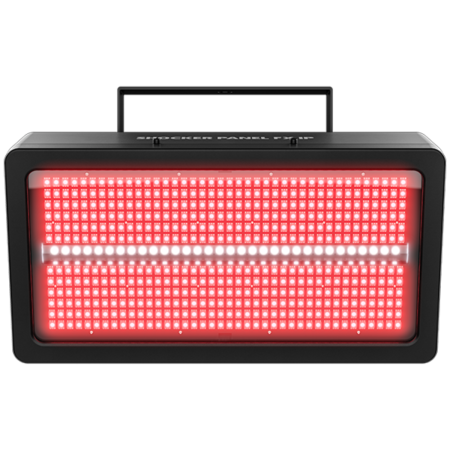

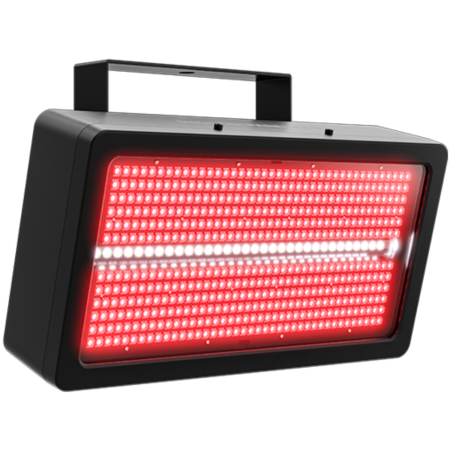

Chauvet DJ Shocker Panel FX IP

Outdoor LED Strobe Wash and Blinder Effect Light

Chauvet DJ Shocker Panel FX IP is a versatile outdoor-rated lighting fixture that combines strobe, wash, and blinder effects into one compact IP66-rated unit. Designed for live events, productions, festivals, and entertainment applications, it delivers vibrant RGB effects, intense cool white strobes, and dynamic pixel-style animations for both indoor and outdoor environments.

Chauvet DJ Shocker Panel FX IP Competitive Differences

• IP66-rated housing for reliable indoor and outdoor operation
• 16 controllable LED sections with RGB and cool white zones for advanced visual effects

Chauvet DJ Shocker Panel FX IP Description

The Chauvet DJ Shocker Panel FX IP is engineered to create bold lighting effects with flexible strobe, wash, and blinder functionality. Featuring eight RGB zones and eight cool white sections, it offers dynamic pixel-style animations, sweeping color effects, and high-impact audience lighting from a compact fixture.

Its IP66-rated enclosure protects the fixture against dust and water intrusion, making it suitable for outdoor festivals, touring productions, stage setups, and permanent installations. Neutrik TRUE1 power input and output connectors maintain weather resistance while simplifying setup and power linking.

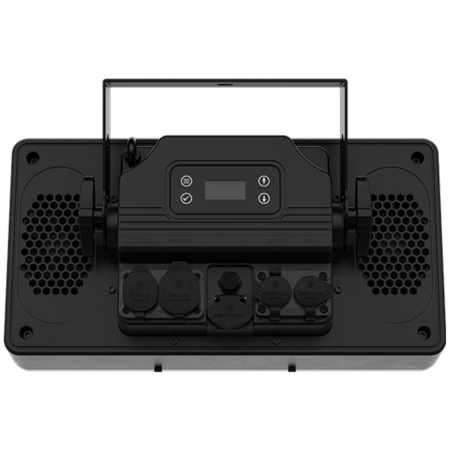

The touch-sensitive digital display provides fast access to built-in macros, DMX settings, and password protection. Multiple DMX modes allow both simple operation and advanced programming flexibility for professional lighting systems.

With wide beam and field angles, fast strobe rates, and bright high-output LEDs, the Shocker Panel FX IP delivers immersive visual effects for stages, dance floors, and architectural lighting applications. The integrated GORE valve helps prevent internal humidity buildup for reliable long-term operation in changing environments.

Shocker Panel FX IP Features

• Outdoor-rated strobe, wash, and blinder fixture
• IP66 weather-resistant housing
• 16 controllable LED sections
• 8 RGB LED zones and 8 cool white LED zones
• Built-in automated effect macros
• Touch-sensitive password-protected display
• Neutrik TRUE1 power input and output connections
• Integrated GORE valve for humidity management
• DMX control with multiple channel modes
• Wide beam and field coverage
• Power linking capability

Shocker Panel FX IP Specifications

• DMX Channels: 8, 18, 34, or 47
• DMX Connectors: 5-pin XLR
• RGB LEDs: 480 tri-color LEDs, 2W each
• Cool White LEDs: 32 LEDs, 1.8W each
• LED Lifespan: 50,000 hours
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 119°
• Field Angle: 158°
• Illuminance: 1,131 lux @ 2 m
• Lumens: 13,626
• IP Rating: IP66
• Input Voltage: 100 to 240 VAC, 50/60 Hz
• Power Consumption: 238W @ 120V / 231W @ 230V
• Power Linking: 6 units @ 120V, 11 units @ 230V
• Startup Temperature: -4°F to 113°F (-20°C to 45°C)
• Operating Temperature: -22°F to 113°F (-30°C to 45°C)
• Cable Length: 5 ft (1.5 m)
• Dimensions: 12.9 x 5.1 x 6.8 in (330 x 130 x 173 mm)
• Weight: 10.4 lb (4.7 kg)
• Approvals: CE, ROHS, MET

What's In The Box

• Chauvet DJ Shocker Panel FX IP
• Power Cable
• Quick Reference Guide

ChauvetDJ SHOCKERPANELFXIP (Chauvet DJ Shocker Panel FX IP)
