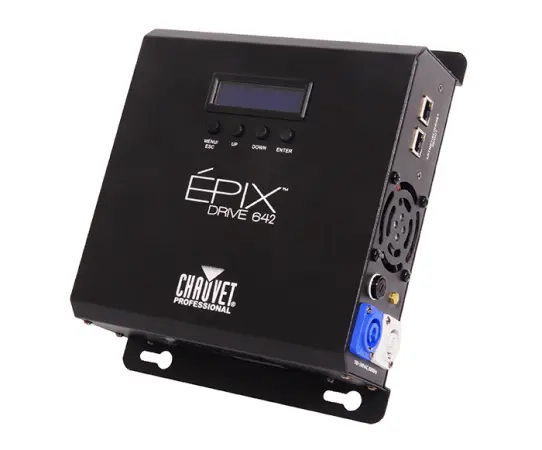

Chauvet Pro Epix Drive 642

Chauvet ÉPIX Drive 642 (Chauvet Epics Drive 642)

ÉPIX™ Drive 642 hosts the processing and power supply for the EPIX™ 2.0 product line in one convenient device. It controls up to 16 ÉPIX™ Strip 2.0 or 4 ÉPIX™ Bar 2.0 easily using Art-Net (3.0 compliant) or Arkaos Kling-Net. Configuration and setup is fast, easy with its built-in LCD display. Additionally, you can manage configuration and software updates with a network-based remote web server.




Features:

• Hosts the processing and power supply for the EPIX™ 2.0 product line in one convenient device
• Easily control using Art-Net (3.0 compliant) or Arkaos Kling-Net
• Convenient and compatible with industry-standard Neutrik® powerCON® in-and-out connectors for power and network cables for control
• Fast, easy setup and configuration using built-in LCD display
• Easily manage configuration and software updates with the network-based remote web server
• Controls up to 16 EPIX™ Strip 2.0, or 4 EPIX™ Bar 2.0
• Works with Arkaos Media Master Express for a plug-n-play system that requires little training to operate

Specifications:

• Intended Load: (4) Epix™ Strip 2.0 or (1) Epix™ Bar 2.0 per output
• IP Rating: IP20
• Power Linking: 7 units @ 120V; 10 units @ 208V; 11 units @ 230V
• Input Voltage: Auto-ranging 100 - 240VAC 50/60Hz
• Power and Current: 232W, 1.92A @ 120V 60Hz
• Power and Current: 272W, 1.32A @ 208V 60Hz
• Power and Current: 276W, 1.20A @ 230V 50Hz
• Weight: 5.6lbs (2.5kg)
• Size: 8.3 x 10.1 x 3in (210 x 257 x 78mm)
• Approvals: CE, MET, RoHs
