Powerful and Versatile Lighting Controller for DJs and Events
The

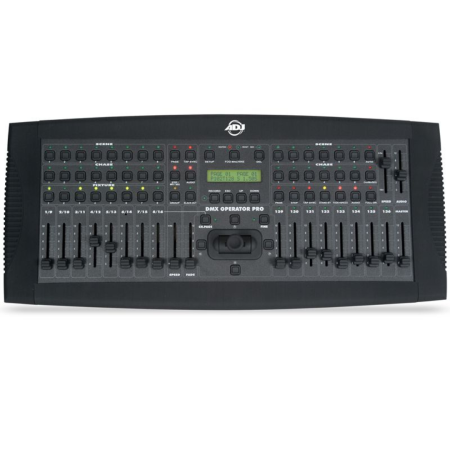

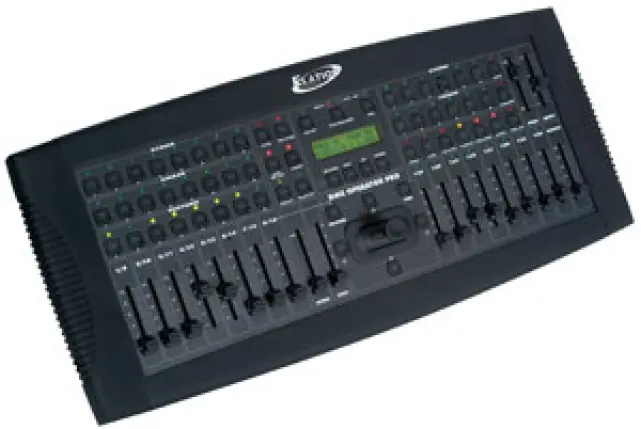

ADJ DMX Operator Pro is a versatile 136-channel hybrid lighting controller designed to manage both intelligent lighting and dimmer packs seamlessly. Ideal for DJs, clubs, and small touring setups, it offers intuitive programming and playback options, making it a top choice for professional lighting control.
ADJ DMX Operator Pro Competitive Differences
- Controls up to 136 DMX channels: 128 for intelligent fixtures and 8 for dimmers.
- Supports 8 individual fixtures with up to 16 DMX channels each.
- Programmable for 96 scenes and 8 chases with fade and speed control.
- Built-in microphone for audio triggering and Tap Sync for manual Chase control.
- 32 MB Compact Flash Card support for memory backup.
- Fog machine trigger button for enhanced stage effects.
- Fixture Group function to control multiple fixtures simultaneously.
- Step/Mix Sequence for automatic Chase sequencing.
ADJ DMX Operator Pro Description
The
ADJ DMX Operator Pro is designed to simplify lighting control for various applications. With its hybrid design, the controller handles both conventional dimmers and moving lights effortlessly. It features 8 individual fixture faders, allowing intuitive control of up to 128 DMX channels for intelligent lighting and an additional 8 channels for dimmer packs.
The DMX Operator Pro provides extensive customization, enabling users to program up to 96 scenes and 8 chases for intelligent fixtures. For dimmer packs, it also supports up to 96 scenes and 6 chases. Advanced features like the Tap Sync button for Chase override, an Audio trigger button, and a Group function further enhance its live control capabilities.
Designed with user convenience in mind, it includes a back-up memory option via a Compact Flash Card, ensuring your settings are always secure. Whether for live performances or pre-programmed events, the DMX Operator Pro delivers reliability and precision.
DMX Operator Pro Features
- 136 total DMX channels: 128 for intelligent fixtures and 8 for dimmers.
- 8 individual fixture faders with up to 16 DMX channels each.
- 96 programmable scenes for both intelligent fixtures and dimmer packs.
- 8 programmable chases for intelligent fixtures and 6 for dimmers.
- Built-in microphone for music-triggered lighting effects.
- Manual Chase override with Tap Sync button.
- Step/Mix Sequence function for automated Chase playback.
- Compact Flash Card slot for memory backup.
- Fog machine trigger button for integrated effects.
DMX Operator Pro Specifications
- Total DMX Channels: 136 (128 for intelligent fixtures, 8 for dimmers).
- Maximum Fixtures: 8, with up to 16 DMX channels per fixture.
- Programmable Scenes: 96 for both intelligent fixtures and dimmer packs.
- Programmable Chases: 8 for intelligent fixtures, 6 for dimmers.
- Memory Backup: 32 MB Compact Flash Card.
- Trigger Modes: Audio trigger via microphone or line level input.
- Dimensions: 19 x 3.5 x 7 inches (48.3 x 8.9 x 17.8 cm).
- Weight: 6 lbs (2.7 kg).
- UPC: 819730011992
ADJ DMX-Operator Pro
(American DJ DMX Pro Operator)
