American DJ Aria X2 Transceiver

Advanced Wireless DMX Lighting Control for Stage & Event Setups

The American DJ Aria X2 Transceiver is a cutting-edge, single-universe wireless DMX solution, designed for professional lighting control in live performance, event production, and studio applications. Featuring advanced wireless mesh technology, BLE setup, and frequency agility, it offers unparalleled connectivity and flexibility for your lighting system.

American DJ Aria X2 Transceiver Competitive Differences

• Supports both 2.4GHz and sub-GHz frequencies (902–928 MHz US / 863–870 MHz EU)
• Compatible with DMX512 and Aria X2 proprietary mesh protocol
• Bluetooth 5.2 (BLE) for direct configuration and control
• OTA firmware updates for both fixture and system enhancements
• Built-in frequency agility and planned adaptive frequency hopping for optimal RF performance
• Durable aluminum/metal housing with IP20 rating for indoor use

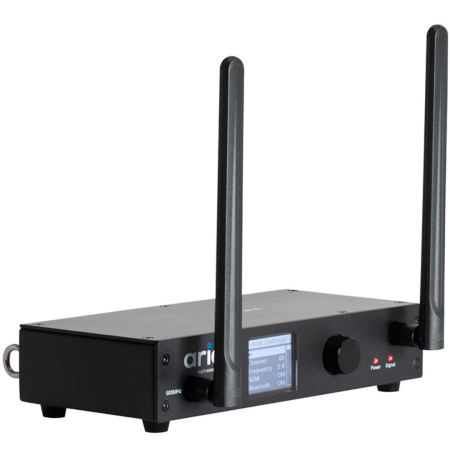

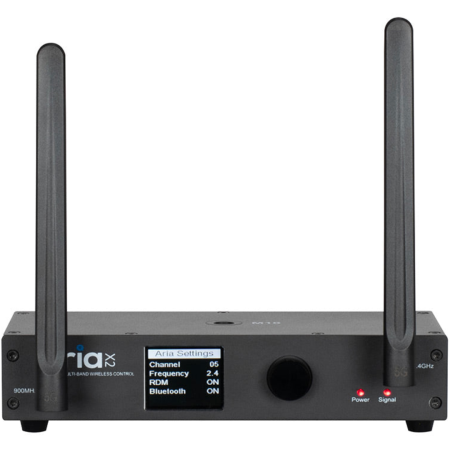

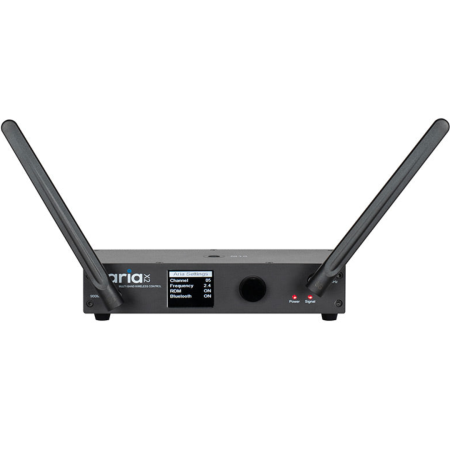

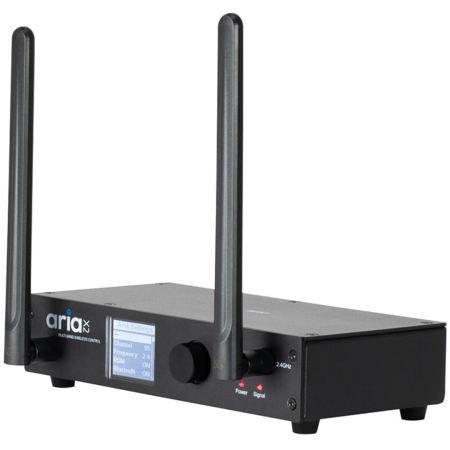

• Front-panel digital screen and rotary knob for intuitive operation

American DJ Aria X2 Transceiver Description

Empower your lighting experience with the Aria X2 Transceiver by American DJ, a robust indoor wireless management device engineered for single-universe DMX control. It bridges the gap between Aria’s advanced serial protocol and conventional DMX infrastructures, while offering next-level flexibility and future-ready OTA capabilities.

The Aria X2 supports transmission across multiple global frequency ranges, ensuring interference-resistant operation. Its BLE configuration allows easy integration with fixtures directly from the panel or via the upcoming companion app. Aria’s intelligent mesh protocol allows seamless multi-hop DMX networking for broader and more reliable control.

Designed for durability and usability, the Aria X2 Transceiver is housed in a rugged aluminum enclosure and includes M10 and M12 mounting threads, plus a safety eyelet for secure installations. Whether for mobile setups or fixed venue use, this unit elevates your wireless control system to the next level.

Aria X2 Transceiver Features

• Single DMX universe
• 2.4GHz and sub-GHz wireless bands (U.S./EU)
• WiFi and Bluetooth 5.2 support
• Wireless to DMX or DMX to Wireless bridge functionality
• BLE configuration via app or front panel
• OTA updates for firmware and fixture settings
• Interference mitigation via CSMA
• Durable IP20-rated metal enclosure
• Front panel screen and rotary knob

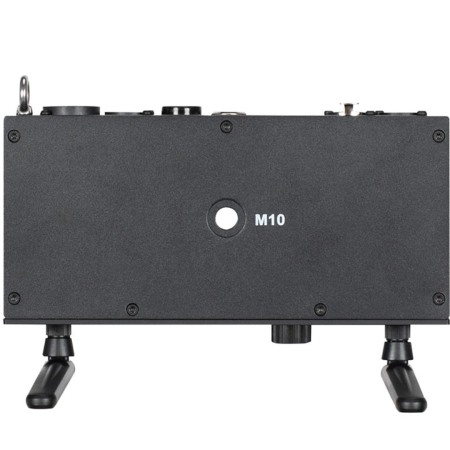

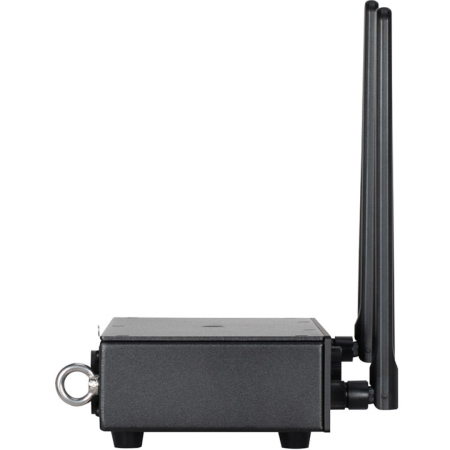

• M10/M12 mount threads and safety eyelet

Aria X2 Transceiver Specifications

• Supported Protocols: DMX512, RDM (future), Bluetooth 5.2, 802.15.4, Aria Mesh/Serial
• Frequency Ranges: 2404–2480 MHz, 902–928 MHz (US), 863–870 MHz (EU)

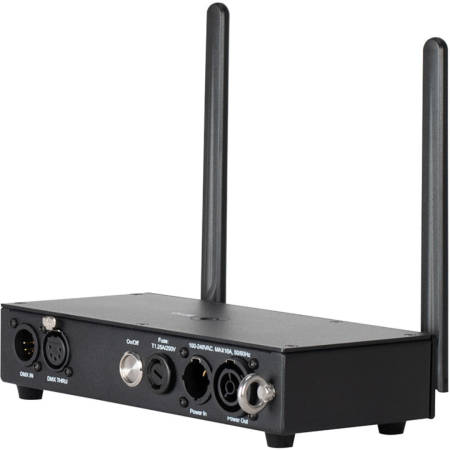

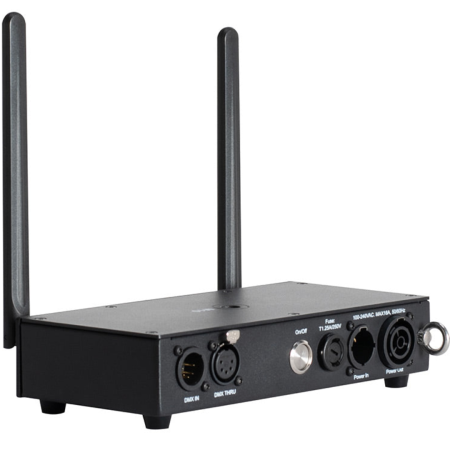

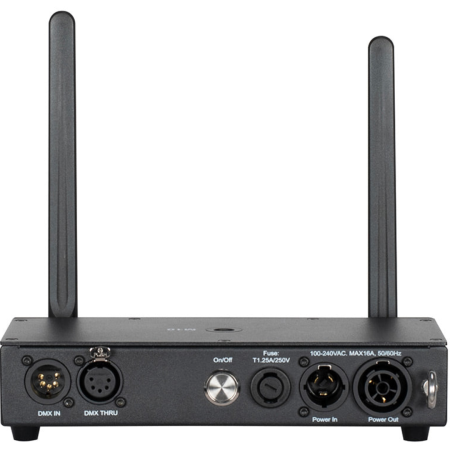

• Connectors: 5G JT SMA Antenna, 5-pin XLR DMX In/Out, 2.5mm Barrel DC, IP65 Locking Power In/Out
• Power Input: 100–240V AC, 50/60Hz
• Power Consumption: 2W
• Fuse: T1.25A/250V (5 x 20mm)
• Operating Temp: Max 113°F (45°C); Humidity: <75%
• Dimensions: 6.46" x 8.48" x 1.66"
• Weight: 2.7 lbs. (1.23 kg)
• UPC: 840063548060

ADJ Aria X2 Transceiver (American DJ AX2100)
