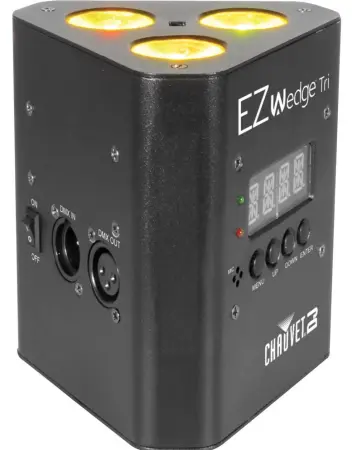

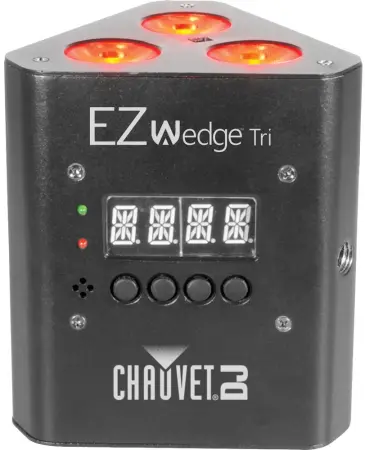

Chauvet DJ EZWedge Tri

Chauvet DJ EZWedge Tri | Battery-Powered LED Wash Light

The Chauvet DJ EZWedge Tri is a compact, battery-operated LED wash light designed to fit perfectly inside TRUSST® Goal Post and Arch Kit truss systems. This versatile light is perfect for uplighting applications and other mobile events.

Key Features

• Battery-powered, compact LED wash light

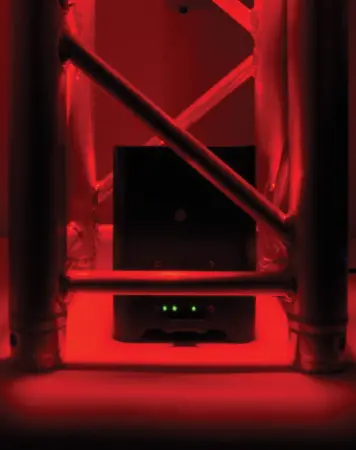

• Perfectly fits inside TRUSST® Goal Post and Arch Kit truss systems
• Tri-color (RGB) LEDs for vibrant color mixing
• Built-in D-Fi transceiver for wireless DMX control
• Adjustable run time to meet the needs of your event
• Flicker-free operation for on-camera use

Competitive Differences

• Compact and battery-powered for easy setup
• Wireless DMX control with built-in D-Fi transceiver

Full Description

The Chauvet DJ EZWedge Tri is designed to provide vibrant color washes in a compact and portable form factor. Its battery-powered operation and built-in D-Fi transceiver allow for wireless DMX control, making it ideal for mobile events and uplighting applications. The fixture fits perfectly inside TRUSST® Goal Post and Arch Kit truss systems, offering versatile mounting options. With tri-color (RGB) LEDs, the EZWedge Tri ensures vibrant and dynamic color mixing. The adjustable run time and flicker-free operation make it suitable for a variety of events, including those requiring on-camera lighting.

Features

• Battery-powered, compact LED wash light
• Perfectly fits inside TRUSST® Goal Post and Arch Kit truss systems
• Tri-color (RGB) LEDs for vibrant color mixing
• Built-in D-Fi transceiver for wireless DMX control
• Adjustable run time to meet the needs of your event
• Flicker-free operation for on-camera use

Specifications

• DMX Channels: 3 or 8
• DMX Connectors: 3-pin XLR
• Light Source: 3 LEDs (tri-color RGB) 3 W (1,050 mA), 50,000 hours life expectancy
• Strobe Rate: 0 to 17 Hz
• PWM Frequency: 5.39 KHz
• Beam Angle: 16°
• Illuminance: 1,066 lux @ 2 m
• Power Linking: 33 units @ 120 V; 57 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 17 W, 0.2 A @ 120 V, 60 Hz; 16 W, 0.1 A @ 230 V, 50 Hz
• Weight: 2.8 lb (1.3 kg)
• Size: 4.3 x 4.3 x 5.4 in (108 x 108 x 136 mm)

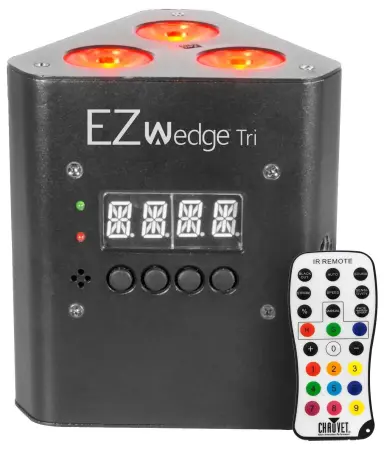

• Included Controllers: IRC-6

What's in the Box

• EZWedge Tri
• Power cord
• Warranty card
• Quick Reference Guide

Accessories

• D-Fi USB for wireless control
• Additional power supply

Chauvet Easy Wedge Tri (Chauvet DJ EZWedge Tri)
