LED Moving Head Spot Fixture
The

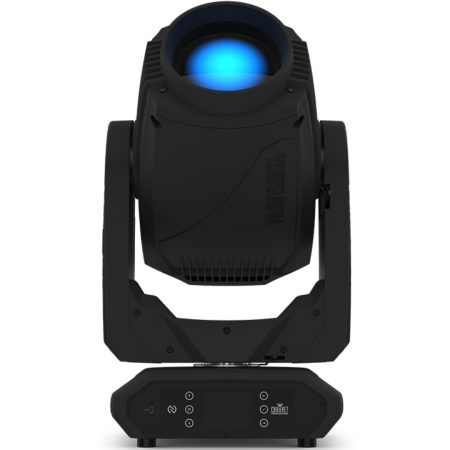

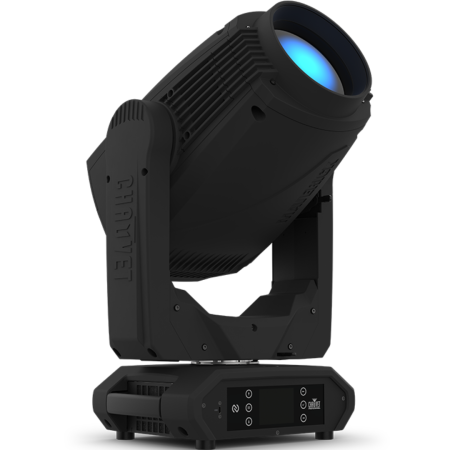

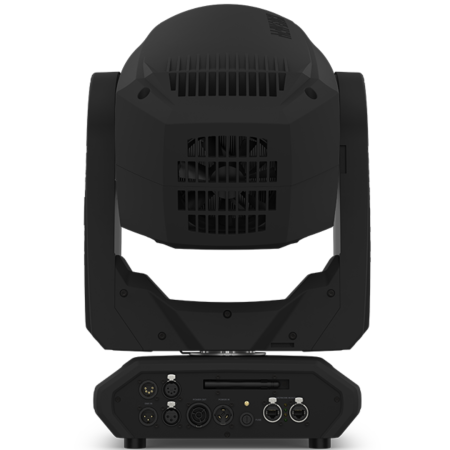

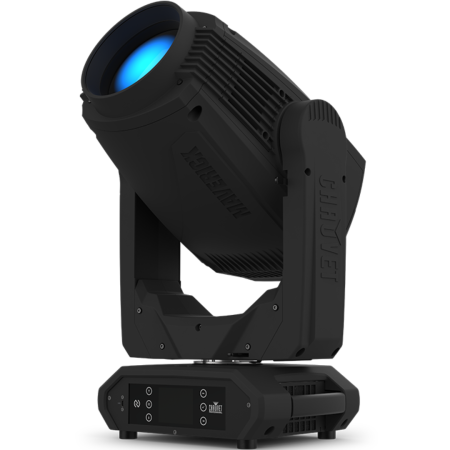

Chauvet Maverick Force X Spot is a feature-rich 520W LED yoke spot designed for high-output performance in a compact, lightweight housing. Engineered for tours, installations, and production environments, it delivers 17,325 lumens and an impressive 3.5° to 57.7° zoom range with excellent flat field output. Dual gobo wheels, CMY color mixing, a five-facet prism, frost, and motorized iris make this fixture highly versatile for beam shaping and effects across short and long throws.
Chauvet Maverick Force X Spot Competitive Differences
- 17,325 lumens from a 520W LED with flat field and 3.5°–57.7° zoom
- CMY color mixing, dual gobo wheels, and 134° tilt/pan range in a compact chassis
Chauvet Maverick Force X Spot Description
The
Maverick Force X Spot delivers professional-grade performance in a tour-ready compact design. It’s built for demanding productions, combining a high-efficiency 520W LED engine with superior optics to achieve sharp focus, vibrant color rendering, and smooth dimming from tight beam to wide wash. It features a motorized zoom, focus, iris, frost, and a 5-facet rotating prism for complete beam control.
Dual gobo wheels (one static, one rotating) provide extensive effect options, with slot-and-lock capability for fast gobo swaps. The variable CMY system ensures deep saturated hues, including realistic reds, while the color wheel includes CRI and CTB filters for enhanced rendering and temperature control.
With 16-bit dimming and a 65,000 Hz PWM frequency option, this fixture is optimized for camera use. It supports multiple control protocols including DMX, RDM, Art-Net, sACN, and CRMX for full integration into any lighting rig. Additional features include NFC setup, battery backup display, True-1-compatible IP-rated power connections, and fail-safe Ethernet for mission-critical environments.
Model Features
- 520W LED engine producing 17,325 lumens
- 3.5° to 57.7° motorized zoom range
- Flat field optical performance with high CRI (up to 90 with filter)
- CMY color mixing + color wheel with CRI/CTB filters
- Dual gobo wheels (1 rotating, 1 static), interchangeable
- 5-facet rotating prism, frost, iris, electronic focus and shutter
- 16-bit smooth dimming with 5 dim curves
- PWM up to 65,000 Hz for flicker-free camera use
- Control via DMX, RDM, Art-Net, sACN, and CRMX
- Battery-powered display, USB software updates, NFC setup
Model Specifications
- Light Source: 520W CW LED
- Lumens: 17,325
- Zoom Range: 3.5° to 57.7°
- Pan/Tilt Range: 540° / 270°
- DMX Modes: 22 or 29 channels
- Power Consumption: 554W @ 120V
- Control Protocols: DMX, RDM, sACN, Art-Net, CRMX
- PWM Frequency: Selectable up to 65,000 Hz
- CRI: 72.2 (90 with CRI filter)
- Dimensions: 25.43 x 14.21 x 9.40 in (646 x 361 x 239 mm)
- Weight: 44.2 lb (20 kg)
- IP Rating: IP20 (dry location)
- Operating Temp: -4°F to 113°F (-20°C to 45°C)
What's In The Box
- Chauvet Maverick Force X Spot Fixture
- Seetronic Powerkon IP65 Power Cable
- Omega Brackets with Mounting Accessories
