Outdoor Pixel-Mappable LED Batten

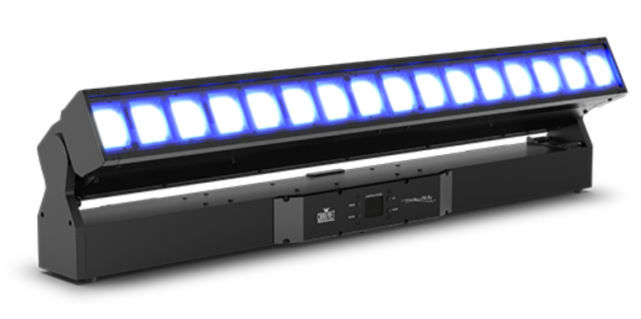

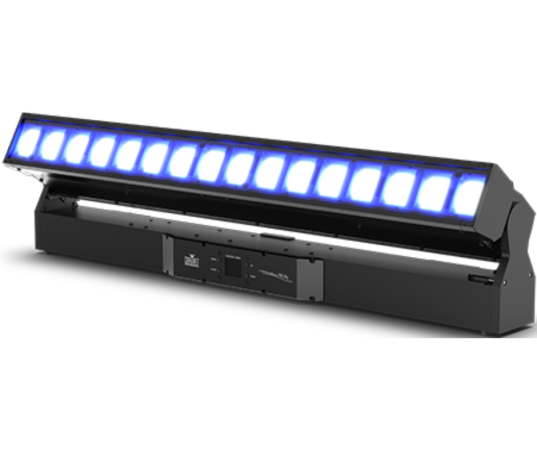

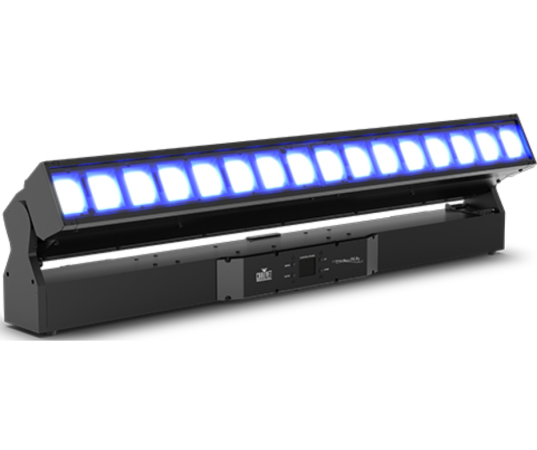

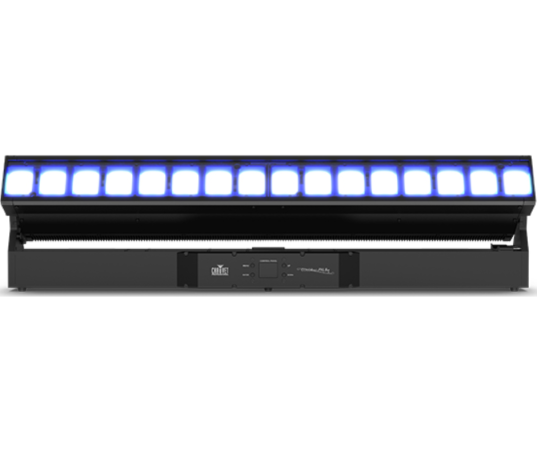

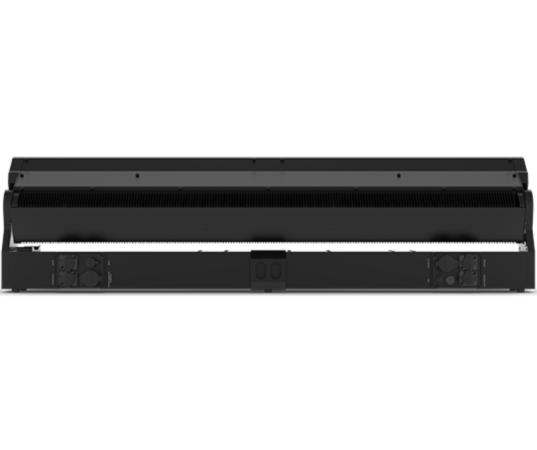

Chauvet Pro COLORado PXL Bar 16 is a high-output, motorized LED batten designed for seamless integration into creative lighting rigs. Ideal for outdoor concerts, festivals, and touring events, this IP65-rated fixture features motorized tilt, motorized zoom, and full pixel-mapping capabilities, giving designers complete creative control from tight beams to wide washes.
Chauvet Pro COLORado PXL Bar 16 Competitive Differences
- IP65-rated with motorized 200° tilt and zoom (5.8°–47.9°)
- 16x 45W RGBW LEDs with full pixel-mapping and built-in animation macros
Chauvet Pro COLORado PXL Bar 16 Description
The
COLORado PXL Bar 16 delivers precision, power, and flexibility in a single linear fixture. Equipped with 16 individually controllable 45-watt RGBW LEDs, this batten offers crisp beam control with a 5.8° to 47.9° zoom range and 200° motorized tilt for dynamic effects in vertical or horizontal orientations.
Engineered for both indoor and outdoor applications, its IP65 rating ensures reliable operation in demanding environments. Seamless edge-to-edge mounting allows for uniform, gap-free visuals, while built-in movement macros, virtual gobos, and foreground/background color controls unlock a range of stunning effects without extensive programming.
Designed for professional lighting systems, it supports DMX, Art-Net, sACN, and Kling-Net protocols and includes RDM for remote configuration. With slotted Omega brackets for quick rigging and optional accessories like flight cases and clamps, the PXL Bar 16 is built to streamline setup and enhance creative output.
Model Features
- 16x 45W RGBW quad-color LEDs
- Motorized 200° tilt and zoom (5.8° to 47.9°)
- Pixel-mappable with built-in effects and color macros
- IP65-rated housing for outdoor/wet use
- DMX, sACN, Art-Net, Kling-Net, and RDM support
- Slotted Omega brackets for truss mounting
Model Specifications
- Max Illuminance: 27,415 lux @ 5 m (5.7°)
- LED Power: 16 x 45W RGBW
- Zoom Range: 5.8° to 47.9°
- Dimensions: 39.37 x 5.47 x 10.75 in (1000 x 139 x 273 mm)
- Weight: 45.6 lb (20.7 kg)
- Input Voltage: 100–240V AC, 50/60 Hz
- Power Consumption: 790W @ 120V
- IP Rating: IP65 (with M12 GORE valve)
What's In The Box
- COLORado PXL Bar 16
- Seetronic Powerkon IP65 cable
- 2x Omega brackets with mounting hardware
Chauvet COLORado PIxel Bar 16
(Chauvet Pro Pixel Bar 16 Color Ado)
