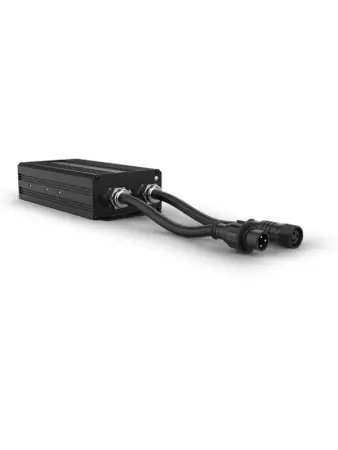

EPIX Flex Boost is a 24V in-line voltage booster that doubles the capacity of each output on the EPIX Flex Drive and the quantity of EPIX Flex 20 it controls. There is no need to solder into system with this plug-and-play operation
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
Dimensions: 8.13 x 3.56 x 1.83 in (206.5 x 46.5 x 90.5 mm)Weight: 4.4 lb (2 kg)Exterior Color: BlackHousing Material: Aluminum
CONNECTIONS
Connection: Edison (Local) plug to Seetronic Powerkon IP65Power Input: Seetronic Powerkon IP65Device inputs: (1) 3-pin male IP FlexDevice Outputs: (1) 3-pin female IP FlexPhysical Linking: 2 inline ÉPIX Flex 20Cable Length (signal): 1.16 ft (0.355 m)Cable Length (power): 5 ft (1.5 m)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current: 200 W, 1.6 A @ 120 V, 60 HzPower and Current: 200 W, 0.87 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, METIP Rating: IP65, outdoor/wet, with pressure equalizing M14 GORE valveTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)MET Listing Number: E114016-1144US Safety: UL 8750Canadian Safety: CSA C22.2 No. 250.13-12
WHAT'S INCLUDED
ÉPIX Flex BoostSeetronic Powerkon power cord
REQUIRED ACCESSORIES
Accessories (required): ÉPIX Flex DriveCompatible Mounting Options: M12 Bolt/Clamp
OPTIONAL ACCESSORIES
ClampsIP Flex CablesSeetronic Powerkon cablesDMX Cables
Chauvet EPIX-Flex Booster
(Chauvet Pro Epix Boost Flex)
