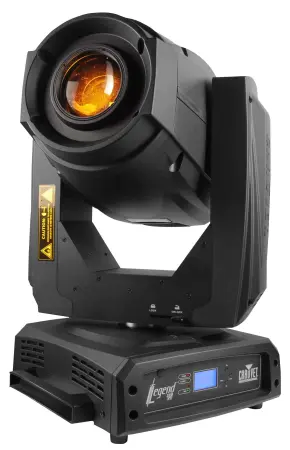

Chauvet Pro Legend 330SR Spot 2 Pack with Flight Case

Chauvet Professional Legend 330SR Spot 2 Pack with Flight Case (Chauvet Pro Legend 330 SR Spot)

Extremely bright with crisp crystal clear optics, the Legend™ 330SR Spot is a class leader in output and gobo projection. Legend™ 330SR Spot is a quick and agile fixture with precise movement and a zoom range of 5° to 24°, making it a great choice for touring rigs, broadcast, or live events. Legend™ 330SR Spot’s 330W Osram Sirius lamp gives the fixture a powerful punch of 62,200 lux at 5 meters and a field that makes even the most complicated gobo stunning.










Features:

• Compact moving yoke spot fixture with zoom optics and motorized focus
• 3- and 5-pin DMX input/output connections
• Virtually silent operation for use in any situation
• Precision optics for crisp, even gobo projections
• Variable frost for wash-style effects
• 3-facet rotating prism with zoom for stunning effects
• Fast, precise pan and tilt movement
• Neutrik® powerCON® power input
• Uses Osram Sirius 330 W X8 lamp source with a rated 1,500 hours life expectancy

Specifications:

• DMX Channels: 21 or 27
• Data Connectors: 3- and 5-pin XLR
• Light Source: Osram Sirius lamp, 330 W X8, 8000 K, 1,500 hours life expectancy
• Pan and Tilt: 540°/270°
• Automatic Pan/Tilt Correction: Yes
• Colors: 7 + white, split colors, continuous scroll at variable speeds
• Colors: CMY Flags
• Gobos (1): 8 + open (4 metal + 4 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 14 + open (14 metal), continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 17.8 mm (outside), 14 mm (image), 1.3 mm (max. thickness)
• Prism: 3 Facets, motorized, rotating
• Dimmer: Motorized
• Focus: Motorized
• Iris: Motorized
• Shutter/Strobe: Motorized
• Beam Angle: 5° to 24°
• Zoom Angle: 5° to 24°
• Illuminance (5°): 62,200 lux @ 5 m
• Illuminance (24°): 4,110 lux @ 5 m
• Color Temperature (at full): 7500 K
• IP Rating: IP20, dry location
• Cable Length: 5 ft (1.5 m)
• Power Connection: Bare-wired to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 514 W, 4.3 A @ 120 V, 60 Hz
• Power and Current: 495 W, 2.5 A @ 208 V, 60 Hz
• Power and Current: 495 W, 2.3 A @ 230 V, 50 Hz
• Weight: 47 lb (21.3 kg)
• Dimensions: 13.5 x 17.1 x 25.5 in (344 x 435 x 649 mm)
• Approvals: CE, MET pending
