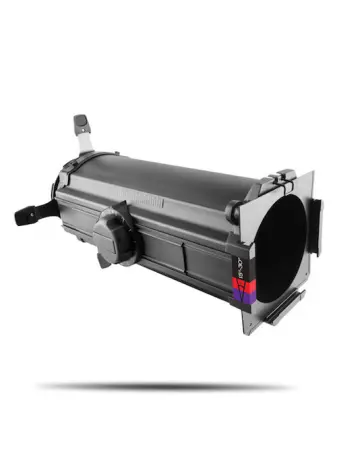

Ovation Ellipsoidal HD Lens Tubes are designed to fit all ellipsoidal fixtures as well as my other standard ERS-style fixtures. Lens tubes are constructed using high-precision HD optics encased in rugged housings designed to survive the rigors of touring, broadcast and theatrical production. Each lens tube ships with a standard size gel frame.
Features:
Variable focal length lens tube for the Ovationâ„¢ E-Series fixtures
Independent adjustment for beam angle and focal point
Dual aspheric lenses provide precise focus for crisp gobo projection
Integrated gel frame holder and gel frame included
Specifications:
OPTICAL
Installed Optics: 15°â€“30°
CONSTRUCTION / PHYSICAL
Dimensions (15°-30° lens): 9.4 x 8.5 x 20.6 in (239 x 215 x 522.8 mm)
Weight (15°-30°): 12.6 lb (5.8 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
| Beam Angle | 15°–30° degree |
| Brand | Chauvet Pro |
| Name | Chauvet Pro Ovation Ellipsoidal HD Zoom Lens (15-30 degree) |
| Build Material | Aluminum die-cast |
| Dimensions | 9.4 x 8.5 x 20.6 in (239 x 215 x 522.8 mm) mm |
| Included Accessories | Standard size gel frame |
| Mounting Options | Fits all ellipsoidal fixtures and standard ERS-style fixtures |
| Weight | 12.6 lb (5.8 kg) kg |
