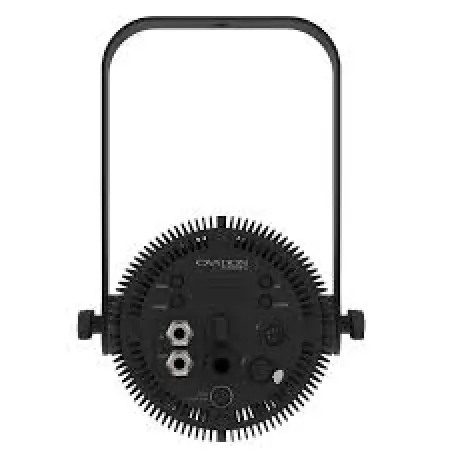

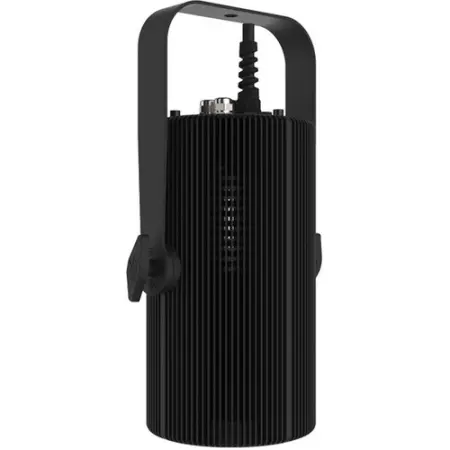

Chauvet Pro Ovation H-605FC

Ovation H-605FC takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display.

Features:

Full Color LED (RGBAL), convection cooled house light
Interchangeable lens plates to adapt to different mounting heights
5-pin XLR and terminal blocks for DMX connections
Use included yoke for pipe mounting, or suspend from integrated loop-eye
Virtual Color wheel with color matched to popular gel colors
Color Temperature Presets from 2800 K to 6500 K with high CRI and CQS
16-bit dimming for ultra-smooth fades
DMX, WDMX and RDM (Remote Device Management) for added programming flexibility
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Specifications:

Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber,
12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life
expectancy
Color Temperature (at full): 4766 K
CRI (5000 K): 90
Beam Angle (no lens): 28°
Beam Angle (w/80° filter): 40°
Beam Angle (w/65° lens): 51°
Beam Angle (w/45° lens): 39°
Beam Angle (w/25° lens): 37°
Field Angle (no lens): 60°
Field Angle (w/80° filter): 80°
Field Angle (w/65° lens): 79°
Field Angle (w/45° lens): 66°
Field Angle (w/25° lens): 37°
Dimming Modes: 4
Illuminance (no lens): 545 lux @ 5 m
Illuminance (w/80° filter): 163 lux @ 5 m
Illuminance (w/65° lens): 171 lux @ 5 m
Illuminance (w/45° lens): 349 lux @ 5 m
Illuminance (w/25° lens): 1,047 lux @ 5 m
Lumens (w/no lens): 4,410
Lumens (w/80° filter): 2,694
Lumens (w/65° lens): 3,769
Lumens (w/45° lens): 3,769
Lumens (w/25° lens): 3,938
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000
Hz, 25,000 Hz

Dynamic Effects

Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
Weight: 19.6 lb (8.9 kg)
Exterior Color: Black or White

Connections

Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)

Control

Control Protocol:, DMX, RDM, W-DMX™
DMX Channels: 1, 3, 5, 7, 10, 12, 13, 15 or HSV
Modes/Personalities: 9 personalities (1, 3, 5, 7, 10, 12, 13,
15, HSV)

Electrical

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 155 W, 1.275 A @ 120 V, 60 Hz
Power and Current: 145 W, 0.731 A @ 208 V, 60 Hz
Power and Current: 146 W, 0.662 A @ 230 V, 50 Hz

Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location

What's Included
Ovation H-605FC
65°, 45° and 25° lenses
80° filter

Chauvet Ovation H-605FC (Chauvet Pro OvationH605FC)
