Chauvet Pro Q-Wash 419Z-LED
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
Chauvet Professional Q-Wash 419Z-LED (Chauvet Pro QWash 419 Z LED)

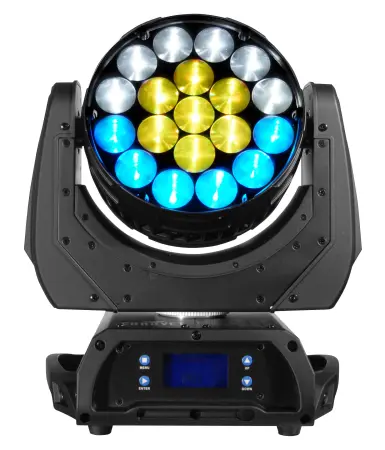

Q-Washâ„¢ 419Z-LED is a moving yoke wash using 19 quad-colored RGBW LEDs each at 15-watts, fitted for the production, touring, theatrical, installation and corporate rental markets. It produces a full range of bold saturated colors and variable whites. Built-in color macros and three individually controlled LED zones make for great visual effects. Q-Washâ„¢ 419Z-LED is equipped with a smooth flicker-free dimming curve and a versatile 7- to 25-degree zoom, making it excellent for the demands of entertainment and installation production.
Features:
• RGBW quad-color LEDs
• Smooth zoom and pan/tilt movement
• 3 zones of LED control
• 16 bit control of master dimmer and individual colors
• Flicker free operation
Specifications:
• DMX Channels: 8, 10, 21, 21 or 34
• DMX Connectors: 3- and 5-pin XLR
• Pan and Tilt: 540°/270°
• Light Source: 19 LEDs (RGBW) 285 W (1 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 7° to 25°
• Field Angle: 16° to 37°
• Viewing Angle: 120°
• Zoom Angle: 7° to 25°
• Illuminance (7°): 3,046 lux @ 5 m
• Illuminance (25°): 753 lux @ 5 m
• Color Temperature (range): 2,800 to 10,000 K
• IP Rating: IP20
• Cable Length: 5 ft (1.5 m)
• Control Connection: 3- and 5-pin XLR DMX input and output connectors
• Power Connection: Edison plug to powerCON®
• Power Input: powerCON®
• Power Linking: 5 units @ 120 V; 9 units @ 208 V; 9 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 322 W, 2.64 A @ 120 V, 60 Hz
• Power and Current: 307 W, 1.52 A @ 208 V, 60 Hz
• Power and Current: 304 W, 1.4 A @ 230 V, 50 Hz
• Weight: 22 lb (10 kg)
• Dimensions: 11.6 x 10.6 x 14.5 in (297 x 270 x 369 mm)
• Approvals: CE, MET, RoHS
