ADJ Focus Spot 5Z

200W LED Moving Head Spot Light

The ADJ Focus Spot 5Z is a 200W LED moving head spotlight designed for dynamic lighting effects in nightclubs, theaters, churches, stages, and live event productions. Powered by a cool white LED engine with an estimated 50,000-hour lifespan, this fixture features motorized focus, an adjustable 11-22° zoom, dual rotating prisms, interchangeable gobos, and two frost filters. Its compact design, advanced DMX control, and versatile optical effects make it suitable for both temporary event setups and permanent lighting installations.

ADJ Focus Spot 5Z Competitive Differences

• 200W Cool White LED Engine: Provides powerful spot lighting with an estimated 50,000-hour LED lifespan.
• Motorized Zoom and Focus: Adjustable 11-22° beam angle allows precise control over beam size and sharpness.
• Dual Rotating Prisms: Features a 5-facet linear prism and a 6-facet circular prism, both rotatable and indexable for layered beam effects.
• Dual Frost Filters: Heavy frost creates soft wash effects, while light frost softens gobo and prism projections.
• Rotating Gobo Wheel: Six removable, rotating gobos, including five aluminum and one glass gobo, enable customized projected patterns.
• Dual Color Wheels: Two separate color wheels provide multiple color selections, including CTO, CTB, and UV filter options.
• Advanced DMX Control: Features 16-bit pan and tilt control, three DMX channel modes, RDM support, and six selectable dimming modes.
• Power and DMX Linking: Locking power input/output connectors and 5-pin XLR DMX connections simplify multi-fixture setups.

ADJ Focus Spot 5Z Description

The ADJ Focus Spot 5Z combines a powerful 200W cool white LED source with precision optics to create sharp, vibrant lighting effects. Its motorized zoom adjusts from 11° to 22°, providing flexibility for narrow spot projections and wider beam coverage. Motorized focus keeps projected patterns defined at different distances, while two independent color wheels offer a variety of lighting looks for concerts, theatrical performances, DJ shows, and event installations.

The fixture features a rotating gobo wheel with six removable gobos and an open position, allowing lighting designers to project detailed patterns and textured effects. Gobo shake and rotation add movement to projections, while the two rotating and indexable prisms multiply the beam into distinct visual patterns. A heavy frost filter transforms the output into a softer wash, and a light frost filter gently blurs projected patterns for additional creative flexibility.

For lighting control, the Focus Spot 5Z supports DMX512 operation with 19, 22, and 26-channel modes, along with internal programs for standalone operation. Its 16-bit fine pan and tilt control enables precise positioning, while six dimming modes, variable strobe effects, and adjustable LED refresh rates provide flexibility for live performances and video applications. A color LCD with a six-button menu makes fixture configuration convenient, and RDM compatibility supports remote device management.

Built for touring productions and fixed installations, the Focus Spot 5Z features a compact enclosure measuring approximately 18 inches tall and weighing 23 lbs. Two cooling fans with selectable operating modes help manage operating temperatures. Locking power input and output connectors allow power linking between fixtures, while 5-pin DMX input and output connections support integrated lighting systems. The included Omega mounting bracket and locking power cable provide essential accessories for installation and operation.

Focus Spot 5Z Features

• 200W cool white LED moving head spotlight
• Estimated LED lifespan of 50,000 hours
• Motorized zoom adjustable from 11° to 22°
• Motorized focus for sharp gobo and beam projections
• Two independent color wheels with dichroic color selections
• CTO, CTB, and UV filter options
• Six removable and rotating gobos plus open position
• Gobo shake effect for animated pattern projections
• Rotating and indexable 5-facet linear prism
• Rotating and indexable 6-facet circular prism
• Heavy frost filter for soft wash lighting effects
• Light frost filter for softened gobo and prism effects
• 630° pan and 270° tilt movement
• 16-bit fine pan and tilt control
• Three DMX channel modes: 19, 22, and 26 channels
• DMX512 control and internal program operation
• RDM (Remote Device Management) compatibility
• Six selectable dimming modes
• Smooth 0-100% electronic dimming
• Adjustable strobe effects and speeds
• Adjustable LED refresh rates from 900 Hz to 25,000 Hz
• Color LCD display with six-button function menu
• USB firmware update port
• Two cooling fans with selectable fan modes
• 5-pin XLR DMX input and output
• Locking power input and output for power linking
• Compact design for touring and permanent installations
• Compatible with separately available ADJ DRC MH and QRC MH road cases

Focus Spot 5Z Specifications

• Brand: ADJ
• Model: Focus Spot 5Z
• Product Type: LED Moving Head Spot Light
• SKU: FOC520
• UPC: 818651028201
• Light Source: 200W Cool White LED Engine
• LED Lifespan: Approximately 50,000 Hours
• Zoom Range: 11° - 22°
• Focus: Motorized
• Color Wheels: 2 Independent Wheels
• Color Options: Dichroic Colors, White, CTO, CTB, UV
• Gobo Wheels: 1 Rotating Gobo Wheel
• Gobo Quantity: 6 (5 Aluminum, 1 Glass) + Open
• Gobo Functions: Removable, Rotatable, Gobo Shake
• Aluminum Gobo Dimensions: 23 mm Outer Diameter, 19 mm Viewable Diameter, 0.5 mm Thickness
• Glass Gobo Dimensions: 23 mm Outer Diameter, 19 mm Viewable Diameter, 3.3 mm Thickness
• Prism 1: Rotating/Indexable 6-Facet Circular
• Prism 2: Rotating/Indexable 5-Facet Linear
• Frost Filter 1: Heavy Frost
• Frost Filter 2: Light Frost
• Pan Range: 630°
• Tilt Range: 270°
• Pan/Tilt Resolution: 16-Bit Fine Control
• Control Protocol: DMX512, RDM
• DMX Channel Modes: 19 / 22 / 26
• Operating Modes: DMX Control, Internal Programs
• Dimming: 0-100% Electronic Dimming
• Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• Strobe: Variable Speed and Effects
• LED Refresh Rate: Adjustable, 900-25,000 Hz
• Display: Color LCD with 6-Button Menu
• Firmware Update: USB Port
• Cooling: 2 Fans with Selectable Operating Modes
• DMX Connections: 5-Pin XLR Input/Output

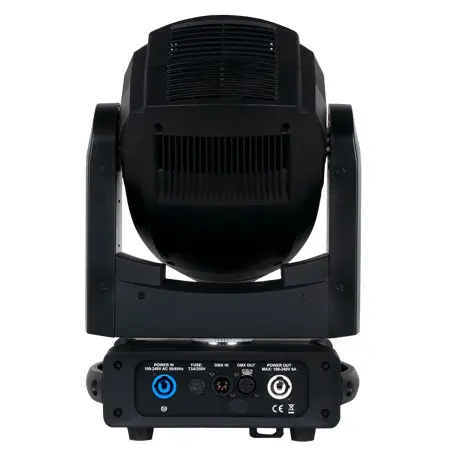

• Power Connections: Locking Power Input/Output
• Input Voltage: 90-240V AC, 50/60Hz
• Maximum Power Consumption: 280W
• Dimensions (L x W x H): 7.15 x 10.97 x 18 in (181.5 x 278.6 x 457.4 mm)
• Weight: 23 lbs (Approximately 10.4 kg)
• Certifications: ETL Approved, CE Certified

What's In The Box

• 1 x ADJ Focus Spot 5Z LED Moving Head Fixture
• 1 x Omega Mounting Bracket
• 1 x 1.83 m (6 ft) Locking Power Cable

American DJ Focus Spot 5Z (ADJ FOC520)
