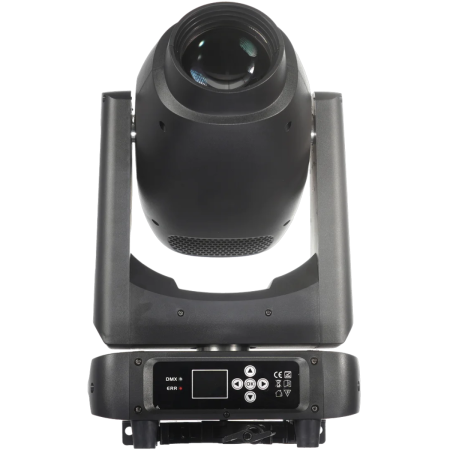

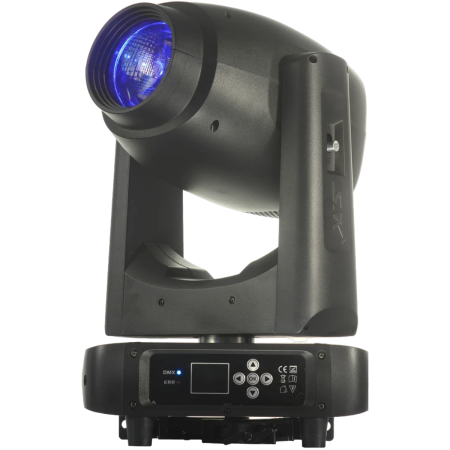

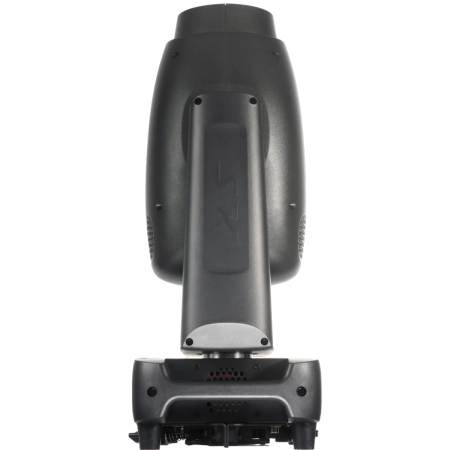

Crisp VERSATILIS 300BSW

Hybrid LED Moving Head

Crisp VERSATILIS 300BSW is a 300W LED hybrid moving head that combines beam, spot, and wash capabilities in one fixture. Its motorized 4°–34° zoom, dual rotating prisms, two gobo wheels, motorized focus, and 16-bit pan and tilt provide the flexibility needed for concerts, stages, clubs, houses of worship, and professional event productions.

Crisp VERSATILIS 300BSW Competitive Differences

• Hybrid beam, spot, and wash design with a motorized 4°–34° zoom range
• Dual independently rotating 8-facet linear and 6-facet fractal prisms for layered aerial effects
• 15 gobos across two wheels, including 8 fixed gobos and 7 rotating glass gobos
• 300W LED engine with motorized focus and 108 mm aperture
• 21-channel DMX512 control with RDM and 16-bit pan/tilt movement

Crisp VERSATILIS 300BSW Description

The Crisp VERSATILIS 300BSW is designed to cover multiple lighting roles from a single compact moving head. Its 300W LED source works with a motorized 4°–34° zoom, allowing the fixture to transition from a narrow, concentrated beam to wider spot and wash coverage. Motorized focus provides additional control over projected gobos and beam definition.

Two gobo wheels expand its creative capabilities. The fixed wheel includes 8 gobos plus open, while the rotating wheel provides 7 glass gobos plus open with independent gobo rotation. An 8-facet linear rotating prism and 6-facet fractal rotating prism can generate multiplied and layered aerial effects, while the frost effect provides a softer look when broader illumination is required.

A 9-color wheel plus white provides quick color selection and a continuous rainbow effect. The fixture also offers 0–100% linear dimming and variable strobe effects up to 25Hz, giving programmers control over everything from smooth fades to high-energy effects.

For precise positioning, the VERSATILIS 300BSW provides 540° pan and 270° tilt with 16-bit movement control. It operates with a 21-channel DMX personality and supports DMX512, RDM, and automatic operation. PowerCon input/output and 3-pin XLR DMX connections support integration into professional lighting systems, while the LCD control panel provides convenient local configuration.

VERSATILIS 300BSW Features

• 300W LED light source
• Hybrid beam, spot, and wash operation
• 4°–34° motorized zoom
• Motorized focus with fine control
• 108 mm aperture
• 9 colors plus white with rainbow effect
• Fixed gobo wheel with 8 gobos plus open
• Rotating gobo wheel with 7 glass gobos plus open
• Independent rotating gobo control
• 8-facet linear rotating prism
• 6-facet fractal rotating prism
• Independent rotation control for both prisms
• Frost effect
• 0–100% linear dimming
• Variable strobe effects up to 25Hz
• 540° pan with 16-bit control
• 270° tilt with 16-bit control
• 21-channel DMX control
• DMX512, RDM, and Auto control modes
• LCD control display

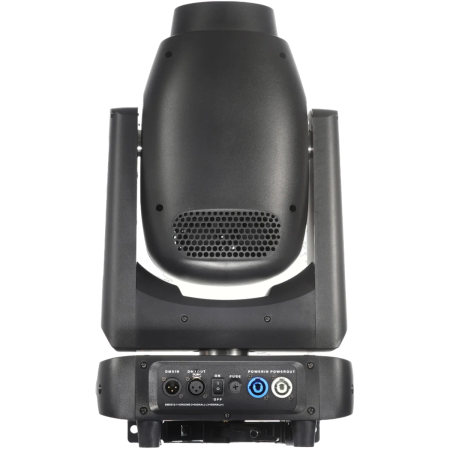

• PowerCon power input and output
• 3-pin XLR DMX input and output
• IP20-rated for indoor use

VERSATILIS 300BSW Specifications

• Light Source: 300W LED
• Power Consumption: 360W
• Input Voltage: AC 100–240V, 50/60Hz
• Aperture: 108 mm
• Beam Angle: 4°–34° Motorized Zoom
• Focus: Motorized
• Color Wheel: 9 Colors + White with Rainbow Effect
• Fixed Gobo Wheel: 8 Gobos + Open
• Rotating Gobo Wheel: 7 Glass Gobos + Open
• Prism 1: 8-Facet Linear Rotating Prism
• Prism 2: 6-Facet Fractal Rotating Prism
• Dimming: 0–100% Linear
• Strobe: Up to 25Hz
• Pan: 540°, 16-Bit
• Tilt: 270°, 16-Bit
• DMX Channels: 21
• Control Protocols: DMX512 / RDM / Auto
• DMX Connections: 3-Pin XLR In/Out
• Power Connections: PowerCon In/Out
• Display: LCD
• Protection Rating: IP20
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Dimensions: 12.3 x 8.9 x 21.5 in (313 x 226 x 545 mm)
• Weight: 32.6 lb (14.8 kg)

Cris SY-300BSW (Crisp VERSATILIS 300BSW)
