RGBW Moving Head Light Bar for Dynamic Stage and Event Lighting
The

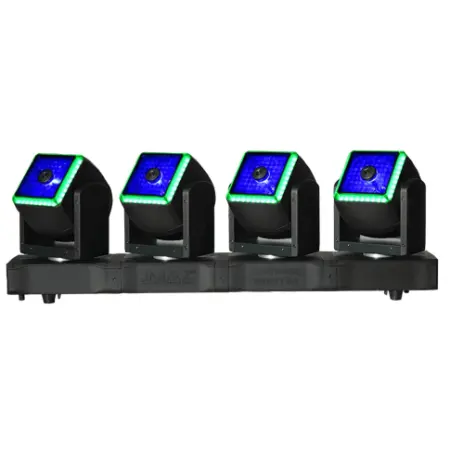

JMAZ Centipede 3SIXTY B4 is a compact, high-output moving head bar fixture built to bring dynamic and precise lighting control to clubs, concerts, mobile DJs, and fixed installations. With individually controlled heads that pan and tilt a full 360°, plus RGB SMD LED ring effects, this fixture is a versatile tool for creative lighting professionals.
JMAZ Centipede 3SIXTY B4 Competitive Differences
- 4x 60W RGBW LEDs delivering powerful, vibrant beams
- 120x 0.2W RGB SMD LEDs for dynamic ring effects
- Full 360° infinite pan/tilt control on each individual head
- Individual pixel control and ring effect macros
- 3.5° beam angle for sharp and focused beams
- 16-bit RGBW color mixing with tunable CTO from 2500K–8000K
- Runs in 4 DMX modes: 25/47/69/90 channels
- Supports DMX512 (5-pin), Art-Net, RDM, sACN, and Kling-Net protocols
- TRUE1 In/Out power connectors for reliable daisy-chaining
- Includes mounting hardware, DMX cable, and power cable
- Certified CE, cETL, FCC, and RoHS for safety and compliance
JMAZ Centipede 3SIXTY B4 Description
The
JMAZ Centipede 3SIXTY B4 delivers high-impact lighting effects in a compact and efficient moving head bar. Each of the four heads contains a 60W RGBW LED with precise 360° pan/tilt movement, allowing designers full control of beam direction and motion. The addition of RGB SMD ring lights around each head enhances visual impact with vibrant color effects and macros that can be triggered individually or simultaneously.
With advanced 16-bit color mixing and an adjustable CTO range from 2500K to 8000K, the fixture offers exceptional color precision. Built-in virtual colors and foreground/background movement macros streamline programming without compromising on creativity. Its compatibility with a wide range of control protocols—DMX512, Art-Net, RDM, sACN, and Kling-Net—ensures seamless integration into professional lighting setups.
Ideal for live events, touring productions, or venue installations, the B4 offers premium features in a rugged and reliable package. TRUE1 In/Out connectors allow for secure power connections, and included hardware ensures fast setup and safe mounting.
Centipede 3SIXTY B4 Features
- Four (4) 60W RGBW LEDs
- One hundred twenty (120) 0.2W RGB SMD LEDs for ring effects

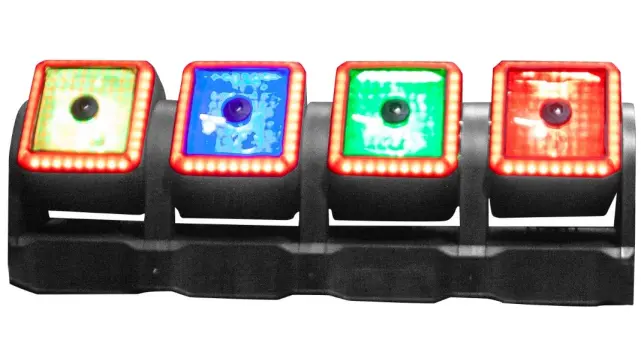

- Individual head pixel control
- Individual 360° infinite pan and tilt for each head
- Dynamic ring color and effect macros
- Built-in virtual colors and movement macros
- Foreground and background color control
- 16-bit RGBW color mixing
- Color temperature adjustable from 2500K to 8000K
- TRUE1 In/Out power connectors
- 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net compatibility
Centipede 3SIXTY B4 Specifications
- LED Light Source: 240W total (4 x 60W RGBW LEDs)
- Ring Light Source: 24W total (120 x 0.2W RGB SMD LEDs)
- Beam Angle: 3.5°
- Color Mixing: 16-bit RGBW
- CTO Range: 2500K – 8000K
- DMX Modes: 25 / 47 / 69 / 90 channels
- Control Protocols: 5-pin DMX512, Art-Net, RDM, sACN, Kling-Net
- Certifications: CE, cETL, FCC, RoHS
- Power Connections: TRUE1 In/Out
- Dimensions: 31″ x 6.6″ x 10.5″ (787mm x 168mm x 267mm)
- Weight: 33.95 lbs (15.4 kg)
- UPC: 618528599069
What's In The Box
- 1x Centipede 3SIXTY B4 Fixture
- 1x TRUE1 Power Cable
- 1x 5-Pin DMX Cable
- 2x Omega Brackets
- 2x Safety Cables
- 1x User Manual
J Maz JP1005
(JMAZ 360 B4)
