IP65-Rated RGBW Wash Light with Pixel Mapping and Zoom
The

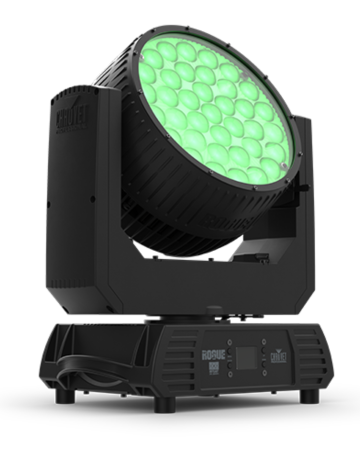

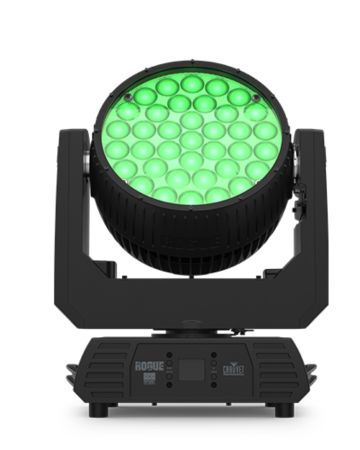

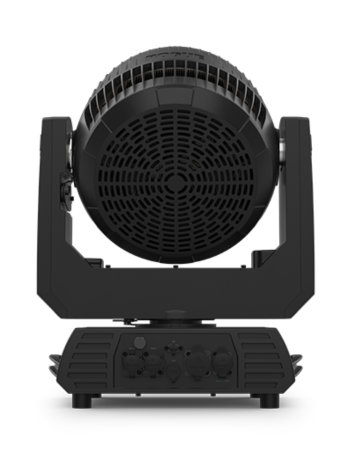

Chauvet Pro Rogue Outcast 3X Wash is a high-powered IP65-rated LED wash fixture built for versatility, performance, and durability. With 37 intense 25W RGBW LEDs arranged across 9 pixel-mappable zones, fast pan/tilt movement, and a motorized zoom, this fixture offers exceptional beam-to-wash transitions and color mixing. Its robust design and alloy-armored housing ensure reliable operation indoors or outdoors, even in demanding conditions.
Chauvet Pro Rogue Outcast 3X Wash Competitive Differences
- IP65-rated for rugged all-weather use, perfect for both indoor and outdoor applications.
- 37 RGBW LEDs at 25W each for brilliant, high-output performance.
- Zoom range enables smooth transitions from tight beam to wide wash.
- 9 pixel-mappable zones for advanced visual effects and LED zone control.
- Selectable calibrated white for on-camera use (7500K at full output).
- Multiple DMX personalities (21 to 107 channels) for programming flexibility.
- Built-in OLED display for intuitive configuration and menu navigation.
- Selectable PWM options for flicker-free camera operation.
- 16-bit dimming of master and individual color channels for ultra-smooth fades.
- Fast, fluid 540° pan and 270° tilt movement for dynamic beam positioning.
Chauvet Pro Rogue Outcast 3X Wash Description
The
Chauvet Pro Rogue Outcast 3X Wash is engineered to deliver maximum visual impact and reliability across a wide range of professional lighting environments. This IP65-rated wash fixture houses 37 RGBW LEDs, each delivering 25 watts of output, and is capable of producing vibrant color washes, pixel-mapped effects, and dynamic movements with precision.
Its rugged construction features a lightweight aluminum/magnesium alloy housing that resists dust, rain, and impact — making it ideal for touring, festivals, outdoor stages, and permanent installations. The fast motorized zoom allows seamless transitions from tight beam effects to wide washes, while 9 independent LED zones provide enhanced pixel control. With selectable PWM rates, multiple dimming curves, and a calibrated white mode, this fixture is also optimized for broadcast and film use.
Advanced features like RDM support, 4 DMX personalities, and a USB-C port for software updates ensure the Rogue Outcast 3X Wash fits seamlessly into any lighting rig. Whether you're lighting a high-energy concert or a corporate event, this fixture is a powerful, reliable workhorse.
Rogue Outcast 3X Wash Features
- Fully-featured IP65 RGBW LED yoke wash with zoom and pixel control.
- 37 RGBW LEDs, 25W each, with excellent color blending and output.
- 9 LED zones for pixel-mapped effects.
- Fast and smooth 540° pan and 270° tilt movement.
- Selectable calibrated white at 7500K for on-camera use.
- 16-bit dimming on master and individual color channels.
- 6 dimming modes and 4 selectable dim curves.
- Selectable PWM settings for flicker-free video operation.
- Motorized zoom for adjustable beam spread.
- Simple and complex DMX personalities (21, 62, 71, 107 channels).
- Easy-to-read OLED menu display with intuitive navigation.
- USB-C port for firmware updates.
Rogue Outcast 3X Wash Specifications
- Pan/Tilt Range: 540° / 270° (multiple ranges selectable)
- Strobe Rate: 0 to 25 Hz
- Zoom: Motorized zoom
- Control Protocols: DMX, RDM
- DMX Channels: 21, 62, 71, 107 (4 personalities)
- Power Input: Seetronic PowerKON IP65
- Power Linking: 2 units @ 120V; 3 units @ 208V/230V
- Power Consumption: 711W @ 120V; 701W @ 208V; 695W @ 230V
- Operating Temp: -4°F to 113°F (-20°C to 45°C)
- Housing Material: High-impact flame-retardant polymer
- Dimensions: 15.59 x 11.73 x 17.20 in (396 x 298 x 437 mm)
- Shipping Size: 23.62 x 14.17 x 18.70 in (600 x 360 x 475 mm)
- Weight: 38.2 lb (17.38 kg)
- IP Rating: IP65 (temporary outdoor/wet use)
What's In The Box
- Chauvet Pro Rogue Outcast 3X Wash fixture
- Seetronic PowerKON IP65 power cord
- (2) 140D Omega brackets with mounting hardware
Chauvet Rogue Outcast 3XWash
(Chauvet Pro Rogue Outcast 3X)
