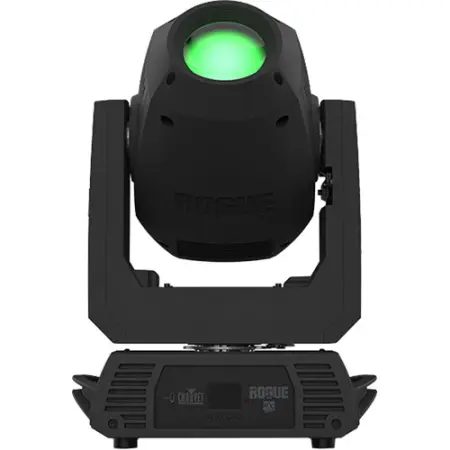

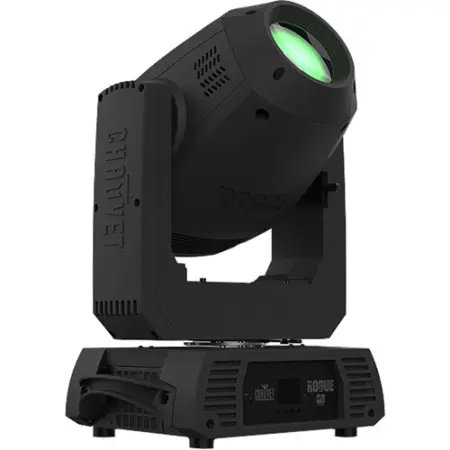

Compact LED Moving Head for Powerful Spot Lighting Effects
Chauvet Pro Rogue R1E Spot is a compact, lightweight moving head fixture designed to deliver professional-quality spot lighting with stunning output and flexibility. Powered by a 200W LED engine, it’s ideal for stage productions, touring rigs, and installations where space and power consumption are key considerations. With advanced features like dual gobo wheels, a 3-facet rotating prism, and selectable PWM settings, this fixture brings high-impact visuals to any lighting design.
Chauvet Pro Rogue R1E Spot Competitive Differences
- Bright 200W LED engine with 17,900 source lumens and 12,210 output lumens
- Dual gobo wheels: 1 rotating/interchangeable and 1 static scrolling
- 3-facet motorized rotating prism for dynamic aerial effects
- Motorized iris and frost for precise beam shaping
- Select LED output mode to match legacy Rogue R1X Spot fixtures
- Selectable PWM settings for flicker-free performance on camera
- RDM enabled for remote configuration and diagnostics
- True 1-compatible Seetronic PowerKon input/output connections
- Simple (16ch) and complex (19ch) DMX profiles for control flexibility
Chauvet Pro Rogue R1E Spot Description
The
Rogue R1E Spot is engineered for designers and technicians seeking versatility in a compact form factor. Its intense 200W cool white LED source delivers crisp beams and vibrant projections, supported by a beam angle of 15.3° and field angle of 18.7°, making it ideal for gobo projections and aerial effects.
The unit's advanced optical and dynamic features—like dual gobo wheels and a 3-facet rotating prism—allow for seamless gobo morphing and complex mid-air effects. With motorized focus, iris, and frost, users can refine beam characteristics to meet any creative demand. DMX and RDM control support programming ease and remote troubleshooting, while selectable PWM frequencies ensure broadcast-friendly operation.
Designed for real-world rigors, the fixture is built from aluminum die-cast and flame-retardant polymer materials. Power linking and multi-voltage operation make it a tour-ready choice, and with a weight of just over 31 lbs, it's easy to integrate into any mobile or permanent setup.
Rogue R1E Spot Features
- 200W cool white LED engine with 50,000-hour life expectancy
- 3-facet motorized rotating prism for enhanced beam effects
- Motorized iris and frost for beam shaping
- Motorized focus with crisp projection quality
- Dual gobo wheels: one rotating/interchangeable and one static
- Color wheel with 8 colors + white and split color effects
- Selectable LED output level to match Rogue R1X Spot
- Selectable PWM rates (600 Hz to 15,000 Hz) for flicker-free video
- Electronic dimmer and shutter/strobe with 0–22 Hz strobe rate
- RDM enabled for remote addressing and diagnostics
- True 1-compatible Seetronic PowerKon input/output
- 3- and 5-pin DMX connectors
- Software updates via USB-C
Rogue R1E Spot Specifications
- Light Source: 200W CW LED (7423K), 50,000 hours
- CRI: 68
- Beam Angle: 15.3°
- Field Angle: 18.7°
- Cutoff Angle: 20.3°
- Output Lumens: 12,210
- Illuminance: 9,021 lux @ 16.4 ft (5 m)
- Pan: 540°, Tilt: 270° (selectable ranges)
- DMX Channels: 16 or 19
- Control Protocols: DMX, RDM
- Input Voltage: 100–240V AC, 50/60Hz (auto-ranging)
- Power Consumption: 315W @ 120V, 306W @ 208V, 303W @ 230V
- Power Linking: 4 units @ 120V, 8 units @ 208V/230V
- IP Rating: IP20 (dry locations)
- Certifications: CE, MET, FCC, UKCA
- Dimensions: 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
- Weight: 31.2 lb (14.2 kg)
What's In The Box
- Rogue R1E Spot fixture
- Seetronic PowerKon power cord
- 2x 140D Omega brackets with mounting hardware
Chauvet Professional ROGUE R1E Spot
(Chauvet Pro Rogue R1E)
