Color Key Scorpius FX

RGBW Beam Light with Infinite Rotation and Precision Optics

ColorKey Scorpius FX is a powerful 240W RGBW LED beam effect fixture designed to deliver stunning, high-intensity light shows with precision and flexibility. Perfect for DJs, performers, clubs, and event spaces, it features six 40W RGBW LEDs, sharp 2° optics, and full movement capabilities to create immersive lighting displays in any venue.

ColorKey Scorpius FX Competitive Differences

• 240W total output from 6 x 40W 4-in-1 RGBW LEDs
• High-precision optical lenses produce razor-sharp 2° beams
• Infinite head rotation and 320° tilt for full-motion beam effects
• Flexible control modes: DMX512, Auto, Master/Slave, Sound Active
• 14-channel and 16-channel DMX operation for advanced programming
• Smooth 0–100% linear dimming for seamless transitions
• Strobe rate adjustable up to 20 flashes per second (20Hz)
• Intuitive 1.77-inch full-color LCD display for easy navigation

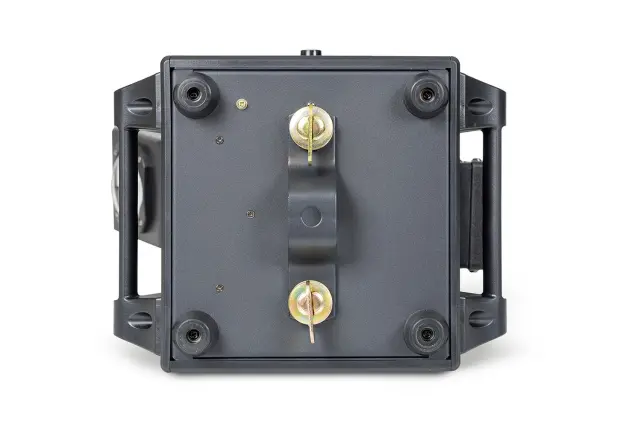

• Quick-release mounting bracket included for fast setup

ColorKey Scorpius FX Description

The ColorKey Scorpius FX redefines professional lighting with powerful output, ultra-sharp beams, and fluid motion. Its 6 x 40W RGBW LEDs create vivid, saturated color effects while the narrow 2° beam angle ensures laser-like precision. Thanks to its infinite pan and wide 320° tilt, you can produce sweeping and dynamic beam shows from nearly any angle.

Ideal for mobile DJs, stage productions, and club installations, the Scorpius FX adapts easily to your environment with versatile control options. Whether you're using DMX512 for detailed programming or letting the fixture run in Sound Active or Auto mode, your show will be eye-catching and unique every time.

Advanced features like high-speed strobe (up to 20Hz), 0–100% dimming, and a vibrant LCD display make customization effortless. Lightweight and compact, it’s easy to transport and install without compromising on performance.

Scorpius FX Features

• 6 x 40W RGBW 4-in-1 LEDs (240W total)
• 2° beam angle with high-precision optics
• Infinite pan rotation and 320° tilt movement
• DMX512, Auto, Sound Active, and Master/Slave control modes
• Selectable 14CH or 16CH DMX profiles
• 0–100% smooth linear dimming
• Adjustable strobe speed up to 20Hz
• 1.77” full-color LCD display
• Quick-release mounting bracket included

Scorpius FX Specifications

• Light Source: 6 x 40W RGBW 4-in-1 LEDs
• Beam Angle: 2°
• Illuminance: 65,000 Lux @ 6.5 ft (2 m) per LED
• Dimming: 0–100% linear
• Strobe Rate: Up to 20Hz
• DMX Channels: 14CH / 16CH
• Control Modes: DMX512, Auto, Sound Active, Master/Slave
• Pan: Infinite
• Tilt: 320°
• Display: 1.77” color LCD
• Voltage: AC100-240V, 50/60Hz
• Power Consumption: 240W
• Dimensions: 13.3 x 10.4 x 8.2 in (338 x 265 x 207 mm)
• Weight: 12.8 lbs (5.8 kg)

What's In The Box

• ColorKey Scorpius FX LED Beam Fixture
• Quick-release mounting bracket
• Power cable
• User manual
