Crown XLi 800

2-Channel Rackmount Power Amplifier

Crown XLi 800 is a 2-channel rackmount power amplifier built for musicians, DJs, houses of worship, and live venues requiring reliable, clean power. With selectable stereo, parallel, and bridge-mono modes, along with flexible input and output connectivity, it delivers dependable performance for a wide range of sound reinforcement applications.

Crown XLi 800 Competitive Differences

• 300W per channel at 4 ohms and 600W bridged at 8 ohms
• Balanced XLR and RCA inputs with speakON and binding post outputs

Crown XLi 800 Description

The Crown XLi 800 is a Class-AB stereo power amplifier engineered to provide consistent output and long-term reliability. Delivering 300W per channel at 4 ohms, 200W per channel at 8 ohms, and up to 600W at 8 ohms in bridged-mono mode, it is well-suited for powering passive PA speakers, stage monitors, and installed sound systems.

The amplifier supports stereo, parallel, and bridge-mono operation, offering flexibility for various system configurations. User-selectable input sensitivity (0.775V or 1.4V) allows proper gain matching with mixers and signal sources. Connectivity includes electronically balanced XLR inputs, unbalanced RCA inputs, and both speakON NL4 and binding post speaker outputs.

Designed for dependable performance, the XLi 800 incorporates forced-air cooling with variable-speed fan control to prevent thermal buildup during demanding sessions. Protection circuitry guards against short circuits, reactive or mismatched loads, thermal overload, RF interference, and on/off thumps, ensuring safe operation in live and installed environments.

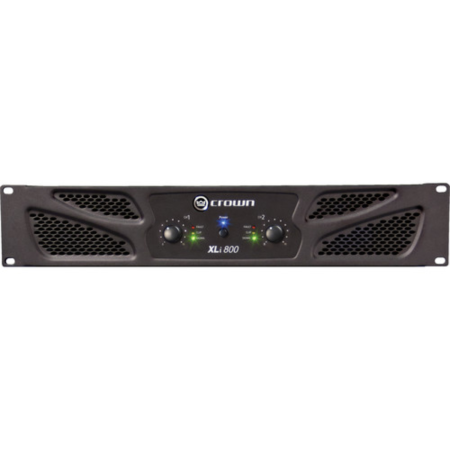

Front-panel LED indicators provide clear monitoring of power status, signal presence, clipping, and fault conditions for each channel. Housed in a durable 2U rackmount chassis, the amplifier integrates easily into standard equipment racks for mobile rigs or permanent installations.

XLi 800 Features

• 2-channel Class-AB power amplifier
• 300W per channel at 4 ohms
• 200W per channel at 8 ohms
• 600W bridged at 8 ohms
• Stereo, parallel, and bridge-mono modes
• User-selectable input sensitivity (0.775V or 1.4V)
• Balanced XLR and unbalanced RCA inputs
• Binding post and speakON NL4 speaker outputs
• Forced-air cooling with variable-speed fan
• LED indicators for power, signal, clip, and fault
• Protection: short circuit, thermal, RF, reactive/mismatched load, on/off muting

XLi 800 Specifications

• Amplifier Class: Class-AB
• Power Output: 2 x 300W RMS at 4 Ohms
• Power Output: 2 x 200W RMS at 8 Ohms
• Bridged Output: 600W RMS at 8 Ohms
• Frequency Response: 20 Hz – 20 kHz (+0/-1 dB at 1W)
• Damping Factor: > 200 at 8 Ohms
• SNR: > 100 dB
• THD: ≤ 0.5% (Full Range, Below Rated Power)
• IMD: ≤ 0.35%
• Crosstalk: -75 dB (1 kHz), -59 dB (20 kHz)

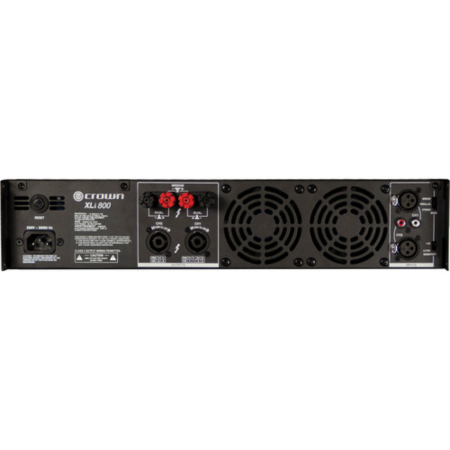

• Inputs: 2 x XLR 3-pin balanced, 2 x RCA unbalanced
• Outputs: 2 x speakON NL4, 2 x binding post pairs
• AC Input: 120V AC, 60 Hz
• Power Connector: IEC 15A
• Rack Size: 2U
• Dimensions: 19 x 12.4 x 3.5" (48.3 x 31.5 x 8.9 cm)
• Weight: 25.1 lb (11.4 kg)
• Package Weight: 28.4 lb
• Box Dimensions: 22 x 21 x 5.5"

Crown XLi800 (Crown XLi-800)
