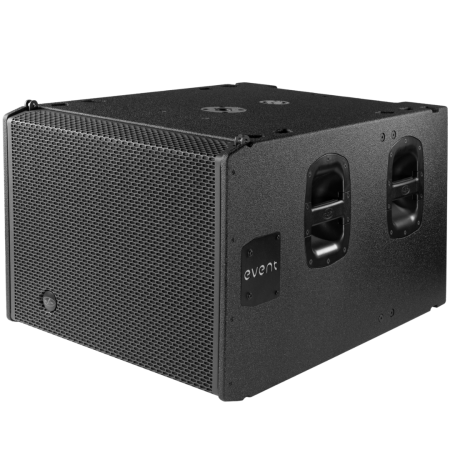

High-Output 18" Powered Subwoofer for Ground Stack or Flown Arrays
The
DAS EVENT-118A is a rugged and powerful powered subwoofer engineered to deliver deep, high-impact bass in professional sound reinforcement systems. As the companion subwoofer for the EVENT-28A line array, it shares a compatible rigging system for seamless integration whether ground-stacked or flown. Its robust construction, efficient Class D amplification, and optimized transducer design make it an ideal solution for mobile and installed applications requiring premium low-frequency performance.
DAS EVENT-118A Competitive Differences
- 2000W peak Class D amplifier with integrated DSP for high-output bass with minimal distortion
- Custom 18” DAS 18FWN LF driver with neodymium magnet and 3" voice coil for maximum efficiency and excursion
- DAScontrol™ digital interface for fast and easy preset selection, including cardioid configurations
- Front-loaded birch plywood cabinet with ISO-flex protective coating for touring and permanent installs

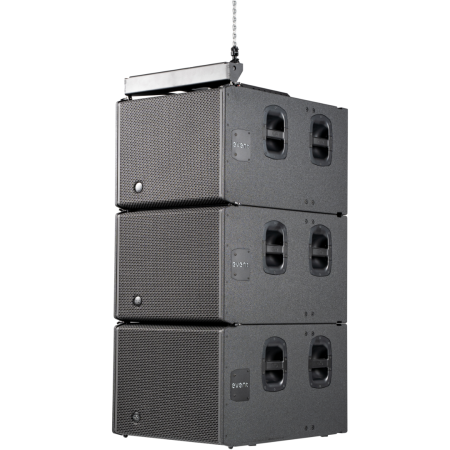

- Fully compatible rigging system with EVENT-28A for flown or stacked setups
- Pole-mount socket on top for satellite speaker mounting
DAS EVENT-118A Description
The EVENT-118A subwoofer from DAS Audio offers deep, defined low-end reinforcement thanks to its front-loaded 18” transducer and advanced Class D amplification. Featuring the proprietary 18FWN driver with neodymium magnets and a 3” voice coil, this system handles up to 2000W of peak power while delivering high SPLs of up to 134 dB. The driver’s FEA-optimized design and cooling enhancements—like a vented pole piece and apertures in the back plate—reduce power compression, ensuring consistent performance even during long events.
Equipped with dual XLR inputs and loop-throughs, the EVENT-118A easily integrates into multi-speaker systems, including its natural pairing with the EVENT-28A. The built-in DAScontrol™ DSP interface provides quick access to system presets, including cardioid modes when using multiple subs for directional bass control—ideal for stages and venues requiring reduced rear spill.
The enclosure is built from durable birch plywood and finished with ISO-flex coating for maximum protection against the rigors of the road. The subwoofer's captive rigging system is designed to perfectly align with EVENT-28A modules, offering flexible deployment in flown or stacked configurations. For ground stack use, a pole mount socket is provided for supporting full-range tops.
EVENT-118A Features
- Powered 18" front-loaded subwoofer with high SPL capability
- 2000W peak / 1000W continuous Class D amplifier
- Proprietary 18FWN DAS LF driver with neodymium motor
- Built-in DSP with user-friendly DAScontrol™ interface
- Preset options for cardioid arrays (in 2- or 3-sub configurations)

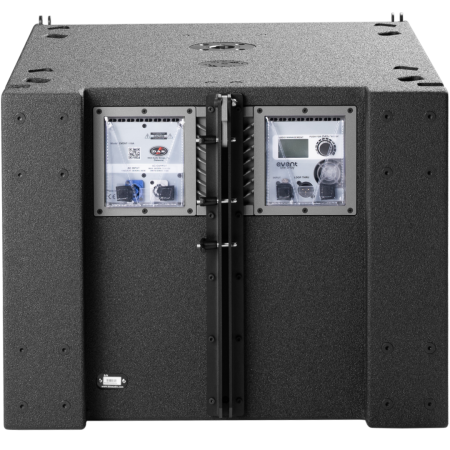

- PowerCON and XLR in/out connectors for easy system chaining
- Flyable and stackable with matching rigging hardware for EVENT-28A
- Durable birch plywood enclosure with black ISO-flex finish
- Pole mount socket for satellite speaker support
EVENT-118A Specifications
- Frequency Range (-10 dB): 35 Hz – 125 Hz
- Max Peak SPL @ 1m: 134 dB
- Amplifier Power: 1000W continuous / 2000W peak
- Input Type: Balanced XLR (2 x female in / 2 x male loop thru)
- Input Impedance: 20 kΩ
- Input Sensitivity: 1.95 V (+8 dBu)
- DSP Control: DAScontrol™ interface
- Power Connector: powerCON NAC3MPB
- Current Draw (230V / 115V): 2.1 A / 4.2 A
- Construction: Birch plywood
- Finish: ISO-flex black coating
- Rigging: Captive rigging system (compatible with EVENT-28A)
- Mounting: Pole mount socket on top
- Dimensions (H x W x D): 20.0 x 25.0 x 33.0 in (510 x 635 x 840 mm)
- Net Weight: 94.8 lb (43.0 kg)
- Shipping Dimensions (H x W x D): 22.0 x 27.2 x 36.2 in (560 x 690 x 920 mm)
- Shipping Weight: 108.0 lb (49.0 kg)
DAS EVENT118A
(DAS EVENT-118A)
