High-Powered 12-Inch 3-Way Line Array Module for Professional Sound Reinforcement
The
D.A.S. Audio EVENT-212A is a top-tier powered line array module, delivering 3000W of peak power through a three-way design. Perfect for large-scale live sound applications, this speaker provides excellent coverage, high SPL output, and advanced DSP control, making it ideal for concerts, theaters, corporate A/V, and live music venues.
D.A.S. Audio EVENT-212A Competitive Differences
- 3000W peak Class-D tri-amplifier for powerful audio performance
- Advanced DSP with DAScontrolâ„¢ and LCD interface for easy setup
- Dual 12" woofers and 1.5" compression driver for a wide frequency response (60 Hz to 20 kHz)
- 135 dB peak SPL for impactful sound in large venues
- 90° horizontal dispersion with an injected aluminum waveguide for precise coverage
- Robust birch plywood enclosure with ISO-flex finish and quick-rigging hardware for fast deployment
- Compatible with EVENT-218A and EVENT-121A subwoofer systems for enhanced low-end support
D.A.S. Audio EVENT-212A Description
The
D.A.S. Audio EVENT-212A is engineered for demanding professional sound reinforcement, offering a 12-inch, three-way design with a peak power capacity of 3000W. Its powerful tri-amplified setup drives 1000W to each of the two 12" woofers and the 1.5" compression driver, delivering clear, full-range sound with a frequency response from 60 Hz to 20 kHz. With a peak SPL of 135 dB, the EVENT-212A is perfect for filling large spaces, from auditoriums and theaters to live music clubs and outdoor events.
The integrated

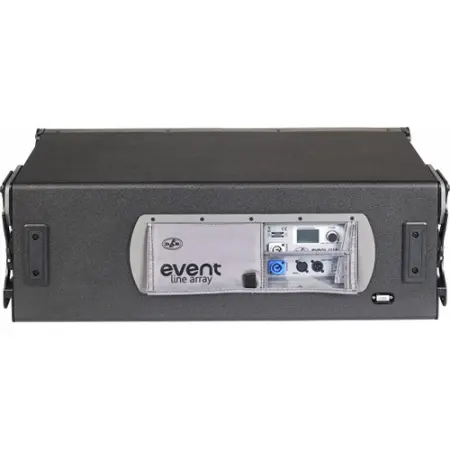

DAScontrolâ„¢ DSP interface allows for precise adjustment of settings, including high-pass filters, throw distance compensation, and array configuration presets. This makes it simple to optimize the system for different environments and applications. The rear panel includes balanced XLR input and loop-thru output for easy audio daisy-chaining, as well as powerCON input and output for streamlined power management.

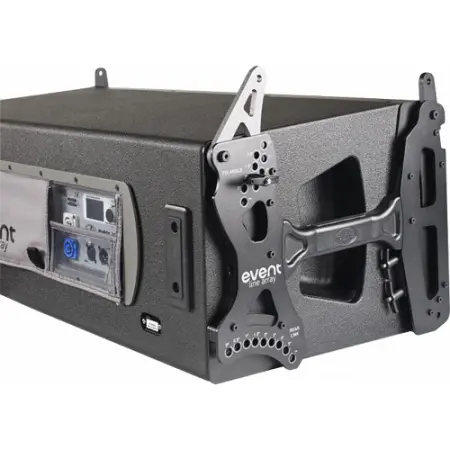

The EVENT-212A’s trapezoidal birch plywood enclosure is designed for durability and ease of use, featuring ISO-flex paint for added protection. The built-in rigging system supports up to 16 modules per hang, making it easy to deploy in various configurations, whether flown or ground-stacked. This flexibility makes the EVENT-212A a powerful addition to any large-scale sound system.
EVENT-212A Features
- Dual 12" woofers and 1.5" compression driver for full-range sound
- 3000W peak Class-D tri-amplified system (1000W per band)
- Advanced DSP with FIR filters for precise audio control
- DAScontrolâ„¢ LCD interface for easy setup and alignment
- High-pass filter settings: Off, 80, 100, 125 Hz
- Splay angle presets for optimized array performance
- 90° horizontal dispersion with aluminum waveguide
- Durable ISO-flex finish and birch plywood construction
- Quick-rigging hardware for fast and secure setup
- Balanced XLR input and loop-thru output for easy connectivity
EVENT-212A Specifications
- Configuration: Active 3-Way Line Array Module
- Total Power Capacity: 3000W Peak
- Amplifier Power:
- LF: 1000W Peak / 500W RMS
- MF: 1000W Peak / 500W RMS
- HF: 1000W Peak / 500W RMS
- Frequency Range (-10 dB): 60 Hz – 20 kHz
- Maximum Peak SPL: 135 dB
- Coverage Angle: 90° Horizontal
- Input Sensitivity: +18 dBu
- Input Impedance: 20 kΩ Balanced
- Audio Inputs:
- 1 x XLR 3-Pin Female (Line Input)
- 1 x XLR 3-Pin Male (Thru Output)
- Signal Processing: FIR Filter
- Power Requirements: 90-250 VAC, 50/60 Hz
- Power Draw: 3.6 A (100 V) / 1.8 A (230 V)
- Enclosure: Birch Plywood with ISO-flex Paint
- Dimensions: 12.8 x 33.7 x 17.1 in (325 x 855 x 435 mm)
- Weight: 90.4 lb (41 kg)
What's In The Box
- D.A.S. Audio EVENT-212A Powered 3-Way Line Array Module
- powerCon Power Cord
- Limited 2-Year Warranty
- User Manual
