High-Performance Line Array Speaker for Long-Throw Audio Applications
The

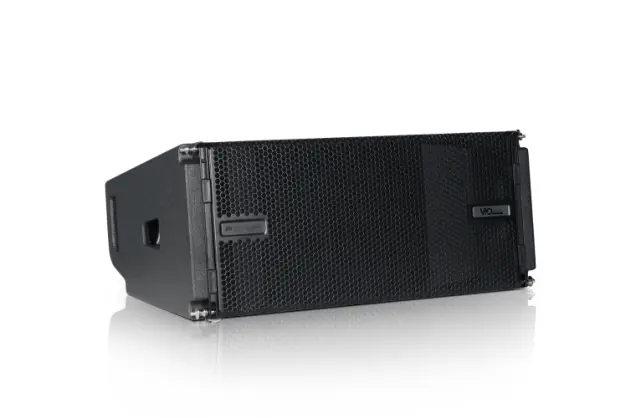

dBTechnologies VIO L210 is a powerful 2-way active line array system designed for large-scale sound reinforcement applications. Its innovative acoustic design, premium transducers, and advanced DSP ensure unparalleled audio clarity and projection, making it ideal for concerts, touring events, and professional installations.
dBTechnologies VIO L210 Competitive Differences
- Unique Acoustic Design: Custom-engineered woofers and compression driver for enhanced performance.
- Advanced DSP Processing: FIR filters for consistent, long-distance sound coverage.
- Integrated RDNet Control: Network-ready for remote monitoring and management.
- Smart Rigging System: Built-in 3-point rigging hardware for quick and precise setup.
- Durable Construction: Polyurea-coated wooden enclosure for rugged outdoor and indoor use.
dBTechnologies VIO L210 Description
The

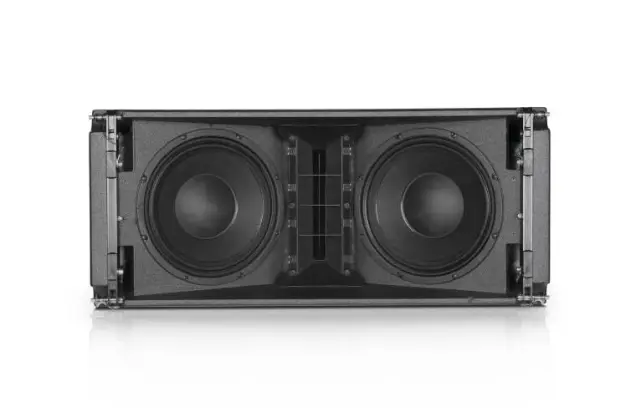

dBTechnologies VIO L210 combines premium acoustic components with advanced sound processing to deliver exceptional performance in demanding environments. Its dual 10” low-frequency drivers with aluminum phase plugs and a 1.4” compression driver ensure precise audio reproduction with extended low-end response and crystal-clear highs.
The integrated 900W RMS Class-D Digipro G3 amplifier provides a maximum SPL of 135 dB, delivering power and clarity even at long distances. Advanced DSP with 56-bit FIR filters ensures linear phase response and superior sound dispersion.
Designed for efficiency, the VIO L210 features smart rigging hardware with automatic locking and adjustable splay angles. The lightweight yet durable plywood housing, coated with protective polyurea, withstands the rigors of touring and outdoor events.
VIO L210 Features
- 2-Way Active Line Array System
- Integrated RDNet Remote Control

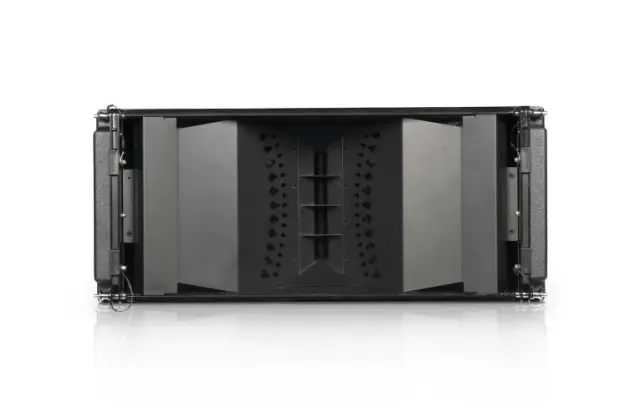

- Exclusive Waveguide for Precise Directivity
- Custom-Designed Aluminum Phase Plugs
- Advanced DSP with FIR Filters
- Class-D Digipro G3 Amplifier with 900W RMS Power
- Neodymium Transducers for High Efficiency
- Auto-Locking Rigging Hardware
- Polyurea-Coated Plywood Enclosure for Durability
VIO L210 Specifications
- Speaker Type: 2-way Active Line Array Module
- Usable Bandwidth: 67 - 20,000 Hz (-6 dB)
- Frequency Response: 78 - 18,100 Hz (+/- 3dB)
- Maximum SPL: 135 dB
- HF Driver: 1.4" Neodymium, Titanium Diaphragm
- LF Drivers: 2 x 10" Neodymium with Aluminum Phase Plugs
- Amplifier Power: 900W RMS (1800W Peak)
- Amplifier Class: Class-D Digipro G3
- Controller: 56-bit DSP with FIR Filters
- Input: XLR (Balanced) IN/OUT
- Network: RDNet Remote Control (RJ45 IN/OUT)
- Power Supply: 900W SMPS with Auto-Range PSU
- Dimensions (W x H x D): 720 mm x 320 mm x 520 mm (28.35 in x 12.6 in x 20.47 in)
- Weight: 28.6 kg (63.00 lbs)
With the
dBTechnologies VIO L210, experience cutting-edge sound reinforcement technology that combines high output, accurate audio performance, and user-friendly operation. Perfect for professional sound engineers and touring events requiring unmatched performance and reliability.
dBTechnologies Vio L210
(dB Tech VIO-L210)
