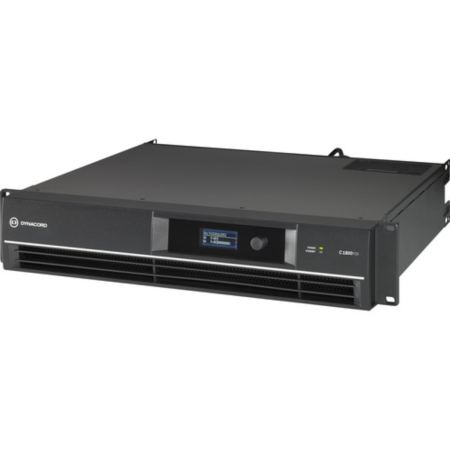

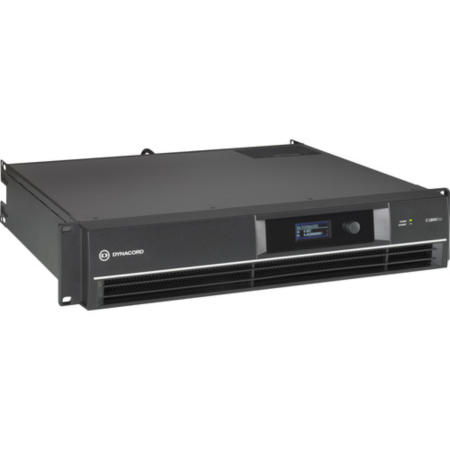

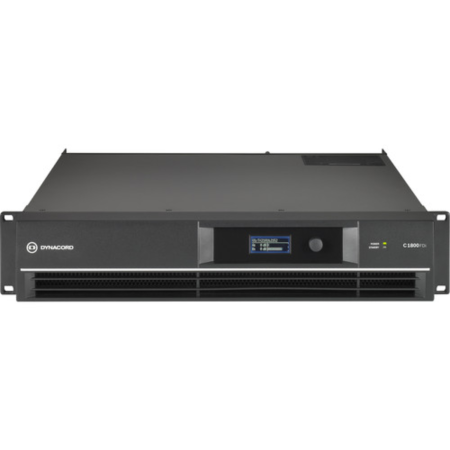

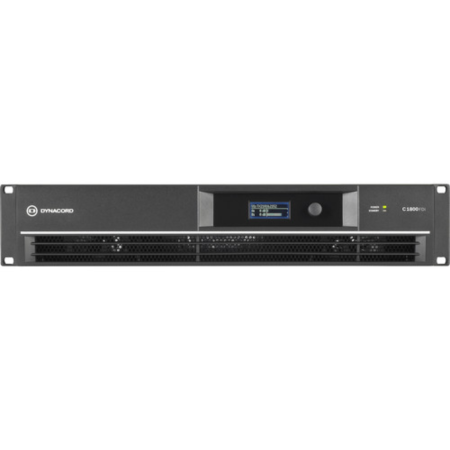

Dynacord C1800FDi

Installation Power Amplifier

Dynacord C1800FDi is a 2-channel installation power amplifier designed for permanent sound systems that require strong output, flexible speaker-line support, and advanced onboard DSP. With FIR-Drive speaker processing, Euroblock connections, low-Z and 70V/100V operation, and professional protection circuitry, it is built for background music, live music, paging, and distributed audio applications.

Dynacord C1800FDi Competitive Differences

• Delivers up to 2 x 1400W at 2 ohms, 2 x 850W at 4 ohms, and 2 x 450W at 8 ohms in dual-channel mode
• Supports low-impedance operation plus direct 70V and 100V high-impedance speaker lines
• Integrated DSP includes FIR filters, PEQ, 31-band GEQ, crossovers, limiters, delay, and channel grouping
• Euroblock connectors simplify wiring for permanent installation applications
• Single-channel, dual-channel, and bridged modes provide flexible system design options
• Advanced protection circuitry helps protect the amplifier and connected loudspeakers

Dynacord C1800FDi Description

The Dynacord C1800FDi is engineered for installed audio systems in bars, restaurants, houses of worship, sports facilities, performing arts centers, and other venues that need reliable amplification with professional loudspeaker processing. Its robust power supply and Class-AB amplifier topology provide stable performance for demanding permanent installation environments.

In dual-channel operation, the amplifier delivers 2 x 1400W at 2 ohms, 2 x 850W at 4 ohms, and 2 x 450W at 8 ohms. It also supports bridged operation and high-impedance 70V and 100V systems, making it suitable for both direct low-Z loudspeaker systems and distributed audio lines.

Onboard DSP gives installers the tools needed to tune and protect the system. Processing includes FIR filters, audio limiters, output delay per channel, PEQ per channel, 31-band GEQ per channel, and load impedance monitoring. FIR-Drive technology helps optimize loudspeaker settings for accurate system performance.

The Dynacord C1800FDi also includes Euroblock connectors, remote power-on delay, GPIO control support, standby power mode, and software-based configuration and monitoring. Its protection system covers high temperature, DC, HF, back-EMF, peak current, inrush current, and turn-on delay conditions for reliable operation.

C1800FDi Features

• 2-channel installation power amplifier
• Designed for permanent installation sound systems
• Suitable for background music, live music, paging, and distributed audio
• 2 x 1400W at 2 ohms in dual-channel mode
• 2 x 850W at 4 ohms in dual-channel mode
• 2 x 450W at 8 ohms in dual-channel mode
• Single-channel, dual-channel, and bridged operating modes
• Low-impedance and 70V/100V high-impedance operation
• Integrated DSP with FIR-Drive technology
• FIR filters, PEQ, 31-band GEQ, crossovers, limiters, and delay processing
• True channel grouping control with additional DSP capabilities
• Euroblock connectors for installation wiring
• Remote power-on delay
• GPIO support for third-party control integration
• Power-saving standby mode reduces running costs and power consumption
• Advanced amplifier and loudspeaker protection circuitry
• Front-to-rear cooling with 3-stage fans
• Engineered for constant stability at 2 ohms
• Engineered in Germany

C1800FDi Specifications

• Amplifier Type: 2-channel installation power amplifier
• Topology: Class-AB
• Load Impedance: 2 ohms, 2.6 ohms, 4 ohms, 8 ohms
• High-Impedance Operation: 70V, 100V
• Single-Channel Output Power at 2 Ohms: 1600W
• Single-Channel Output Power at 2.6 Ohms: 1300W
• Single-Channel Output Power at 4 Ohms: 950W
• Single-Channel Output Power at 8 Ohms: 480W
• Dual-Channel Output Power at 2 Ohms: 2 x 1400W
• Dual-Channel Output Power at 2.6 Ohms: 2 x 1200W
• Dual-Channel Output Power at 4 Ohms: 2 x 850W
• Dual-Channel Output Power at 8 Ohms: 2 x 450W
• Bridged Output Power at 70V: 600W
• Bridged Output Power at 100V: 1250W
• Bridged Output Power at 4 Ohms: 2800W
• Bridged Output Power at 8 Ohms: 1700W
• Maximum RMS Voltage Swing: 65.1V
• Voltage Gain: 32.0 dB, ref. 1 kHz
• Maximum Input Level: +21 dBu
• Input Impedance: 20 kOhms
• Frequency Response: 10 Hz to 21 kHz, ±1 dB
• Signal-to-Noise Ratio: >105 dB, A-weighted
• Output Noise: <-68 dBu, A-weighted
• Total Harmonic Distortion: <0.05% at 600W / 4 ohms, MBW = 80 kHz, 1 kHz
• IMD SMPTE: <0.1%, 60 Hz / 7 kHz
• DIM 30: <0.05%, 3.15 kHz / 15 kHz
• Crosstalk: <-80 dB, ref. 1 kHz, at 100W / 4 ohms
• Signal Processing: FIR filters, audio limiters, output delay per channel, 31-band GEQ per channel, PEQ per channel, load impedance
• Protection: Audio limiters, high temperature, DC, HF, back-EMF, peak current limiter, inrush current limiters, turn-on delay
• Cooling: Front-to-rear, 3-stage fans
• Power Requirement: 120 VAC, 60 Hz
• Power Consumption: 700W at 1/8 maximum output power at 4 ohms
• Mains Fuse: T20AH
• Safety Class: Class I
• Operating Temperature: 40°F to 105°F (4°C to 41°C)
• Color: Black
• Dimensions: 3.5 x 19.0 x 18.2 in (88.9 x 482.6 x 462.3 mm)
• Weight: 33.5 lb (15.2 kg)
• Package Weight: 39.59 lb
• Box Dimensions: 24.9 x 22.2 x 8.3 in

What's In The Box

• Dynacord C1800FDi power amplifier
• Power cord
• USB cable
• Euroblock connectors
• Power remote connectors

Electro-Voice C1800FDi (Electro-Voice C-1800FDi)
