Name: Elation Fuze Spot
Brand: Elation
SKU: Fuze Spot
Price: 6039 USD
Availability: InStock

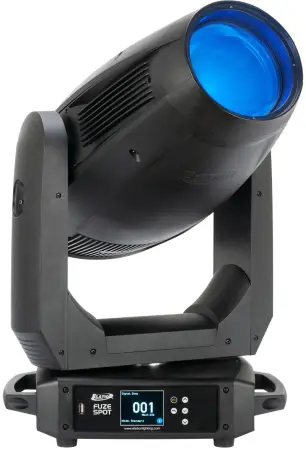

Elation Fuze Spot

The FUZE SPOT™ is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications.The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array.

The FUZE SPOT is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture.

Features:
Extended color RGBMA LED Engine, 92 CRI
Two rotating Gobo Wheels plus Animation Wheel
Iris, Prism, and Frost
Wide Zoom Range from 7° to 42°

Specifications:
SOURCE
305W 6,500K RGBMA LED Engine, 92 CRI
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA
10,000+ Total Lumen Output

EFFECTS
7° - 42° Motorized Zoom
Variable Frost Filter
4 Facet Prism
Motorized Iris
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe

COLOR
RGBMA Color Array
CMY Emulation
Virtual Color Correction
Green/Magenta Shift
Virtual Gel Swatch Book

GOBOS
2x 6 Rotating / Indexing Interchangeable Glass Gobos
Animation Wheel

CONTROL / CONNECTIONS
4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 16.0” (407mm)
Width: 10.1" (256mm)
Vertical Height: 27.4" (698mm)
Weight: 46.3 lbs. (21kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
466W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus pending | IP20

Elation Professional FUZ296 (Elation FUZ-296)

Research with AI

Beam Angle	7° to 42° degrees
IP Rating	IP20
LED Type	RGBMA LED Engine
Lumen Output	10,000+ Total Lumen Output lumens
Power Rating	305W W
Voltage Range	AC 100-240V - 50/60Hz V
Wattage	466W Max Power Consumption W

Brand	Elation
Name	Elation Fuze Spot
Primary Category	Automated LED Spot Fixture

CRI	92 CRI

Dimensions	Length: 16.0” (407mm), Width: 10.1" (256mm), Height: 27.4" (698mm)
Weight	46.3 lbs. (21kg) kg

Warranty Length	Not specified years

Why to Invest?

The Elation Fuze Spot offers a powerful and versatile automated LED spot fixture with high color accuracy and a broad color range, suitable for demanding theater, television, and precision lighting applications. Its comprehensive feature set including dual rotating gobos, animation wheel, and multiple effects in a compact and quiet design makes it ideal for professional use.

How it Works?

The fixture uses a 5-color RGBMA LED engine to produce accurate and vibrant colors with high CRI. Motorized zoom, iris, prism, and frost effects allow precise beam shaping and effects control. DMX and RDM protocols enable detailed remote control of pan, tilt, dimming, color, and effects via a user-friendly LCD interface or external controllers.

What's Unique?

The Fuze Spot's unique 5-color homogenized LED array including Mint and Amber LEDs provides superior color mixing and virtual gel swatch capabilities. Its dual rotating gobo wheels combined with an animation wheel and advanced motorized effects in a lightweight, quiet fixture distinguish it from other automated ellipsoidal fixtures.

Key Features

Extended color RGBMA LED Engine with 92 CRI, two rotating gobo wheels plus animation wheel, iris, prism, frost effects, wide motorized zoom range from 7° to 42°, variable frost filter, 4 facet prism, motorized iris, variable 16-bit dimming curve modes, high speed electronic shutter and strobe.

Technical Specifications

Power: 305W LED engine, Max power consumption 466W. LED life approx. 30,000 hours. Beam angle 7°-42°. Weight 21kg. Dimensions: Length 407mm, Width 256mm, Height 698mm. Voltage range AC 100-240V 50/60Hz. IP rating IP20. Control via DMX with 4 channel modes, 16-bit pan, tilt and dimming control, DMX adjustable LED frequency, RDM protocol support, 4 button touch control panel with full color 180° reversible LCD menu display.
