Motorized Barndoor Accessory

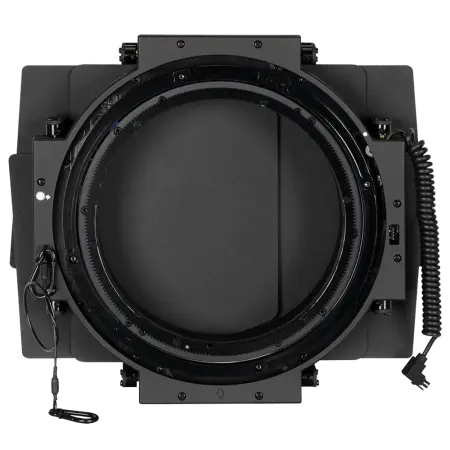

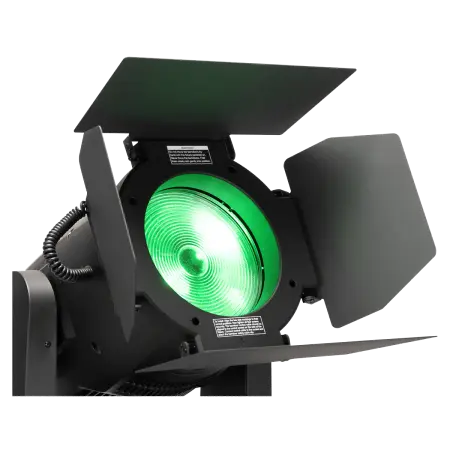

Elation Fuze Wash 500 Motorized Barndoors deliver full remote-controlled beam shaping for precise light control on the Fuze Wash 500. Featuring smooth, defined edges and intelligent blade movement, this accessory gives lighting professionals total area control in any application—from stage to studio.
Elation Fuze Wash 500 Motorized Barndoors Competitive Differences
- Fully DMX-controllable external barndoors with predefined control channels
- +/-60° blade indexing and full closure for transport and lens protection
Elation Fuze Wash 500 Motorized Barndoors Description
The
Fuze Wash 500 Motorized Barndoors upgrade the standard fixture with a remote-operated beam control system, optimized for use with the Fuze Wash 500’s fresnel optic. Each blade can be precisely adjusted via DMX, creating clean edge definition and superior spill control. With a built-in DMX profile, no manual patching is needed—just connect and go.

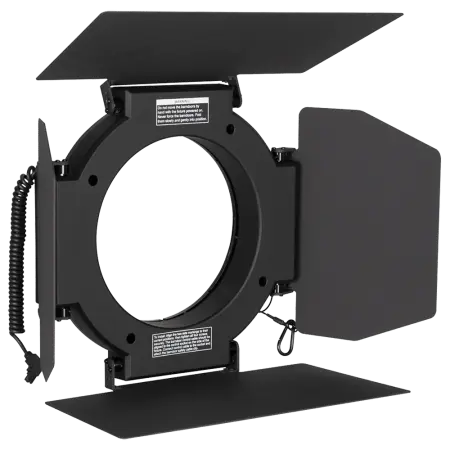

Built for convenience and protection, the motorized blades can fully close over the lens during transport or idle time, helping protect the optical system. The entire barndoor assembly can index +/-60°, allowing flexible positioning and creative beam shaping on the fly.
Designed for fast installation, the unit attaches directly to the front of the fixture using four screws and a single cable connection. Its flocked finish reduces internal reflections, ensuring cleaner light output, while built-in collision avoidance prevents blade damage during operation.
Model Features
- Compatible with Elation Fuze Wash 500 (Firmware 1.3.5+ required)
- DMX-controlled motorized blades with pre-mapped channel layout
- +/-60° barndoor indexing with full closure capability
- Flocked blade surface to minimize light reflection
- Collision avoidance technology for blade safety
- Tool-less cable connection and quick mounting with four screws
Model Specifications
- Weight: 4.85 lb (2.2 kg)
- UPC: 810008263853
- SKU: FUZ613
What's In The Box
- Motorized Barndoor Assembly
- Mounting Screws
- Connection Cable
- Quick Start Guide
Elation Lighting Fuze Wash 500 Barn Doors Motorized
(Elation Motorized Barndoors for Fuze Wash 500)
