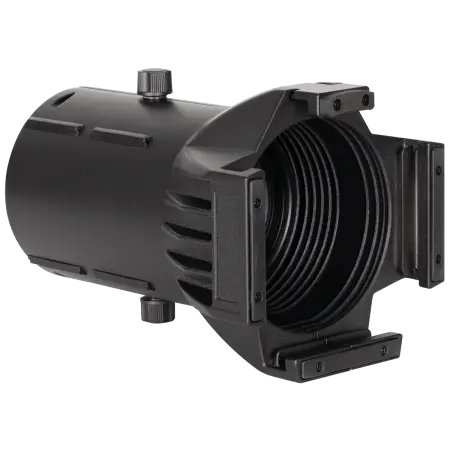

Elation IPL226

26 Degree IP Lens Tube

Elation IPL226 is a 26° IP lens tube designed for ellipsoidal fixtures that accept industry-standard lens tubes. Its sealed internal lens assembly helps protect the optical path from dust, debris, and liquids, making it a dependable choice for clean, efficient output in demanding indoor and outdoor applications.

Elation IPL226 Competitive Differences

• Sealed internal lens assembly helps protect the optical path from dust, debris, and liquids
• IP67 rating supports reliable use in challenging indoor and outdoor environments
• C4 Marine Coating adds durability for long-term operation in demanding conditions
• Industry-standard housing design provides compatibility with fixtures that accept standard lens tubes

Elation IPL226 Description

The Elation IPL226 is built for lighting professionals who need a durable, weather-resistant lens tube without sacrificing optical performance. With a 26° beam angle, it provides a focused ellipsoidal beam suitable for stage, architectural, event, and production environments.

Its sealed internal lens assembly helps keep the optical path clear from contaminants, supporting consistent brightness and clean light output over time. The IP67-rated construction is designed to withstand challenging conditions where dust, debris, or liquid exposure may be a concern.

For added durability, the IPL226 features C4 Marine Coating, rubber bumpers on the front accessory holders, and a robust gel frame clip that holds the frame securely in any orientation. The lens tube can also remain balanced and stable when set lens-down on a floor, making setup and handling easier during production work.

With its industry-standard housing design and 6.25-inch accessory frame size, Elation IPL226 offers practical compatibility and reliable performance for compatible ellipsoidal lighting fixtures.

IPL226 Features

• 26° IP lens tube for compatible ellipsoidal fixtures
• Sealed internal lens assembly protects the optical path from dust, debris, and liquids
• IP67 rated for demanding indoor and outdoor use
• Designed for maximum optical efficiency
• Industry-standard housing design
• Compatible with fixtures that accept industry-standard lens tubes
• C4 Marine Coating for added durability
• Rubber bumpers on front accessory holders
• Robust gel frame clip secures the frame in any orientation
• Balanced, stable design when set lens-down on a floor
• 6.25-inch accessory frame size

IPL226 Specifications

• Beam Angle: 26°
• Accessory Frame Size: 6.25 in
• IP Rating: IP67
• Weight: 6.2 lb (2.8 kg)
• SKU: IPL226
• UPC: 810008265406

Elation Lighting IPL226 (Elation 26 Degree IP Lens Tube for KL Core IP)
