Elation KL Fresnel 6 FC

220W RGBMA LED, 10-32 Degrees

$1,840.00 Available
$0 Tax $306 Back or Join VIP for upfront discounts.

Elation KL Fresnel 6 FC | 220W RGBMA LED, 10-32 Degrees

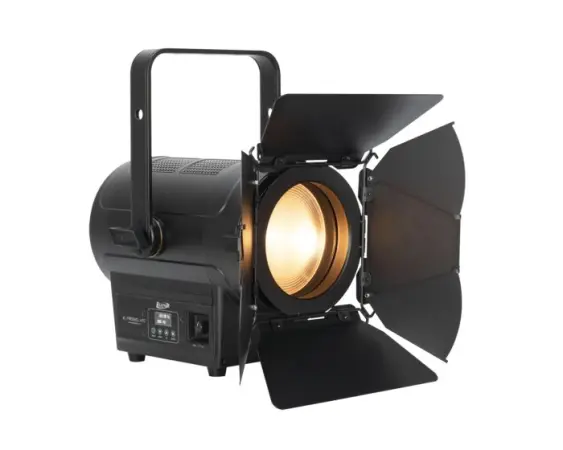

Elation KL Fresnel 6 FC

The Elation KL Fresnel 6 FC is a full-color LED Fresnel fixture designed for a wide range of professional lighting applications. With its advanced LED engine and precision optics, this fixture delivers exceptional color rendering and versatile lighting capabilities, making it ideal for theaters, broadcast studios, and live events. The KL Fresnel 6 FC offers a comprehensive set of features and control options to meet the demands of any lighting designer.

Key Features

  • Brand: Elation
  • Model: KL Fresnel 6 FC
  • 305W RGBMA LED Engine
  • High CRI for accurate color rendering
  • Motorized Zoom: 10° to 32°
  • Variable Color Temperature: 2,400K - 8,500K
  • Multiple control options, including DMX and RDM
  • Robust and durable construction

Competitive Differences

  • High CRI for superior color accuracy
  • Wide motorized zoom range for versatile lighting
  • Robust build quality for reliable performance

Product Description

The Elation KL Fresnel 6 FC is a cutting-edge LED Fresnel fixture that combines a full-color LED engine with precision optics to deliver stunning lighting effects. With advanced color mixing and dimming capabilities, this fixture ensures accurate color reproduction and smooth fades, making it perfect for professional lighting applications. The high CRI ensures that colors are rendered faithfully, while the variable color temperature allows for customization to suit different environments. The KL Fresnel 6 FC offers multiple control options, including DMX and RDM, providing flexibility and ease of use for lighting designers. Built with durability in mind, this fixture is designed to withstand the rigors of professional use, ensuring reliable performance in any setting.

Photometric Data

  • 13,000 Total Lumen Output
  • CRI: 92
  • Motorized Zoom Range: 10° - 32°
  • Beam Angle: 10° - 32°
  • Field Angle: 10.8° - 41.5°

Specifications

  • Source: 305W RGBMA LED Engine
  • 30,000 Hour Average LED Life*
  • Variable Color Temperature: 2,400K - 8,500K
  • Control Protocol: DMX, RDM
  • Power Consumption: 353W maximum
  • Dimensions: 18.4 x 14.8 x 18.0 in (468 x 375 x 457 mm)
  • Weight: 25.4 lbs (11.5 kg)

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Control / Connections

  • 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Encoder Control for Standalone Operation
  • Full Color 180° Reversible LCD Menu Display
  • 5pin DMX In/Out
  • IP65 Locking Power In/Out
  • Elation’s E-FLYâ„¢ Internal Wireless DMX Transceiver

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 353W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%): 1203.8

Approvals / Ratings

  • CE
  • cETLus
  • IP20

Optional Accessories

  • #8050000053 - Omega Bracket

What's in the Box

  • Elation KL Fresnel 6 FC
  • User manual

Accessories

  • Clamps and mounting hardware
  • Protective cases
  • DMX controllers
  • Additional power cables

Elation KLF846 (Elation KL FRESNEL FC-6)

Research with AI

Beam Angle 10° - 32° degrees
Frequency Response Variable Color Temperature: 2,400K - 8,500K K
IP Rating IP20
Lumen Output 13,000 Total Lumen Output lm
Power Rating 305W RGBMA LED Engine W
Voltage Range AC 100-240V - 50/60Hz V
Wattage 353W maximum W

Brand Elation
Name Elation KL Fresnel 6 FC

Control Interfaces DMX, RDM, 4 Button Touch Control Panel, Encoder Control, Full Color 180° Reversible LCD Menu Display
Preset Storage 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)

CRI 92
Wireless DMX Elation’s E-FLY™ Internal Wireless DMX Transceiver

Dimensions 18.4 x 14.8 x 18.0 in (468 x 375 x 457 mm) mm
Weight 25.4 lbs (11.5 kg) kg

Why to Invest?

The Elation KL Fresnel 6 FC offers superior color accuracy with a high CRI LED engine, versatile motorized zoom from 10° to 32°, and robust construction for reliable professional use. Its advanced color mixing, variable color temperature, and multiple control options including wireless DMX make it ideal for theaters, broadcast studios, and live events.

How it Works?

This fixture uses a 305W RGBMA LED engine combined with precision optics and motorized zoom to deliver customizable beam angles and accurate color rendering. It supports DMX and RDM protocols for flexible control, includes onboard controls and a reversible LCD menu, and features an internal wireless DMX transceiver for seamless integration.

What's Unique?

The KL Fresnel 6 FC stands out with its high CRI of 92 for superior color fidelity, a wide motorized zoom range of 10° to 32°, and an internal wireless DMX transceiver (E-FLY™) for enhanced control options. Its robust build and variable color temperature range from 2,400K to 8,500K provide versatility unmatched in similar LED Fresnel fixtures.

Key Features

305W RGBMA LED Engine, High CRI for accurate color rendering, Motorized Zoom: 10° to 32°, Variable Color Temperature: 2,400K - 8,500K, Multiple control options including DMX and RDM, Robust and durable construction.

Competitive Differences

High CRI for superior color accuracy, Wide motorized zoom range for versatile lighting, Robust build quality for reliable performance.

Photometric Data

13,000 Total Lumen Output, CRI: 92, Motorized Zoom Range: 10° - 32°, Beam Angle: 10° - 32°, Field Angle: 10.8° - 41.5°.

Control / Connections

8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17), DMX Adjustable LED Frequency, DMX, RDM Protocol Support, 4 Button Touch Control Panel, Encoder Control for Standalone Operation, Full Color 180° Reversible LCD Menu Display, 5pin DMX In/Out, IP65 Locking Power In/Out, Elation’s E-FLY™ Internal Wireless DMX Transceiver.

Electrical / Thermal

AC 100-240V - 50/60Hz, 353W Max Power Consumption, Operating Temperature: 14°F to 113°F (-10°C to 45°C), BTU/hr (+/- 10%): 1203.8.

Approvals / Ratings

CE, cETLus, IP20.

Included Accessories

Elation KL Fresnel 6 FC, User manual.

Optional Accessories

Omega Bracket (#8050000053), Clamps and mounting hardware, Protective cases, DMX controllers, Additional power cables.
