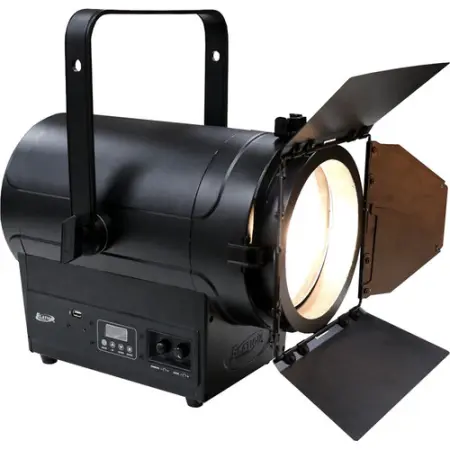

Elation's KL FRESNEL 8â„¢ is a 350 W 3,000K >97 CRI Warm White LED fresnel, producing an output of over 6,400 total lumens—on par with comparable tungsten halogen models. Features include manual- and DMX-controlled wide motorized zoom of 11° to 57°, smooth 16-bit selectable dimming curve modes, along with adjustable LED refresh rate frequency and gamma brightness providing flicker-free operation for use in TV and FILM environments. It also comes with RDM (remote device management) protocol support, a 4-button and 2-rotary dial control panel, 3- / 5-pin DMX and powerCON® in/out (I/O) connections, an LCD menu display, multiple-unit power-linking, and a universal auto-switching power supply (100-240V).
Includes:
KL FRESNEL 8 fixture
powerCON TRUE1 power cable
Removable barn doors and fixture safety cables
Features:
350 W 3,000K >96 CRI Warm White LED engine
14,000+ Total lumens output
Manual and DMX controlled 11° to 57° wide motorized zoom
Dimmer and zoom rotary dials
Smooth 16-bit selectable dimming curve modes
LED refresh rate and gamma brightness adjustment
Flicker-free operation for TV and FILM
RDM (remote device management)
Removable rotating barn doors (included)
Specifications:
Source:
350 W, >96 CRI 3,000K Warm White LED
50,000 hour average LED life (*note: may vary depending on environment, power/voltage, usage patterns, control and dimming)
Photometric data:
14,000+ Total Lumens Output
43,673 LUX 4,057 FC @6.6’ (2m) (Min Zoom / Full ON)
4,169 LUX 387 FC @6.6’ (2m) (Max Zoom / Full ON)
Effects:
11° to 57° motorized zoom
Electronic dimmer and strobe
Variable 16-bit dimming curve modes
Color:
Warm White 3,000K
Control/Connections:
Manual and DMX control
Dimmer and zoom rotary dials
(4) DMX channel modes (1/2/3/4)
4-button control panel
LCD menu display
RDM (remote device management)
5- and 3-pin DMX and powerCON TRUE1 I/O
Elation Professional KL FRESNEL-8
(Elation KL-FRESNEL 8)
