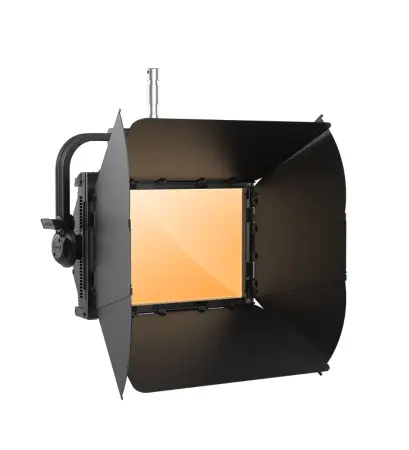

Elation KL Panel

The KL PANEL™ is a full-color-spectrum LED soft light that provides high output, precise color temperature control, full spectrum color rendering and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality. The KL PANEL incorporates a highly efficient 6-in-1 LED package that produces up to 16,000 field lumens at a 64 beam angle. Compact and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for any external power supply. It can also be remotely powered thru its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry standard DMX, Art-NET or sACN protocols. It can also be adjusted manually using the included encoders and OLED display, giving you instant access to Intensity, Color, Effects and other important settings. The display and encoders are positioned to ensure easy access while the KL Panel is mounted on a stand. The integration of Elation’s E-FLY™ wireless system allows for even more flexibility of use.

Features:
295W RGBWLC (Red, Green, Blue, White, Lime, Cyan) LED Array CRI 95, CCT Adjustment from 2,000 to 10,000K 16,000 Total Lumen Fixture Output Internal Power Supply with Power Pass-Through 24-36 VDC Battery Operation (battery not included) DMX/RDM, Art-Net and sACN Protocol Support E-FLY™ Internal Extended Range Wireless DMX Transceiver Stand-Alone Control with 3 Encoders and OLED Display Barn Doors, Diffuser, and Junior Pin (1 1/8” - 28mm) Included

Specifications:
SOURCE
6-in-1 (Red, Green, Blue, White, Lime, Cyan)  LED Array
50,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
up to 16,000 Total Lumen Output
64° Beam Angle (with diffuser)

EFFECTS
Variable CCT 2,000K - 10,000K
Greenshift Adjustment
Virtual Gel Library
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Remote Adjustable LED Refresh Rate Frequency
(900-25kHZ)

CONTROL / CONNECTIONS
9 DMX Channel Modes
3 Manual Adjustment Encoders
4 Button Control Panel and OLED Menu Display
DMX, RDM, Art-NET, sACN Protocol Support
E-FLY™ Internal Extended Range Wireless DMX Transceiver
Locking 5pin XLR Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates, External 5V power for accessories)
4pin XLR External Battery Connection (battery not included)
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 20.4” (518mm)
Width: 6.75” (171.5mm)
Height: 12.2” (310mm)
Height (with yoke): 16.3” (415.2mm)
Weight: 28.6 lbs. (13 kg)
Weight: (without barn door) 23.2 lbs. (10.52 kg)
Weight: (Junior Pin) 1.02 lbs. (0.46 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
24-36 VDC (battery operation - battery not included)
Max Power Consumption 295W
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus (pending) | IP20

Elation Professional KLP001 (Elation KLP-001)
