Elation KL Profile FC

305W RGBMA LED, 6-50 Degrees

$3,196.00 Available
$0 Tax $99 Back or Join VIP for upfront discounts.

(more)

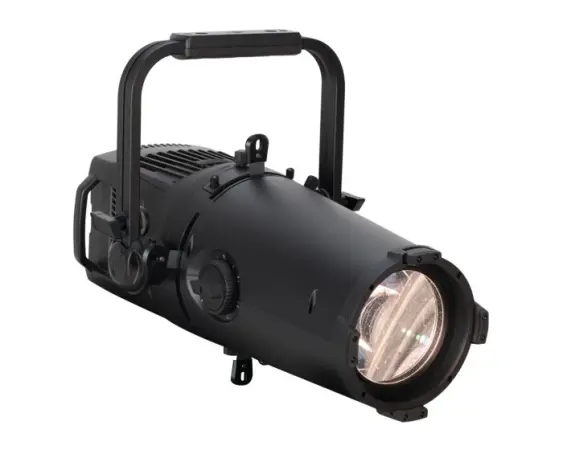

Elation KL Profile FC

The Elation KL Profile FC is a full-color ellipsoidal fixture designed for professional stage lighting applications. With its advanced LED engine and precise optics, this fixture delivers exceptional color rendering and output, making it ideal for theaters, broadcast studios, and live events. The KL Profile FC offers a wide range of features and control options to meet the demands of any lighting designer.

Key Features

  • Brand: Elation
  • Model: KL Profile FC
  • Full-color LED engine
  • Advanced color mixing and dimming
  • High CRI for accurate color rendering
  • Variable color temperature
  • Multiple control options, including DMX and RDM
  • Robust and durable construction

Competitive Differences

  • High CRI for superior color accuracy
  • Versatile control options for flexible operation
  • Robust build quality for reliable performance

Product Description

The Elation KL Profile FC is a cutting-edge ellipsoidal fixture that combines a full-color LED engine with precise optics to deliver stunning lighting effects. With advanced color mixing and dimming capabilities, this fixture ensures accurate color reproduction and smooth fades, making it perfect for professional lighting applications. The high CRI ensures that colors are rendered faithfully, while the variable color temperature allows for customization to suit different environments. The KL Profile FC offers multiple control options, including DMX and RDM, providing flexibility and ease of use for lighting designers. Built with durability in mind, this fixture is designed to withstand the rigors of professional use, ensuring reliable performance in any setting.

Photometric Data

  • 10,600 Total Lumen Output
  • CRI: 93.5
  • Zoom Range: 6° - 50°
  • Beam Angle: 5.9° - 45.6°
  • Field Angle: 6.6° - 50°

Specifications

  • Source: 305W 6,500K RGBMA LED Engine
  • 30,000 Hour Average LED Life*
  • Light Source: Full-color LED engine
  • CRI: High (exact value not provided)
  • Color Temperature: Variable
  • Control Protocol: DMX, RDM
  • Power Consumption: 358W maximum
  • Dimensions: 30.7 x 14.3 x 9.5 in (780 x 364 x 241 mm)
  • Weight: 24.3 lbs (11 kg)

*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Control / Connections

  • 8 DMX Channel Modes (1/5/12/21) CMY(10/17) RGB(10/17)
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Encoder Control for Standalone Operation
  • Full Color 180° Reversible LCD Menu Display
  • 5pin DMX In/Out
  • IP65 Locking Power In/Out
  • Elation’s E-FLYâ„¢ Internal Wireless DMX Transceiver

Electrical / Thermal

  • AC 100-240V - 50/60Hz
  • 358W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)
  • BTU/hr (+/- 10%): 1124.1

Approvals / Ratings

  • CE
  • cETLus
  • IP20

Optional Accessories

  • #8050000053 - Omega Bracket

What's in the Box

  • Elation KL Profile FC
  • User manual

Accessories

  • Clamps and mounting hardware
  • Protective cases
  • DMX controllers
  • Additional power cables

Elation KL Profile-FC (Elation Profile KL FC)

Beam Angle 5.9° - 45.6° degrees
Frequency Response DMX Adjustable LED Frequency hz
IP Rating IP20
LED Type Full-color RGBMA LED engine
Lumen Output 10,600 Total Lumen Output lm
Power Rating 305W 6,500K RGBMA LED Engine W
Wattage 358W maximum W

Brand Elation
Name Elation KL Profile FC

Control Interfaces DMX, RDM, 4 Button Touch Control Panel, Encoder Control, 5pin DMX In/Out
Wireless Capabilities Elation’s E-FLY™ Internal Wireless DMX Transceiver

CRI 93.5

Dimensions 30.7 x 14.3 x 9.5 in (780 x 364 x 241 mm) mm
Weight 24.3 lbs (11 kg) kg

Warranty Length Not specified years

Buy the Elation KL Profile FC for its high CRI and accurate color rendering, flexible control options including wireless DMX, durable construction, and powerful output suitable for demanding professional stage lighting applications.

This fixture uses a 305W RGBMA LED engine combined with precise optics and advanced color mixing and dimming technology to produce smooth, accurate colors and variable color temperatures. It is controlled via DMX, RDM, or onboard controls, with wireless DMX support for flexible operation.

The Elation KL Profile FC combines a high-power RGBMA LED engine with precise optics and advanced color mixing to deliver superior color accuracy and versatile control options in a robust, professional-grade ellipsoidal fixture.

Full-color LED engine, advanced color mixing and dimming, high CRI, variable color temperature, multiple control options (DMX, RDM), robust and durable construction.

High CRI for superior color accuracy, versatile control options for flexible operation, robust build quality for reliable performance.

305W 6,500K RGBMA LED engine, 30,000 hour average LED life, 10,600 lumens output, beam angle 5.9° - 45.6°, power consumption 358W max, dimensions 780 x 364 x 241 mm, weight 11 kg, IP20 rating, CE and cETLus certified.

Supports 8 DMX channel modes, DMX adjustable LED frequency, DMX and RDM protocol support, 4 button touch control panel, encoder control for standalone operation, full color 180° reversible LCD menu display, 5pin DMX In/Out, IP65 locking power In/Out, internal wireless DMX transceiver.

AC 100-240V 50/60Hz, 358W max power consumption, operating temperature -10°C to 45°C, BTU/hr 1124.1.

CE certified, cETLus certified, IP20 rated.

Omega Bracket (#8050000053), clamps and mounting hardware, protective cases, DMX controllers, additional power cables.
