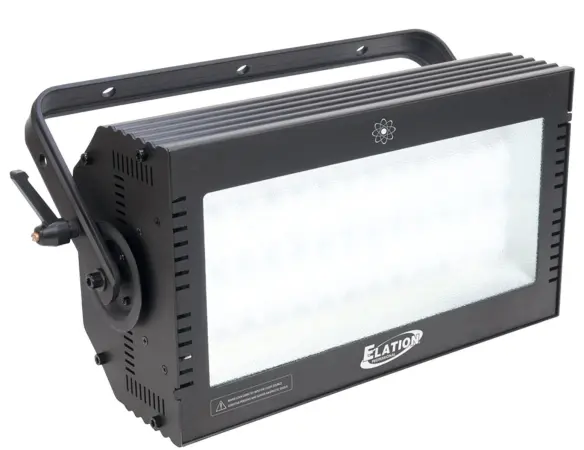

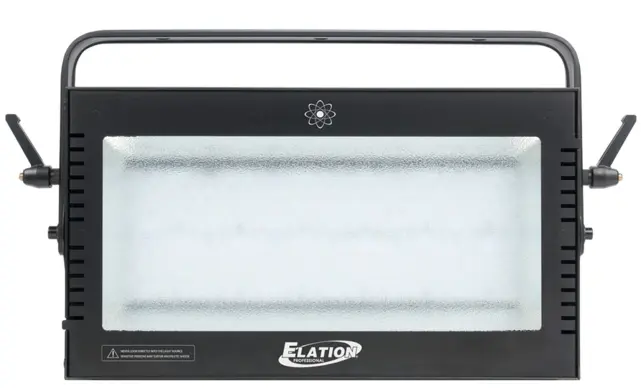

Elation Protron 3K LED Strobe
DISCONTINUED
The Protron 3K™ is a new high powered LED strobe featuring (200) CREE™ 3W Cool White LEDs, 80,000 lumens, 120° beam angle, (2) power modes (HIGH or LOW), strobe effect macros including burst, pulse, lighting, and full ON*, (2) silent cooling fans, electronic dimming, 3/5pin DMX and powerCON in/out connections, (4) button LCD control panel, an integrated rigging yoke, 900W max power consumption, and a multi-voltage universal auto switching power supply (100-240v). *Thermally regulated output at full max 10 seconds.
FEATURES
120° Beam Angle
(2) Power Modes (HIGH and LOW)
(2) Silent Cooling Fans
SOURCE
(202) CREE™ 3W Cool White LEDs
80,000 Total Lumens
50,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
16,450 LUX 1,528 FC @3.3’ (1m) (120° Full ON)
EFFECTS
Electronic Dimming
Burst, Pulse, Lighting, Full ON*
*Thermally regulated output at full max 10 seconds.

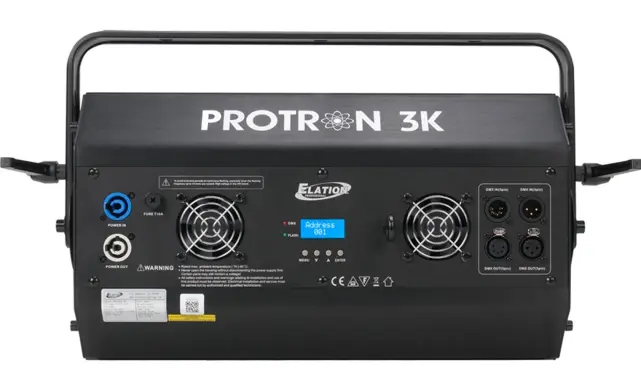

CONTROL / CONNECTIONS
3 DMX Channel Modes (1 / 2 / 3 / 4)
4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
powerCON In/Out
Power Link Up To (2) Units at 120V
SIZE / WEIGHT
Length: 21.5” (546mm)
Width: 6.9” (175mm)
Vertical Height: 11.7” (296mm)
Weight: 17.2 lbs. (7.8kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
900W Max Power Consumption
Max Ambient Temperature 113°F (40°C)
APPROVALS / RATINGS
CE | IP20
INSTALLATION

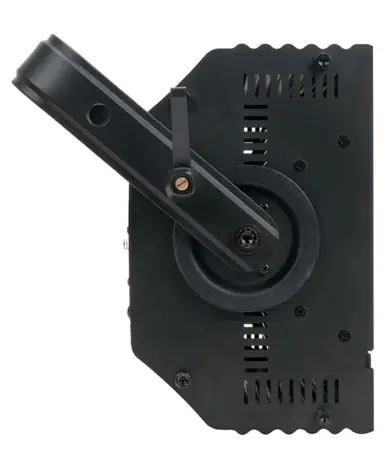

Rigging: Integrated Yoke
Working Position: Any (360°)
INCLUDED ITEMS
(1) powerCON Cable
