Beam FX Moving Head Light
The
Elation Rebel Dartz is a next-generation beam FX moving head that blends blistering speed, razor-sharp optics, and weather-resistant reliability in a compact design. Built for lighting designers who demand power and precision, it features a 150W RBL LED engine and an ultra-narrow 1.5° beam for striking aerial effects—even in dense atmospherics.
Elation Rebel Dartz Competitive Differences
- Ultra-narrow 1.5° beam with 125,475 lux at 5 meters
- IP65-rated with wireless DMX (Aria X2) and NFC configuration
Elation Rebel Dartz Description
The
Elation Rebel Dartz channels the creative power of the DARTZ 360 into a reinvented fixture that’s faster, brighter, and more versatile. Powered by a 150W RBL LED engine, it delivers over four times the brightness of its predecessor, throwing out a tight 1.5° beam that’s perfect for impactful aerial visuals and FX programming.
This fixture is equipped with advanced features including dual gobo wheels (rotating and static), dual stacking prisms, heavy frost, and a True Green color filter—all packed into a compact, rugged IP65 chassis built for outdoor or indoor use.
It supports full 360° continuous pan and tilt motion for limitless movement, and its variable CCT (6500K–16000K), virtual gel swatch book, and high-speed strobing give designers full flexibility over look and feel. With built-in Aria X2 wireless DMX, RDM support, and NFC configuration, setup and management are quick and intuitive—even in challenging environments.
Selectable fan modes, including a silent option, ensure it performs reliably in both noise-sensitive and high-output applications, while power thru, DMX, and Ethernet I/O support flexible rigging and signal flow for touring or fixed installs.
Model Features
- 150W RBL LED engine with 20,000-hour life
- 1.5° beam angle with 125,475 lux @ 5m
- Dual gobo wheels: 10 rotating + 16 static gobos
- Dual stacking prisms and frost filter for layered effects
- True Green color filter and variable CCT (6500K–16000K)
- 360° continuous pan and tilt rotation
- Aria X2 wireless DMX + NFC configuration
- IP65-rated for all-weather operation
Model Specifications
- Light Source: 150W RBL LED
- Beam Angle: 1.5°
- Luminosity: 125,475 lux @ 5m
- Gobos: 10 rotating, 16 static
- Prisms: Dual independent stacking (linear + circular)
- Pan/Tilt: 360° continuous rotation
- Color: RBL array + True Green + virtual gels
- Control Protocols: DMX, RDM, Art-Net, sACN
- Wireless: Aria X2 wireless DMX, NFC setup
- Power: 100–240V AC, 260W max
- IP Rating: IP65
- Dimensions: 8.1 x 13.3 x 18.8 in (205 x 337 x 478 mm)
- Weight: 35 lb (15.9 kg)
- UPC: Not specified
What's In The Box

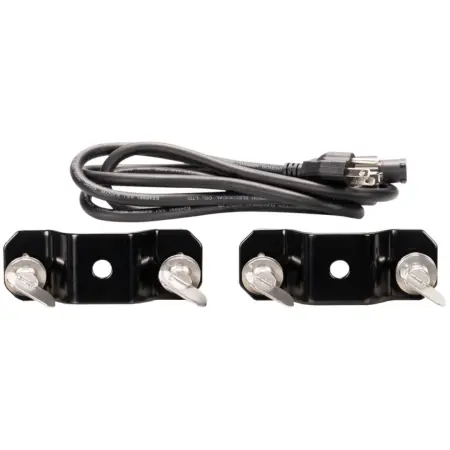

- Elation Rebel Dartz Fixture
- Power locking cable
- User manual
Elation Lighting REBEL DARTZ
(Elation Rebel DARTZ)
