RGBLA+UV Outdoor LED Par
The
Elation SIX+ PAR L is a high-output, IP65-rated LED par fixture designed for professional use in demanding environments. Equipped with fourteen 20W RGBLA+UV LEDs and delivering up to 7300 lumens, it offers an exceptionally wide color gamut, high color rendering, and flexible control—all in a compact, marine-grade housing. Ideal for both indoor and outdoor applications, the SIX+ PAR L sets a new standard for versatile, flicker-free lighting in touring, broadcast, and installation environments.
Elation SIX+ PAR L Competitive Differences
- 14x 20W RGBLA+UV LEDs with 7300 lumens and 91.7 CRI
- Fanless, silent cooling with IP65 and marine-grade C4-M coating
Elation SIX+ PAR L Description
The
Elation SIX+ PAR L is engineered to deliver consistent, high-quality lighting in any environment—from outdoor stages to indoor theaters and broadcast studios. The six-color LED engine includes red, green, blue, lime, amber, and UV for precise color mixing and exceptional white rendering with a CRI of 91.7. A 12° native beam angle is complemented by an included MFL (20°) lens, with wider lens options available for added flexibility.
Designed for silent operation, the fixture’s fanless cooling system makes it ideal for noise-sensitive applications such as film, television, or worship venues. The fixture also includes variable LED refresh rate settings for flicker-free use on camera. Additional pro-level features include a CMY emulation mode, dedicated CCT control (2400K–8500K), and an onboard virtual gel library for fast color matching.
Control is easy via 9 DMX modes or 4 SixPar emulation modes, ensuring compatibility with existing rigs. RDM, 5-pin DMX, and IP65 locking power in/out connectors ensure reliable, daisy-chainable power and data. The fixture supports Elation’s Aria x2 wireless device management system for remote monitoring and configuration.
Built to withstand harsh environments, the fixture’s IP65 rating and C4-M marine-grade coating make it safe for coastal or wet-area installations. The dual yoke design allows for floor or rig-mounted use with an included omega bracket receiver.
Model Features
- 14x 20W RGBLA+UV LED array with up to 7300 lumens
- 12° beam angle with included 20° MFL lens
- CMY emulation, virtual gel swatch book, and CCT control (2400K–8500K)

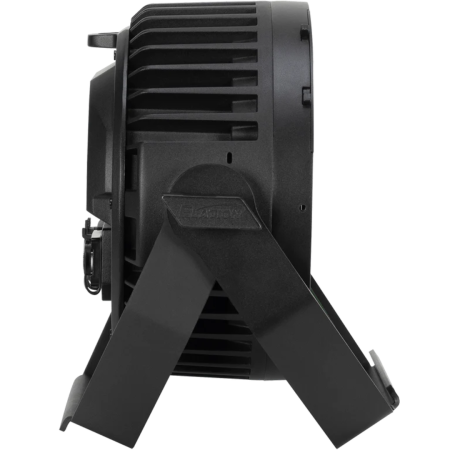

- Silent, fanless cooling for noise-sensitive environments
- Flicker-free operation with adjustable LED refresh rate
- IP65 rated with marine-grade C4-M coating for outdoor use
- Aria x2 wireless device management and RDM support
- Multiple DMX and SixPar emulation modes for flexible control
Model Specifications
- Light Source: 14x 20W RGBLA+UV LEDs
- Lumen Output: 7300 lumens
- CRI: 91.7
- Beam Angle: 12° native (20° lens included)
- Dimming: 16-bit selectable curves
- CCT Range: 2400K – 8500K
- Control: 9 DMX modes + 4 SixPar emulation modes

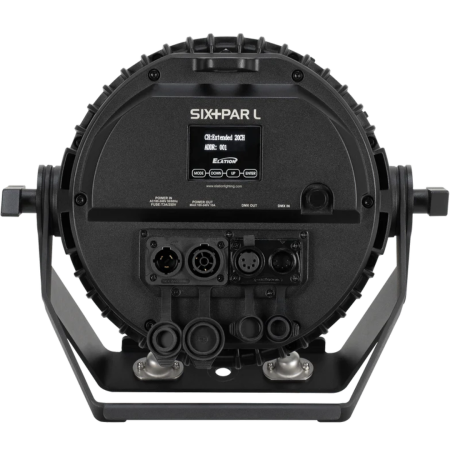

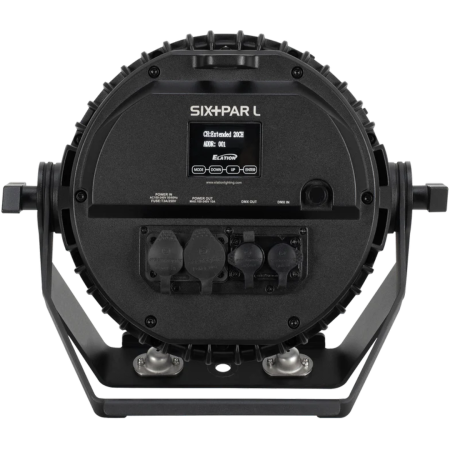

- Connections: 5-pin DMX, IP65 locking power in/out
- Display: 4-button interface with LED screen
- Dimensions: 13.5 x 10.2 x 9.7 in (342 x 260 x 246.5 mm)
- Weight: 15.7 lb (7.1 kg)
- Power: AC 100–240V, 50/60Hz, 165W max
- BTU/hr: Approx. 563
- Operating Temp: 5°F to 113°F (-15°C to 45°C)
- Certifications: CE, cETLus, FCC, UKCA
What's In The Box
- Elation SIX+ PAR L fixture
- MFL (20°) lens
- Safety cable
- IP65 locking power cable
Elation SIX+ PAR L
(Elation SIX213)
