Commercial Installation Loudspeaker

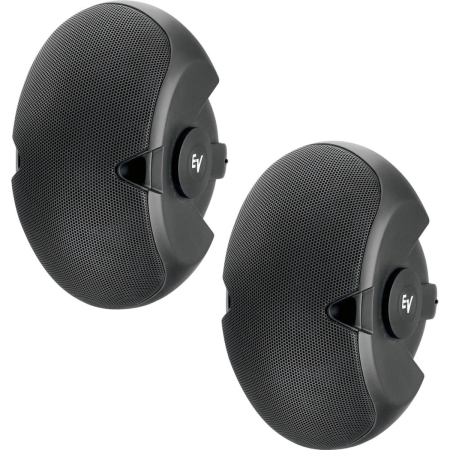

Electro-Voice EVID 6.2T is a passive two-way loudspeaker system designed for high-quality background and foreground music in commercial environments. Built for both indoor and outdoor use, it delivers reliable performance in restaurants, retail stores, patios, and more, with wide coverage and flexible mounting options.
Electro-Voice EVID 6.2T Competitive Differences
- Dual 6" woofers with 1" titanium tweeter for extended output and clarity
- Integrated transformer supports 70V, 100V, and 8-ohm systems
Electro-Voice EVID 6.2T Description

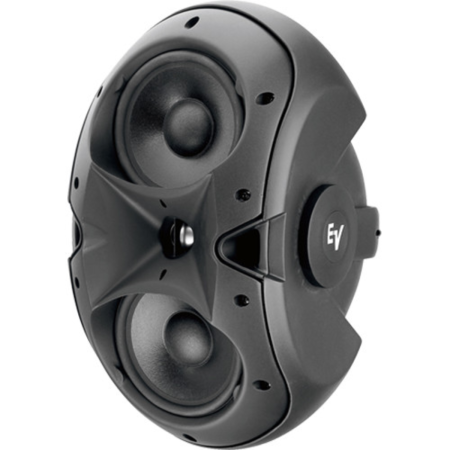

The Electro-Voice EVID 6.2T pair is engineered for professional installation environments requiring consistent sound coverage and durability. Featuring dual 6-inch low-frequency drivers and a 1-inch titanium high-frequency transducer, this speaker system delivers balanced audio with strong bass response and crisp highs across a wide frequency range.
Its integrated transformer allows seamless compatibility with 70V and 100V distributed audio systems, as well as standard 8-ohm setups, making it highly adaptable for various installation needs. Full-bandwidth overload protection ensures long-term reliability, even in demanding conditions.
The weather-resistant ABS enclosure, combined with an IP34 rating and zinc-coated grille, ensures dependable operation in both indoor and covered outdoor environments. Magnetic shielding also allows placement near video displays without interference.
Installation is simplified with the included Strong-Arm-Mount (SAM) system, offering flexible positioning with over 100° of horizontal swing and 90° rotation. This allows precise aiming for optimal coverage in any space.
EVID 6.2T Features
- Passive 2-way speaker system (pair included)
- Dual 6" woofers and 1" titanium tweeter
- 300W program power handling (600W peak)
- Integrated transformer for 70V/100V or 8-ohm operation
- 62 Hz to 20 kHz frequency range
- 100° horizontal x 80° vertical coverage
- Full-bandwidth overload protection
- Weather-resistant IP34-rated enclosure
- Magnetically shielded design
- Strong-Arm-Mount (SAM) for flexible installation
- Euroblock connector for secure wiring
- Paintable ABS enclosure with metal grille
EVID 6.2T Specifications
- Speaker Type: Passive 2-Way
- Included Units: 2 Speakers
- Power Handling: 300W Program / 600W Peak
- Max SPL: 118 dB
- Sensitivity: 94 dB
- Frequency Range: 62 Hz – 20 kHz (-10 dB)
- Coverage: 100° H x 80° V
- Crossover: 1.6 kHz
- LF Drivers: 2 x 6" (15.2 cm)
- HF Driver: 1" Titanium-Coated
- Impedance: 8 Ohms (Transformer Bypassed)
- Transformer Taps: 70V (7.5 / 15 / 30 / 60W), 100V (15 / 30 / 60W)
- Inputs: Euroblock
- Environmental Rating: IP34
- Construction: ABS Enclosure, Metal Grille
- Dimensions: 16.5 x 11.7 x 9 in (41.9 x 29.7 x 22.9 cm)
- Weight: 12 lb (5.4 kg) per speaker
What's In The Box
- 2 x Electro-Voice EVID 6.2T Speakers
- Strong-Arm-Mount (SAM) Brackets
- Euroblock Connectors
- Installation Guide
