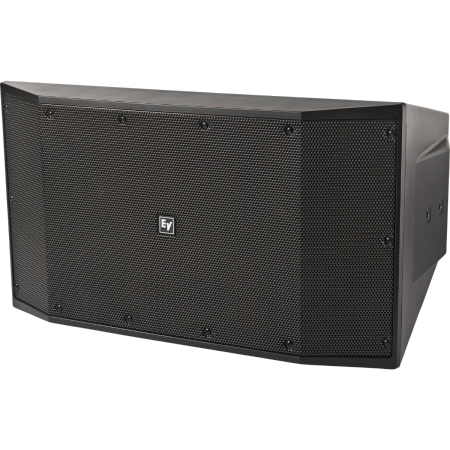

Electro-Voice EVID-S10.1DB

Surface-Mount Installation Subwoofer

Electro-Voice EVID-S10.1DB is a black dual 10-inch surface-mount subwoofer designed to add extended low-frequency impact to commercial audio systems. Built for background music, foreground music, and sound reinforcement, it is well suited for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, theme parks, and other indoor or outdoor installations.

Electro-Voice EVID-S10.1DB Competitive Differences

• Dual 10-inch high-excursion woofers provide strong low-frequency output from a compact cabinet
• IP54 weather resistance can be upgraded to IP65 using the included port plug accessory

Electro-Voice EVID-S10.1DB Description

The Electro-Voice EVID-S10.1DB is engineered for demanding professional and commercial sound applications where compact size, high output, and installation flexibility are required. Its dual 10-inch woofer design delivers extended bass response down to 33 Hz, making it a strong match for EVID surface-mount, ceiling, and in-wall speaker systems.

With 400W continuous power handling and a calculated 120 dB maximum SPL, this subwoofer is capable of supporting music systems that need deeper bass and higher impact than full-range speakers alone can provide. It can be configured in stereo mode as two 8-ohm loads or mono mode as one 4-ohm load.

Designed for indoor and outdoor use, the cabinet is weatherized for IP54 protection and can be upgraded to IP65 with the included port covers. The enclosure and grille are engineered to resist sun, salt, and moisture, making it useful for patios, leisure venues, and other challenging commercial environments.

EVID-S10.1DB Features

• Black dual 10-inch surface-mount subwoofer
• Two 10-inch high-excursion woofers
• Designed for indoor and outdoor commercial audio systems
• 400W continuous / 1600W peak power handling
• 120 dB maximum SPL
• 33 Hz low-frequency extension
• IP54 weather resistance
• IP65 upgrade possible with included port plug accessory
• Sun, salt, and moisture-resistant cabinet and grille design
• Stereo or mono wiring configuration
• Two removable locking 4-pin Euroblock connectors for input and output
• Optional 70V/100V transformer input panel accessory available
• Optional crossover input panel accessory available

EVID-S10.1DB Specifications

• Speaker Type: Passive Surface-Mount Subwoofer
• LF Drivers: 2 x 10 in (254 mm)
• Frequency Range: 33 Hz – 500 Hz (-10 dB)
• Max SPL: 120 dB Continuous / 126 dB Peak
• Sensitivity: 94 dB, 1W/1m
• Power Handling: 400W Continuous / 1600W Peak
• Nominal Impedance: Stereo Mode: 2 x 8 Ohms / Mono Mode: 1 x 4 Ohms
• Recommended High Pass: 40 Hz
• Connector Type: Two Removable Locking 4-Pin Euroblock Connectors, Input and Output
• Maximum Wire Size: 12 AWG (2.5 mm²)
• Weatherized: Yes
• Environmental Rating: IP54 / IP65 with Port Covers
• Color: Black
• Dimensions: 25.6 x 14 x 19.3 in (651 x 356 x 491 mm)
• Net Weight: 39.5 lb (17.9 kg)
• Shipping Weight: 46.3 lb (21 kg)
• Transformer Taps: Optional Accessory

What's In The Box

• Electro-Voice EVID-S10.1DB Subwoofer
• Port Plug Accessory

Electro-Voice EVID-S10.1DB (Electro-Voice EVID-S10.1D)
