Electro-Voice EVID-S8.2B

Surface-Mount Installation Speaker

Electro-Voice EVID-S8.2B is a black 8-inch two-way surface-mount speaker pair designed for background music, foreground audio, paging, and sound reinforcement. With IP54 weather resistance, a long-throw woofer, and included mounting hardware, it is well suited for restaurants, bars, patios, retail spaces, fitness clubs, hospitality venues, theme parks, and other indoor or outdoor installations.

Electro-Voice EVID-S8.2B Competitive Differences

• Long-throw 8-inch woofer delivers extended low-frequency performance down to 50 Hz
• Included mount system supports 90° horizontal and 45° vertical rotation for flexible wall or ceiling placement

Electro-Voice EVID-S8.2B Description

The Electro-Voice EVID-S8.2B delivers full-range performance from an 8-inch low-frequency driver and 1-inch high-frequency transducer. Its 90° x 90° coverage pattern helps provide wide, uniform sound across commercial spaces, making it useful for distributed audio, background music, paging, and sound reinforcement applications.

With 90W continuous power handling, 360W peak power handling, and a calculated 110 dB maximum SPL, the EVID-S8.2B offers strong output for larger rooms or outdoor areas where higher performance is needed from a compact surface-mount speaker.

The speaker is engineered for reliable indoor and outdoor operation with an IP54-rated weatherized enclosure that helps resist sun, salt, and moisture. Its fire-rated ABS plastic cabinet and included mounting system simplify installation on walls or ceilings while maintaining a clean installed appearance.

EVID-S8.2B Features

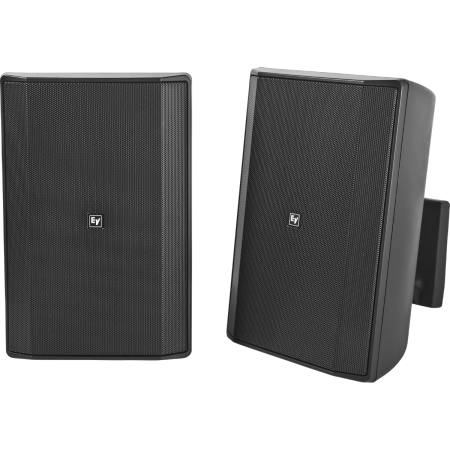

• Black 8-inch two-way surface-mount speaker pair
• 8-ohm low-impedance operation
• Long-throw 8-inch woofer for extended low-frequency performance
• 1-inch high-frequency transducer
• 90W continuous / 360W peak power handling
• 110 dB maximum SPL / 116 dB peak
• 50 Hz – 20 kHz frequency range
• 90° x 90° nominal coverage
• IP54 weatherized construction for indoor and outdoor use
• Fire-rated ABS plastic enclosure
• Included mount system for quick and reliable installation
• Supports wall or ceiling mounting
• 70V/100V transformer version available separately as EVID-S8.2T

EVID-S8.2B Specifications

• Speaker Type: Passive 2-Way Surface-Mount Speaker Pair
• Frequency Range: 50 Hz – 20 kHz (-10 dB)
• Frequency Response: 70 Hz – 20 kHz (-3 dB)
• Max SPL: 110 dB Continuous / 116 dB Peak
• Sensitivity: Not Specified
• Power Handling: 90W Continuous / 360W Peak
• Nominal Impedance: 8 Ohms
• Minimum Impedance: 6 Ohms
• Coverage: 90° H x 90° V
• LF Driver: 8 in (203 mm)
• HF Driver: 1 in (25 mm)
• Recommended High Pass: 50 Hz
• Connector Type: Captive Screws on Wall Bracket; Removable Locking 4-Pin Euroblock for Distributed Line Connection
• Maximum Wire Size: 12 AWG (2.5 mm²)
• Weatherized: Yes
• Environmental Rating: IP54
• Color: Black
• Dimensions: 15.4 x 9.8 x 8.8 in (390 x 250 x 223 mm)
• Net Weight: 11.2 lb (5.1 kg) per pair
• Shipping Weight: 28.7 lb (13 kg)

What's In The Box

• 2 x Electro-Voice EVID-S8.2B Speakers
• Mounting Brackets
