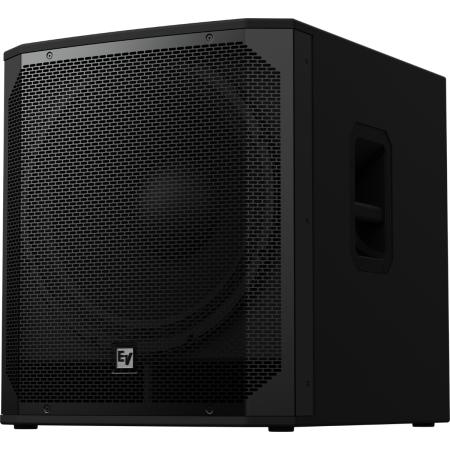

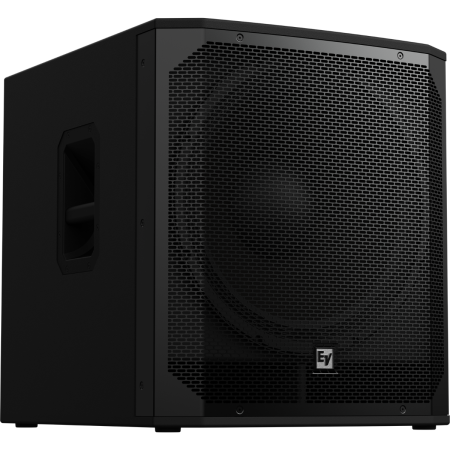

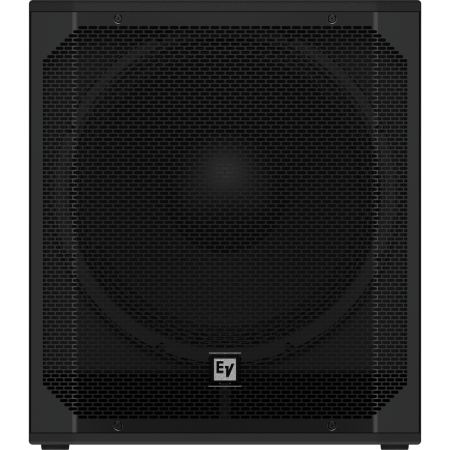

Electro-Voice EVIVA 18SP

Powered PA Subwoofer

Electro-Voice EVIVA 18SP is an 18-inch powered portable subwoofer designed to add deep, powerful low end to DJ systems, live sound setups, small venues, and mobile productions. With 1000W amplification, 132dB maximum SPL, and a rugged painted plywood enclosure, it delivers reliable bass reinforcement with fast setup and straightforward controls.

Electro-Voice EVIVA 18SP Competitive Differences

• 18-inch powered subwoofer with 1000W amplification and up to 132dB maximum SPL
• Large low-turbulence slot port supports strong low-frequency output
• Selectable MUSIC and LIVE modes help optimize performance for playback or live sound use
• Painted 15 mm plywood enclosure with recessed input panel helps protect controls and connectors in transit

Electro-Voice EVIVA 18SP Description

The Electro-Voice EVIVA 18SP brings Electro-Voice low-frequency performance to aspiring musicians, DJs, presenters, and small venues. Its 18-inch woofer, 1000W amplifier, and 38 Hz–200 Hz frequency range provide the depth and output needed to extend EVIVA full-range speaker systems.

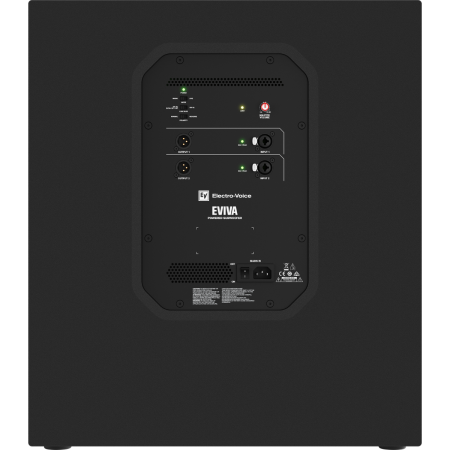

Designed for rapid deployment, the EVIVA 18SP includes two XLR/TRS combo line inputs and two XLR pass-through outputs for simple system integration. The control panel provides single-knob level adjustment, dual-color input signal metering, peak detection, selectable MUSIC/LIVE modes, 100 Hz or 150 Hz low-pass options, and NORMAL/REVERSE polarity switching.

The 15 mm internally braced plywood enclosure, textured paint finish, powder-coated steel grille, durable metal side handles, anti-skid feet, and M20 threaded pole mount plate make this subwoofer ready for mobile and installed use. At 67.6 lb, the Electro-Voice EVIVA 18SP remains manageable while delivering serious low-frequency support for portable PA systems.

EVIVA 18SP Features

• 18-inch powered portable subwoofer
• 1000W amplifier rating
• 132dB maximum SPL at 1 meter
• Large low-turbulence slot port
• Selectable MUSIC and LIVE sound modes
• Two XLR/TRS combo line inputs
• Two XLR pass-through outputs
• Single-knob level adjustment
• Dual-color input signal metering with peak detection
• Selectable 100 Hz or 150 Hz low-pass frequency
• NORMAL/REVERSE polarity switch
• Universal 100–240V auto-switching mains input
• 15 mm plywood enclosure with internal bracing and textured paint
• Recessed input panel helps protect controls and connectors
• Powder-coated steel grille

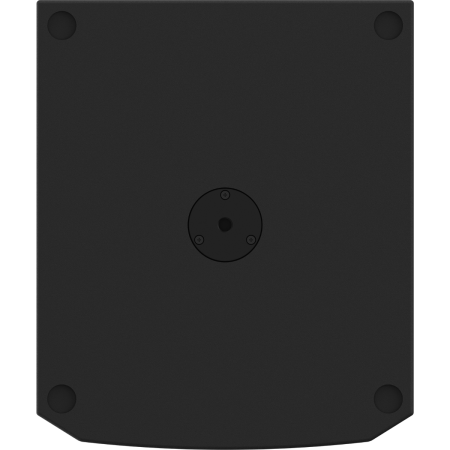

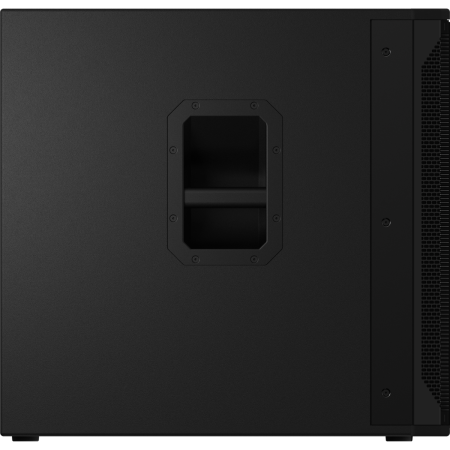

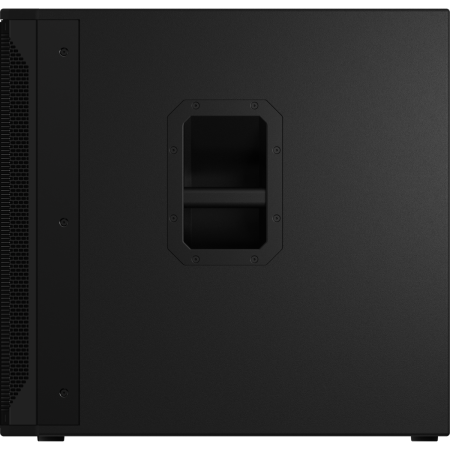

• Durable metal side handles, anti-skid feet, and M20 threaded pole mount plate

EVIVA 18SP Specifications

• Speaker Type: Powered portable subwoofer
• LF Transducer: 18 in WECA2188H woofer
• LF Magnet Material: Ferrite
• Frequency Response: 45 Hz – 150 Hz (-3 dB)
• Frequency Range: 38 Hz – 200 Hz (-10 dB)
• Max SPL: 132dB
• Amplifier Rating: 1000W
• Crossover Frequency: 100 Hz default, 150 Hz optional
• Inputs: 2 x XLR/TRS combo line inputs
• Outputs: 2 x XLR pass-through outputs
• Power Consumption: 100–240V~, 50–60 Hz, 0.6–0.4 A
• Enclosure: 15 mm plywood, internally braced, with textured paint
• Grille Material: Powder-coated steel
• Color: Black
• Dimensions: 23.50 x 20.47 x 24.41 in (597 x 520 x 620 mm)
• Shipping Dimensions: 25.59 x 23.70 x 26.54 in (650 x 602 x 674 mm)
• Weight: 67.6 lb (30.7 kg)
• Shipping Weight: 81.3 lb (36.9 kg)

Electro-Voice EVIVA 18SP (Electro-Voice EVIVA18SP)
