High-Performance 15" Active Subwoofer for Enhanced Bass
The
Electro-Voice EVOLVE70-SB-US is a powerful active subwoofer designed to deliver exceptional low-frequency performance. Featuring a 15" woofer with a 3" voice coil, this subwoofer produces deep, impactful bass with a frequency range extending to 35 Hz. With 2000W of total power and Bluetooth connectivity for remote control, the EVOLVE70-SB-US offers unmatched flexibility and performance for live events, DJs, and sound professionals.
Electro-Voice EVOLVE70-SB-US Competitive Differences
- High-powered 2000W amplifier (1000W LF + 1000W HF) ensures dynamic and impactful bass output.
- 15" woofer with a 3" voice coil for robust low-frequency reproduction.
- Frequency range down to 35 Hz for deep, extended bass performance.
- Bluetooth connectivity for wireless control via the QuickSmart Mobile App.
- Versatile inputs, including XLR/TRS combo, RCA, and AES3 for flexible connectivity.
- Lockable XLR/TRS and powerCON connections ensure reliable operation during performances.
- Compact bass-reflex design for portability and ease of use.
Electro-Voice EVOLVE70-SB-US Description
The
Electro-Voice EVOLVE70-SB-US is a professional-grade active subwoofer that delivers premium bass performance for any event or venue. Engineered with a 15" woofer and 3" voice coil, it produces rich, detailed low frequencies with an impressive maximum SPL of 133 dB. This bass-reflex line array subwoofer is designed for clarity and power, making it an essential component for sound reinforcement.
With 2000W of total power and Bluetooth connectivity, the EVOLVE70-SB-US allows for seamless integration and wireless control through the QuickSmart Mobile App. It offers multiple input options, including XLR/TRS, RCA, and AES3, accommodating diverse setups and ensuring compatibility with a wide range of audio equipment. Compact and portable, this subwoofer is equipped with side handles for easy transport and features a sleek black finish to complement any setup.
EVOLVE70-SB-US Features
- 15" woofer with a 3" voice coil for robust and precise low frequencies.
- 2000W total power capacity (1000W LF + 1000W HF) for high-output performance.
- Frequency range: 35 Hz to 20 kHz; Frequency response: 40 Hz to 18 kHz.
- Maximum SPL of 133 dB for impactful bass in large venues.
- Bluetooth connectivity for wireless control via QuickSmart Mobile App (iOS/Android).
- Multiple inputs: XLR/TRS combo, RCA, AES3, and network I/O.
- Bass-reflex enclosure design for optimized low-end performance.
- Handles on both sides for easy transport and setup.
EVOLVE70-SB-US Specifications
- Woofer: 15" with 3" voice coil.
- Total Power Capacity: 2000W (1000W LF + 1000W HF).
- Frequency Range: 35 Hz to 20 kHz; Frequency Response: 40 Hz to 18 kHz.
- Maximum SPL: 133 dB.
- Connectivity:
- 2x Combo XLR/TRS Mic/Line Inputs
- 1x Stereo RCA Line Input
- 1x XLR AES3 Line Input
- 1x XLR Line Thru
- 1x XLR Mix Output
- 1x XLR Aux/Mix Output
- 1x RJ45 Network I/O
- Bluetooth Connectivity: Yes.
- Weight: 78.3 lbs. (35.5 kg).
- Color: Black.
- Handles: One on each side for portability.
What's In The Box
- EVOLVE70-SB-US Subwoofer
- Power Cable

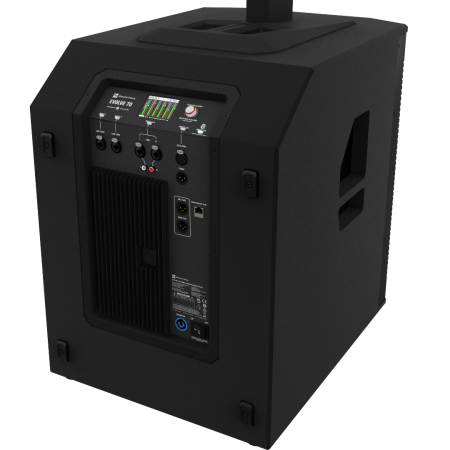

ELECTRO VOICE EVOLVE 70 SUB
(Electro-Voice Evolve 70, Sub Only)
