Electro-Voice PX1122M
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.

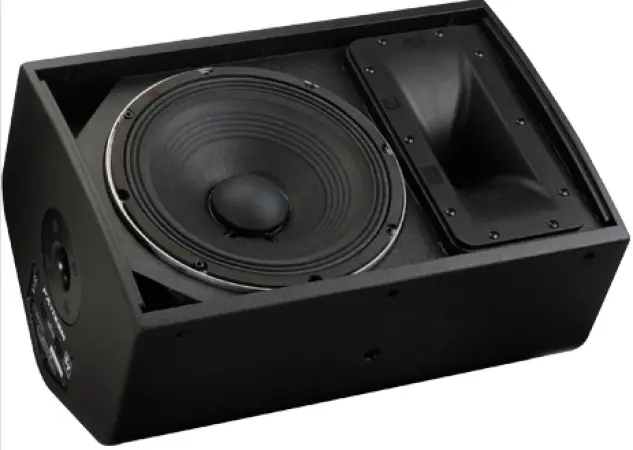

EV PX1122M (Electro-Voice PX-1122 M) - Phoenix Series
High output 12in two-way monitor
The PX1122M is an ultra-compact, low profile loudspeaker designed for stage monitor applications. Phoenix monitors are designed for extreme output and the ability to cut through the loudest stage mixes.
Designed for Club Sound, Concert Sound, and other applications.
Dual ND2 2” Voice Coil, 1” Exit Neodymium Compression Drivers
DVX3121 12” LF Transducer with Forced Air Cooling
Very High Sensitivity, 132 dB(PX1122M) / 134 dB(PX1152M) max. SPL
Ultra-Compact, Low Profile, Multipurpose Design
90° x 45° Coverage Pattern
600W Cont. (2400W Peak) Power Handling
Passive/Biamp Selectable
Integral Rigging Point for PX-SAM Strong Arm & Pole
Mount for Tripod Use
Chassis Size 304.8 mm (12")
Color Black
Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Speaker Type Wedges
Frequency Response (-3 dB) 70 - 15000 Hz
Frequency Response (-10 dB) 55 - 19000 Hz
Internal Crossover No
Internal Crossover Yes
Sensitivity 1 W/1 m 98 dB
Max. SPL/1m (calc); half space 132 dB
Coverage
(Nominal -6 dB) H° 90 °
Coverage
(Nominal -6 dB) V° 45 °
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 600 Watts
LF Transducer (1) DVX3121, 12 in (305mm) Driver
Low Frequency Power Handling (Continuous/Program/Peak) 500 Watts
High Frequency Power Handling (Continuous/Program/Peak) 80 Watts
LF Nominal Impedance 8 Ω
HF Transducer (2) ND2-16, 2 in (50mm) Diaphragm Compression Drivers
HF Nominal Impedance 8 Ω
Nominal Impedance (Passive) 8 Ω
Enclosure Material 18mm Plywood with Black EVCoat
Flying Optional
Outdoor No
Grill Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
Height 546 mm (21.5")
Width 366 mm (14.41")
Depth 305 mm (12.01")
Weight Net 23.1 kg (50.93 lbs)
