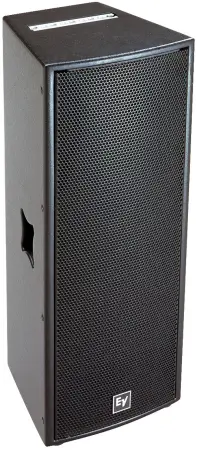

Electro-Voice PX2152
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
EV PX2152 (Electro-Voice PX-2152) - Phoenix Series
High output dual 15in two-way
The PX2152 is designed for medium-throw mains applications, side fills or drum fills.
Designed for Club Sound, Concert Sound, and other applications.
Dual ND2 2” Voice Coil, 1” Exit Neodymium Compression Drivers
Dual DVX3150 15” LF Transducers with Forced Air Cooling
High Sensitivity, 136 dB maximum SPL
60° x 45° Rotatable Coverage Pattern
1200W Continuous (4800W Peak) Power Handling
Passive/Biamp Selectable
Integral Points for eyebolts or optional Rigging Kit
Arrayable
Chassis Size 381 mm (15")
Color Black
Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Frequency Response (-3 dB) 60 - 11000 Hz
Frequency Response (-10 dB) 50 - 18000 Hz
Internal Crossover No
Internal Crossover Yes
Sensitivity 1 W/1 m 99 dB
Max. SPL/1m (calc); half space 136 dB
Coverage
(Nominal -6 dB) H° 60 °
Coverage
(Nominal -6 dB) V° 45 °
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 1200 Watts
LF Transducer (2) DVX3150, 15 in (381mm) Driver
Low Frequency Power Handling (Continuous/Program/Peak) 1000 Watts
High Frequency Power Handling (Continuous/Program/Peak) 80 Watts
LF Nominal Impedance 4 Ω
HF Transducer (2) ND2-16, 2 in (50mm) Diaphragm Compression Drivers
HF Nominal Impedance 8 Ω
Enclosure Material 18mm Plywood with Black EVCoat
Flying Optional
Outdoor No
Grill Polyester Powder Coated, 16GA Galvanized Steel, with Rotatable Logo
Height 1219 mm (47.99")
Width 457 mm (17.99")
Depth 445 mm (17.52")
Weight Net 45.6 kg (100.53 lbs)
