Electro-Voice RE3-BPCL 5H

Wireless lavalier microphone system for presentations, theater, and broadcast

Electro-Voice RE3-BPCL 5H is a complete UHF wireless bodypack microphone system designed for clear vocal reproduction and dependable performance. Operating in the 560–596 MHz range, this system is ideal for applications such as presentations, interviews, theater, and broadcast where audio clarity and flexibility are essential.

Electro-Voice RE3-BPCL 5H Competitive Differences

• Cardioid lavalier mic offers superior feedback rejection and clear voice capture
• Wide 10 MHz tuning bandwidth with 1440 selectable frequencies
• Ultrasonic sync between transmitter and receiver for easy setup
• Selectable 10 or 20 mW RF output power to adapt to different environments
• Durable all-metal bodypack and receiver housing
• Rackmountable receiver with backlit LCD for full system monitoring
• 8-hour battery life with AA batteries (alkaline or rechargeable)

Electro-Voice RE3-BPCL 5H Description

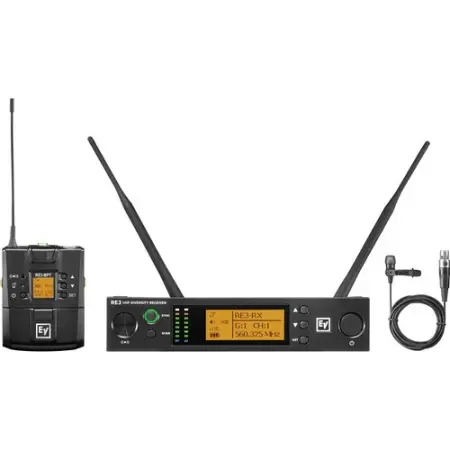

The RE3-BPCL 5H system includes the RE3-RX5H diversity receiver, RE3-BPT-5H bodypack transmitter, and RE3-ACC-CL3 cardioid lavalier microphone. Engineered for reliability, it supports up to 1440 frequencies within the 560–596 MHz band to avoid interference and maintain audio quality in demanding RF environments.

The included cardioid lavalier microphone ensures minimal background noise, enhancing speech intelligibility even in acoustically challenging spaces. The lav mic securely clips to clothing and includes a foam windscreen to reduce ambient wind or breath noise.

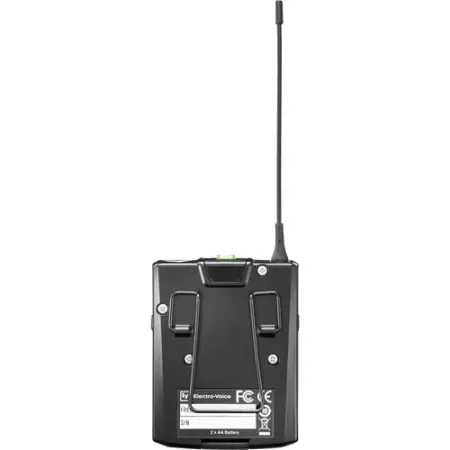

The bodypack transmitter is compact and durable, featuring an all-metal chassis and adjustable settings for sensitivity, attenuation, and RF power. It runs for up to 8 hours on two AA batteries and includes charging contacts for use with optional charging stations. The system’s backlit LCDs on both receiver and transmitter provide easy monitoring of critical settings.

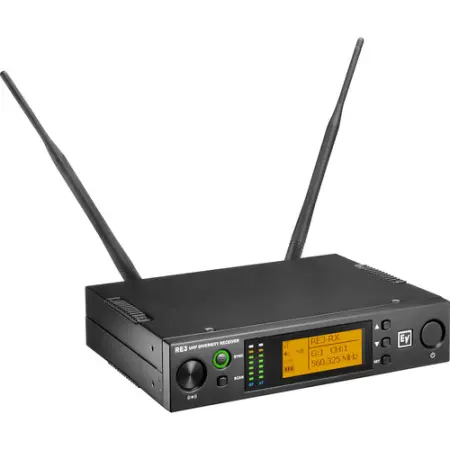

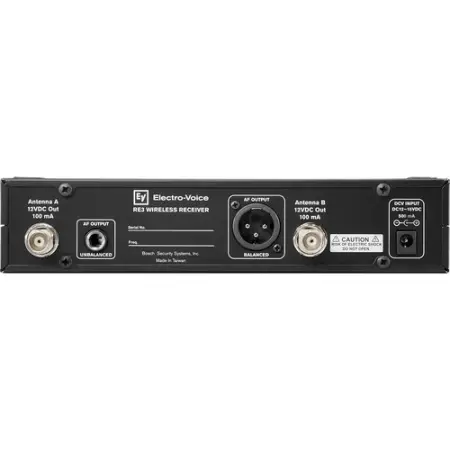

The rackmountable receiver includes both balanced XLR and unbalanced 1/4" TRS outputs for flexible integration into professional audio setups. Diversity reception ensures strong, uninterrupted signal by automatically switching between antennas to maintain optimal signal strength.

RE3-BPCL 5H Features

• Cardioid lavalier microphone with TA4F connector for focused vocal pickup
• Compact, rugged bodypack transmitter with all-metal housing
• Wireless synchronization of transmitter and receiver via ultrasonic signal
• Selectable 10/20 mW output power for short- and long-range use
• Rechargeable-ready with charging contacts for optional charging dock
• Backlit LCD screens display battery, frequency, and status information
• Rack-mountable diversity receiver for stable, professional UHF operation
• System ideal for theater, film/TV, broadcast, corporate, and education use

RE3-BPCL 5H Specifications

• Wireless Technology: Analog UHF
• Diversity Reception: Yes
• RF Frequency Band: 560 to 596 MHz
• Number of RF Channels: 1440
• Encryption: No
• Built-in Recorder: No
• Receiver Type: Tabletop, 1/2-rack mountable
• Audio Outputs: 1x XLR (balanced), 1x 1/4" TS (unbalanced)
• Antenna Type: 2x removable 1/2 wave external (rear-mounted)
• Frequency Response: 51 Hz to 16 kHz (dependent on mic)
• Power: 12–15 VDC (via included adapter)
• Bodypack Power: 2x AA batteries (alkaline or NiMH)
• Housing Material: Metal
• Receiver Dimensions: 8.2 x 1.9 x 6.1 in (20.8 x 4.8 x 15.5 cm)
• Package Weight: 3.4 lb
• Package Dimensions: 10.6 x 10.1 x 4.1 in
• UPC: 800549895255

What's In The Box

• RE3-RX5H Diversity Receiver
• RE3-BPT-5H Bodypack Transmitter
• RE3-ACC-CL3 Cardioid Lavalier Microphone with TA4F Connector
• 2x Removable Antennas
• Mounting Hardware
• Power Adapter
• Clothing Clip
• Foam Windscreen
• 2x AA Batteries

Electro Voice RE3-BPCL5H (Electro-Voice RE3-BPCL (5H: 560–596 MHz))
