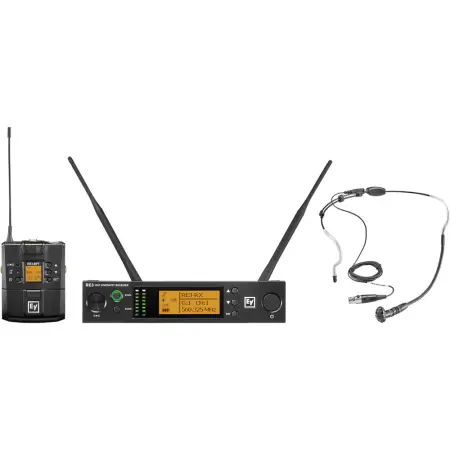

Electro-Voice RE3-BPHW-6M

Achieve solid performance, dependability, and clear speech reproduction with the Electro-Voice RE3-BPHW (Band 6M: 653 to 663 MHz) UHF bodypack wireless system. Comprised of a rack-mountable diversity receiver, a compact bodypack transmitter, and a supercardioid headworn microphone, this wireless set is well suited for a variety of applications such as theater, broadcast, presentations, houses of worship, concert sound, and more. The mic's supercardioid polar pattern delivers enhanced off-axis rejection and high gain before feedback. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-BPHW minimizes setup time and maximizes workflow efficiency.


Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity, attenuation, and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.

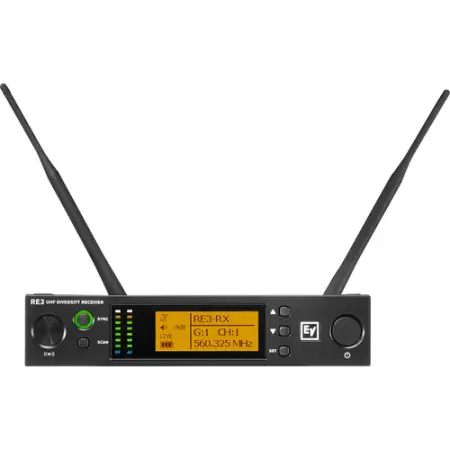

Electro-Voice RE3-RX6M Diversity Wireless Receiver (653 to 663 MHz)
The RE3-RX6M Diversity Wireless Receiver from Electro-Voice is a UHF wireless diversity receiver featuring clear frequency scanning, wireless synchronization to transmitter, balanced XLR outputs, and unbalanced 1/4" TRS outputs. It can be used when paired with any RE3 HHT handheld capsule or bodypack transmitter and microphone (sold separately) to deliver rock-solid system performance for presentation or interview audio applications.

The RE3-RX is rack-mountable, and the 1/2 space diversity receiver is designed to function as the control center for your wireless setup. Using clear frequency scan and sync functions, the receiver offers control settings that synchronize to a mated transmitter. Diversity reception technology minimizes the chance of signal dropouts and provides two different antenna locations. The antennas switch moment by moment based on signal strength and stability, which insures solid performance.

Additionally, the easy-to-read LCD display provides vivid viewing of all menus and operating parameters.


UPC: 800549895262

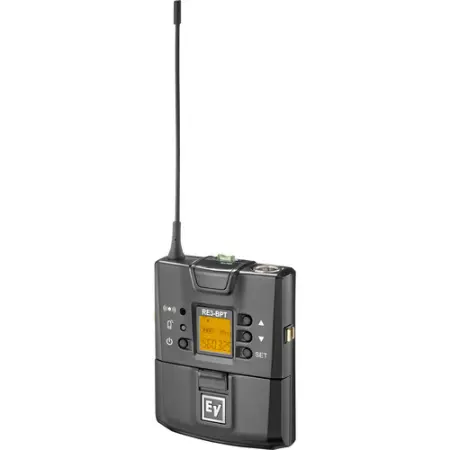

Electro-Voice RE3-BPT-6M Bodypack Transmitter (653 to 663 MHz)
The RE3-BPT-6M Bodypack Transmitter from Electro-Voice is a small, lightweight, easily worn and concealed, robust UHF bodypack transmitter. It can be used when paired with a lavalier microphone and a receiver (sold separately) to capture audio for a wide variety of professional presentation and performance applications.

The bodypack transmitter's all-metal body is durable and operates on two AA alkaline or rechargeable NiMH cells. Built with a 10 MHz tuning bandwidth, it offers generous frequency tuning options within the North American Duplex Gap. The selectable 10 or 20mW output power assists in overcoming the challenges of both long, or short transmission ranges.

Furthermore, the ultrasonic sync function makes for a simple system setup by syncing the transmitter to the receiver's frequency tuning and other functional data. Also, recharging contacts offer use with an optional BC2 charging station (sold separately) allowing NiMH rechargeable cells to be charged without removal from the bodypack.


UPC: 800549895217
Electro-Voice RE3-ACC-HW3 Headworn Microphone with TA4F Connector
The RE3-ACC-HW3 Headworn Microphone with TA4F Connector from Electro-Voice is a general-purpose condenser supercardioid headworn vocal microphone, which is ideal for presentations, vocal performances, and athletic instruction.

The RE4-ACC-HW3 microphone is designed for comfort and its sonic signature is crisp and natural. The adjustable headband is comfortable to wear, solidly built, and includes a flexible gooseneck boom and shock-mounted microphone element, which makes it an ideal solution for performances and presentations.

In addition, the detachable cable securely connects to the headband with a threaded 2.5mm plug, and the detachable design helps avoid cable damage during storage and transportation. The 4-pin TA4F mini-XLR plug is compatible with all current Electro-Voice bodypack transmitters as well as many other brands.

FEATURES:

For Theater, Broadcast & Concert Sound
Rack-Mountable Diversity Receiver
Compact Bodypack Transmitter
Supercardioid Headworn Microphone
Adjustable Sensitivity and Attenuation
Control Transmitter via Receiver
8-Hour Operating Time via AA Batteries
Informative Backlit LCD Screens
Transmitter Battery Status on Receiver
Selectable 10 or 20 mW RF Output Power

SPECIFICATIONS:

Wireless Technology
Digital UHF
Diversity
Antenna Diversity
Receiver Type
Tabletop
Number of Audio Channels
1
Audio I/O
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output
Power Requirements
AC/DC Power Adapter
Number of RF Channel Frequencies
400
Diversity
Antenna Diversity
RF Frequency Band
653 to 663 MHz
RF Bandwidth
Up to 10 MHz
Modulation
Wideband FM
Receiver
Receiver Type
Tabletop
Mounting Options
Rackmount (with Included Hardware)
Rackmount Size
1 RU (1/2 Rack)
Antenna
2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage
12 to 15 VDC
Number of Audio Channels
1
Audio I/O
1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output
Frequency Response
51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity
81 dBm
RF Output Power
Up to 20 mW (Max)
Power Requirements
AC/DC Power Adapter
AC/DC Power Adapter
12 to 15 VDC (Included)
Display & Indicators
Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing
Metal
Dimensions
8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)
Electro-Voice RE3-BPT-6M Bodypack Transmitter (653 To 663 MHz) Specs
Key Specs
Wireless Technology
Digital UHF
Transmitter Type
Bodypack
Audio I/O
1 x TA4/Mini-XLR 4-Pin Male Input
RF Frequency Band
653 to 663 MHz
RF Bandwidth
10 MHz
Modulation
Wideband FM
Transmitter
Transmitter Type
Bodypack
RF Output Power
10 / 20 mW (Switchable)
Audio I/O
1 x TA4/Mini-XLR 4-Pin Male Input
Muting
Mute Switch
Sync Method
IR
Antenna
1 x Flexible Whip, Fixed (Beltpack)
Power Requirements
Battery
Battery Type
2 x AA (Included, Replaceable)
Display & Indicators
1 x Backlit LED (Channel, Group, Mute)
Housing
Metal
Dimensions
2.5 x 3.2 x 0.9" / 6.3 x 8.1 x 2.3 cm (without Antennas)
Weight
6.1 oz / 172.9 g (with Antenna)
Electro-Voice RE3-ACC-HW3 Headworn Microphone With TA4F Connector Specs
Key Specs
Form Factor
Headworn
Polar Pattern
Supercardioid
Frequency Range
30 Hz to 18 kHz
Maximum SPL
130 dB SPL Peak
Output Connector
1 x TA4F/Mini-XLR 4-Pin Female
Power Sources
Plug-In Power
Color
Black
Microphone
Form Factor
Headworn
Wearing Style
Over-Ear (Double/Neckband)
Sound Field
Mono
Element Type
Condenser
Polar Pattern
Supercardioid
Performance
Frequency Range
30 Hz to 18 kHz
Maximum SPL
130 dB SPL Peak
Sensitivity
0.5 mV/Pa (Open Circuit Voltage, 1 kHz)
Connectivity
Output Connector
1 x TA4F/Mini-XLR 4-Pin Female
Cable Length
45.28" / 115.01 cm
Power
Power Sources
Plug-In Power
Operating Voltage
3 to 9 V
Physical
Color
Black
Dimensions
L: 5.83" / L: 14.81 cm (Boom)
Weight
1.35 oz / 0.04 kg
Packaging Info
Package Weight
0.355 lb
Box Dimensions (LxWxH)
7.6 x 5.75 x 2.6"

Electro Voice RE3-BPHW-6M (653 to 663 MHz) (Electro-Voice F.01U.354.238)
